$ 24,999.00
/
Los gastos de envío se calculan en la pantalla de pagos.
Proveedor: CHCNAV
  • Stock bajo - quedan 1 artículo
  • Pedido pendiente, envío pronto
Toggle HubSpot Form

Descripción general

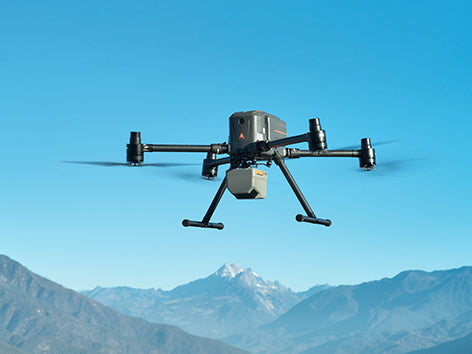

The CHCNAV X500 is a robust, carbon-fiber quadcopter tailored for professional aerial operations. It integrates mission-critical systems—high-precision positioning, collision avoidance, redundant flight control, and long-range video—into a single rugged platform. SDK support and payload flexibility ensure the X500 is adaptable for future upgrades, making it an ideal choice for demanding tasks in surveying, urban monitoring, disaster relief, and more.

Key Highlights

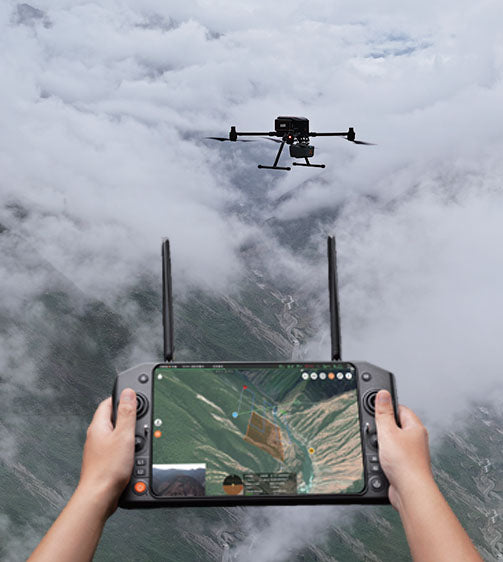

• 58-min flight time with up to 5 kg payload • IP55-rated weather resistance; flies in 12 m/s winds • Dual GNSS + triple IMU for safe, reliable performance • Millimeter-wave radar and vSLAM for precision landings • 20 km HD video link via 10.1″ touchscreen controller • Hot-swappable B10 batteries with rapid charging • SmartGo software supports all mission types, including BVLOS • Compatible with CHCNAV payloads and third-party systems via open SDK
Learn More +

Specifications:

Airframe & Payload

  • Folded: 485 × 410 × 450 mm | Deployed: 770 × 804 × 450 mm

  • Empty weight: ~4.4 kg (excluding batteries); ~8.9 kg with batteries

  • Maximum takeoff weight: 13.9 kg

  • Payload capacity: 5 kg

  • Hover accuracy: ±1.5 m (GNSS) / ±0.1 m (RTK)

Flight Performance

  • Maximum speed: 23 m/s

  • Ascent speed: 8 m/s | Descent speed: 6 m/s

  • Range: 58 min flight time; ~52 min with 2 kg payload; ~40 min with 4 kg payload

  • Wind resistance: up to 12 m/s

  • Operating temperature: –20 °C to +50 °C

Navigation & Sensors

  • Dual GNSS (GPS, GLONASS, BeiDou, Galileo) with RTK precision (centimeter-level accuracy)

  • Millimeter-wave radar for obstacle detection up to 80 m

  • vSLAM for precision landing (under 10 cm deviation)

Battery & Controller

  • B10 battery: 47 V, 10 Ah (~470 Wh), self-heating below 11 °C, auto shut-offs

  • Remote controller: 10.1″ 1920×1200 touchscreen, ~1,000 nits brightness, ~5 h battery life, 20 km video range
