Zenmuse H30

What is the Zenmuse H30?

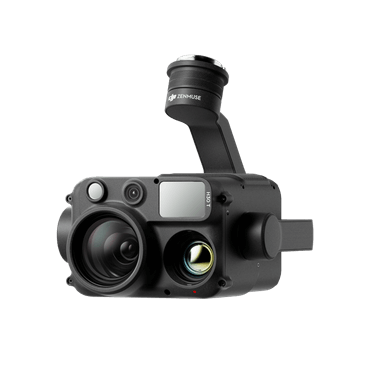

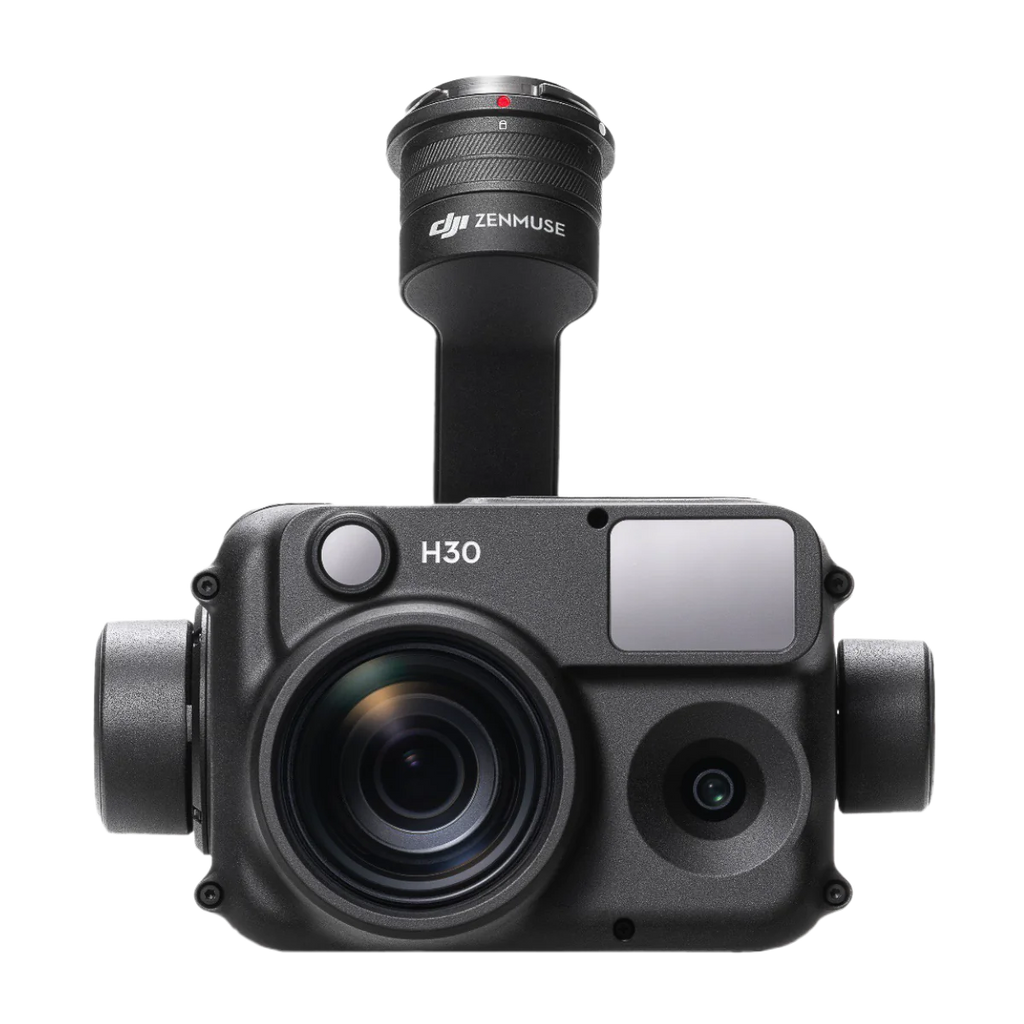

The Zenmuse H30 is not a single camera but a high-performance, all-in-one multi-sensor payload designed and manufactured by DJI for its enterprise-grade Matrice 350 RTK and Matrice 30 series drones. It's built for critical missions where professionals need to see more, see clearer, and gather data in challenging conditions, day or night.

Think of it as a "Swiss Army knife" of drone cameras, combining several powerful imaging tools into a single, stabilized unit.

Key Features and Sensors

The H30's main strength is its integration of multiple sensors:

1. Wide Camera: A ½-inch CMOS sensor with 41 MP resolution for capturing extremely high-definition, wide-angle overview images in daylight.

2. Zoom Camera: A powerful 400× hybrid zoom system. This includes:

   • Optical Zoom: 20-200× magnification, providing lossless, clear images even at great distances.

   • Digital Zoom: Extends up to 400×, allowing operators to identify objects from a very safe distance.

3. Radiometric Thermal Camera: A 640×512 resolution thermal sensor that can detect heat signatures. The key word is "radiometric" – unlike standard thermal cameras, it can measure the temperature of every pixel in the image, not just show a heat picture. This is crucial for inspections.

4. Laser Rangefinder (LRF): This is a critical tool that measures the exact distance to a target up to 3 km away. It can also provide the precise GPS coordinates of that target, which is invaluable for search and rescue, security, and mapping.

Additional Key Features:

• High-Performance Stabilization: A 3-axis gimbal keeps all sensors rock-steady, even in high winds or during drone movement, ensuring clear images and video.

• Smart Features: Includes AI-powered functions like:

  • AI Spot-Check: The drone can automatically return to and frame the exact same position for repeatable inspections.

  • PinPoint: Allows operators to mark a target and have the drone keep it centered in the frame automatically, even if the drone moves.

  • Temperature Alarm: Automatically alerts the operator if a measured temperature exceeds a predefined threshold.

Primary Use Cases and Applications

The H30 is designed for missions where failure is not an option. Its applications include:

• Search and Rescue (SAR): The thermal camera can find missing persons at night or in dense foliage, the zoom can identify them from a distance, and the LRF can instantly share their coordinates with the rescue team.

• Firefighting: Thermal imaging can see through smoke to identify hotspots, locate victims, and assess the structural integrity of a building. The zoom can assess damage from a safe distance.

• Industrial Inspections: The radiometric thermal camera is perfect for inspecting solar panels, electrical substations, and pipelines for overheating components (a sign of failure). The zoom can visually identify tiny cracks or corrosion.

• Law Enforcement & Security: Provides powerful situational awareness for perimeter monitoring, crowd management, and evidence gathering from a safe, remote distance.

• Energy & Infrastructure: Inspecting power lines, wind turbines, and cell towers efficiently and safely without putting workers at risk.

Comparison with the Sony ILX-LR1

It's helpful to contrast the H30 with the Sony ILX-LR1 from the previous question, as they represent two completely different approaches to professional drone imaging:

Summary

The Zenmuse H30 is a flagship, integrated imaging system that provides unparalleled real-time situational awareness for public safety and critical infrastructure teams. It's a force multiplier that allows a single drone operator to gather multiple types of crucial data—visual, thermal, and metric—from a single, safe location. It is the ultimate tool for observation, inspection, and measurement across a wide range of high-stakes industries.
