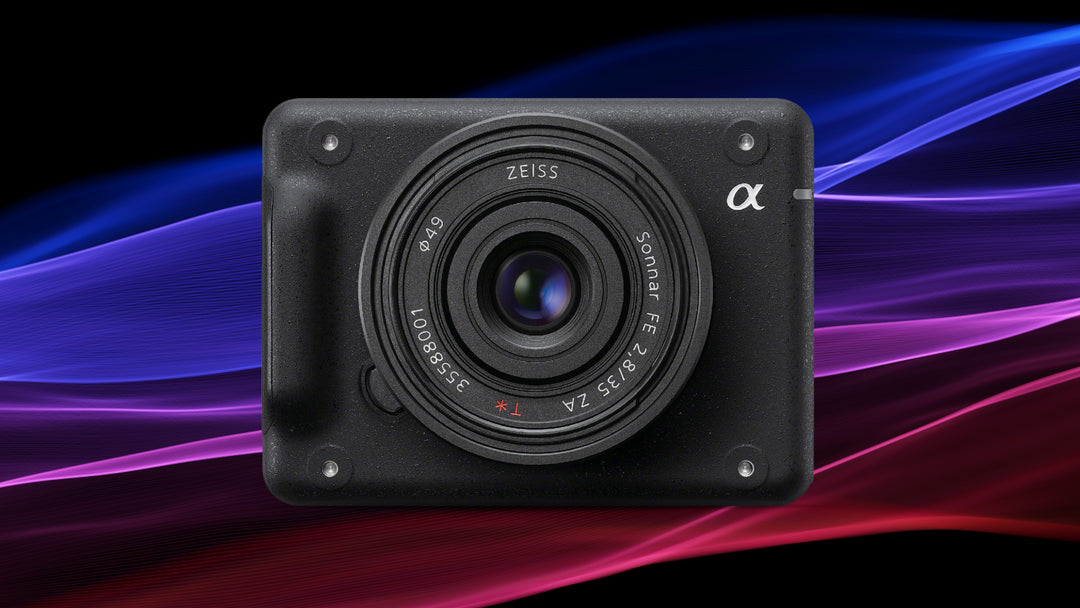

Sony ILX-LR1

The Sony ILX-LR1 is a highly specialized, compact, and lightweight interchangeable-lens camera designed primarily for industrial and commercial applications, such as integration into drones (UAVs), robotics, and other automated systems. It is not a consumer camera for general photography or videography.

In simple terms, it's the "brains" of a high-end camera (the sensor and processor) packaged without the body, screen, or buttons you'd find on a standard camera, allowing it to be built into other machines.

Key Features and Specifications

• Sensor: A 35mm full-frame 61.0-megapixel Exmor R CMOS sensor (the same as in the acclaimed Sony Alpha 7R IV). This is its most significant feature, providing extremely high resolution.

• Lens Mount: Sony E-mount, giving it access to a vast library of high-quality Sony and third-party lenses.

• Design Philosophy: Modular and Lightweight.

  • It lacks an LCD screen, viewfinder, physical controls, or a built-in battery. This drastically reduces its size and weight (~243g for the body only).

  • It is controlled entirely via a LAN cable (RJ-45 connector) using a protocol called GigE Vision, which is an industrial standard for reliable, long-distance, and fast communication with machines and computers.

  • It can also be powered over the same LAN connection using Power over Ethernet (PoE+).

• Image Quality: Capable of capturing stills at up to 61MP and videos at up to 4K 30p, leveraging Sony's excellent image processing for detail and dynamic range.

• Software Control: Operated via a Software Development Kit (SDK) provided by Sony, allowing developers to integrate its control seamlessly into their own applications and systems.

Primary Use Cases and Applications

The ILX-LR1 is built for specific professional tasks where image quality and integration are paramount:

1. Aerial Mapping and Surveying (Drone Photography): This is its primary market. The high 61MP resolution allows drones to cover large areas efficiently while capturing incredible detail from high altitudes. This is used for creating highly accurate 2D maps and 3D models for construction, agriculture, mining, archaeology, and land management.

2. Industrial Inspection: Mounted on drones, robots, or fixed rigs to inspect critical infrastructure like wind turbines, cell towers, power lines, bridges, and pipelines. The high resolution can reveal tiny cracks or defects that lower-resolution cameras would miss.

3. Robotics and Automation: Integrated into autonomous mobile robots (AMRs) or manufacturing systems for tasks like quality control, measurement, and guidance, where a reliable, standardized (GigE Vision) connection is crucial.

4. Research and Development: Used in scientific applications, R&D labs, and any scenario where a high-resolution, programmable camera needs to be embedded into a custom apparatus.

Who is it for?

• Drone Manufacturers (e.g., companies like DJI, senseFly, or custom drone builders) who want to offer a premium mapping solution.

• System Integrators and engineers building specialized imaging systems for industrial or scientific purposes.

• Large-scale surveying, construction, and agricultural companies with in-house drone operations.

• It is NOT for hobbyist drone pilots, photographers, or videographers. Its lack of a user interface and requirement for specialized knowledge and integration make it unsuitable for casual use.

Comparison to a Standard Camera

Summary

The Sony ILX-LR1 is a niche, powerful tool that takes the exceptional image quality of Sony's best full-frame sensor and repackages it for the industrial world. Its value lies in its high resolution, small form factor, and standardized industrial connectivity (GigE Vision/PoE+), making it an ideal solution for professional aerial mapping, inspection, and automated machine vision systems.
