Integrated Systems / Echo Sounder

Measure water depth without putting a crew on the water

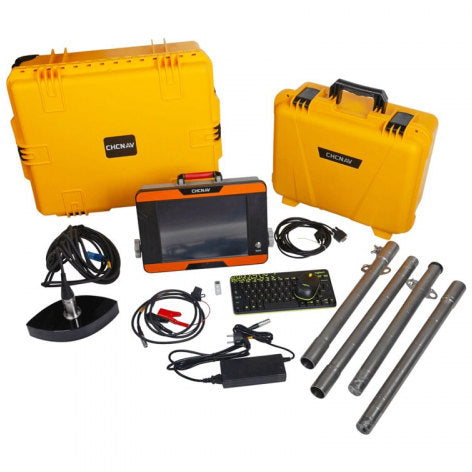

EchoLogger echo sounders for DJI Matrice drones, a CHCNAV echo sounder package and SPH Engineering software for bathymetry of rivers, lakes, ponds and harbors.

Stay on shoreSurvey water without launching a boat
Single or dual frequencyEchoLogger options for different sites
Acid-resistant optionPTFE sensor for harsh water
Depth mapsSoundings logged with position

How it works

How drone bathymetry works

Fly over the water
01Aircraft

Fly over the water

A DJI Matrice drone carries the echo sounder out over the water and keeps it at the surface along survey lines.

Send sound pulses
02Sensor

Send sound pulses

The echo sounder sends sound down and times the echo from the bottom. With the speed of sound in water known, it calculates depth.

Bathymetric data
03Software & deliverables

Bathymetric data

SkyHub logs depth with GPS position and UgCS plans the route, giving you data for depth maps and planning.

Applications

Where teams measure depth

01

Lakes and ponds

Bathymetry of lakes, ponds and lagoons.

02

Harbors and waterways

Check depths in harbors, canals and rivers.

03

Dredging

Monitor before and after dredging work.

04

Construction planning

Get depth data for projects near or in water.

05

Sediment monitoring

Track sediment build-up over time.

06

Tailings facilities

Support monitoring of tailings storage ponds.

Since 2014Maverick has been putting unmanned systems in the hands of working teams for over a decade.
Built as a systemWe help match the sensor, aircraft, mounts and software so the pieces work together.
One partnerDrones, payloads, software and support from one team, from the first question to the first flight.

Start surveying water from the air

Tell us about your sites and we'll help you choose the echo sounder, drone and software.

More about Echo Sounder

How it works

An echo sounder is a device to measure the depth of water (or any liquid). An echo sounder sends out sound waves and measures how long it takes for the echo of the sound to come back. The speed of sound in the water is known so that the depth can be calculated. Echo sounders are crucial tools for environmental monitoring and mapping underwater terrain.

Scenes shown are illustrations.
