Chasing Sonar Connection Cable Assembly for M2 PRO MAX

Chasing Sonar Connection Cable Assembly for M2 PRO MAX

This is a special order item — not currently in stock.
Special order items are reserved through our sales team. Submit the form below and a Maverick representative will reach out to confirm availability, lead time, and next steps to secure your unit. A deposit may be required to begin the order. Prefer to talk now? Call us at (612) 808-9838.
Lead time varies by manufacturer. A deposit may apply and will be credited toward your final invoice.

Sonar Connection Cable Assembly (MAX) — Overview

The CHASING Sonar Connection Cable Assembly is the factory-specified wiring harness for connecting sonar payloads to the M2 MAX ROV. Built to CHASING's engineering tolerances, it delivers clean signal transmission in demanding subsea environments — from shallow inspection dives to deep-water survey operations.

The cable features a multi-conductor twisted-pair design with fillers removed and pre-stripped 1 mm ends, ready for direct termination. The jacket OD ranges from 3.7 mm to 8.8 mm, accommodating the M2 MAX payload interface without modification.

Precision-Terminated for the M2 MAX
Every conductor is pre-stripped to 1 mm and fillers are removed at the factory, eliminating field prep and ensuring consistent termination quality across every unit. Twisted-pair construction suppresses EMI interference common in ROV motor and thruster environments.

Twisted-Pair Signal Integrity

Orange/White-Orange and Green/White-Green twisted pairs maintain differential signal integrity across the full 43 cm cable run, reducing noise pickup from adjacent power conductors and thruster wiring.

Field-Ready Construction

Pre-stripped 1 mm conductor ends and a 15 cm exposed section mean this cable is ready to install straight out of the box. No additional stripping, tinning, or preparation required before deployment.

OEM CHASING Specification

Manufactured to CHASING's exact M2 MAX sonar interface specification. Ensures full compatibility with CHASING-approved sonar payloads and maintains warranty compliance for the M2 MAX ROV system.

Learn More +

Purpose-Built Sonar Interface Cable for the CHASING M2 MAX ROV

The CHASING Sonar Connection Cable Assembly is the dedicated wiring harness engineered to integrate sonar payloads with the M2 MAX underwater ROV. Precision-terminated and field-ready, this cable ensures a reliable, low-noise signal path between the vehicle and sonar sensor — critical for accurate depth mapping, obstacle detection, and subsea inspection workflows.

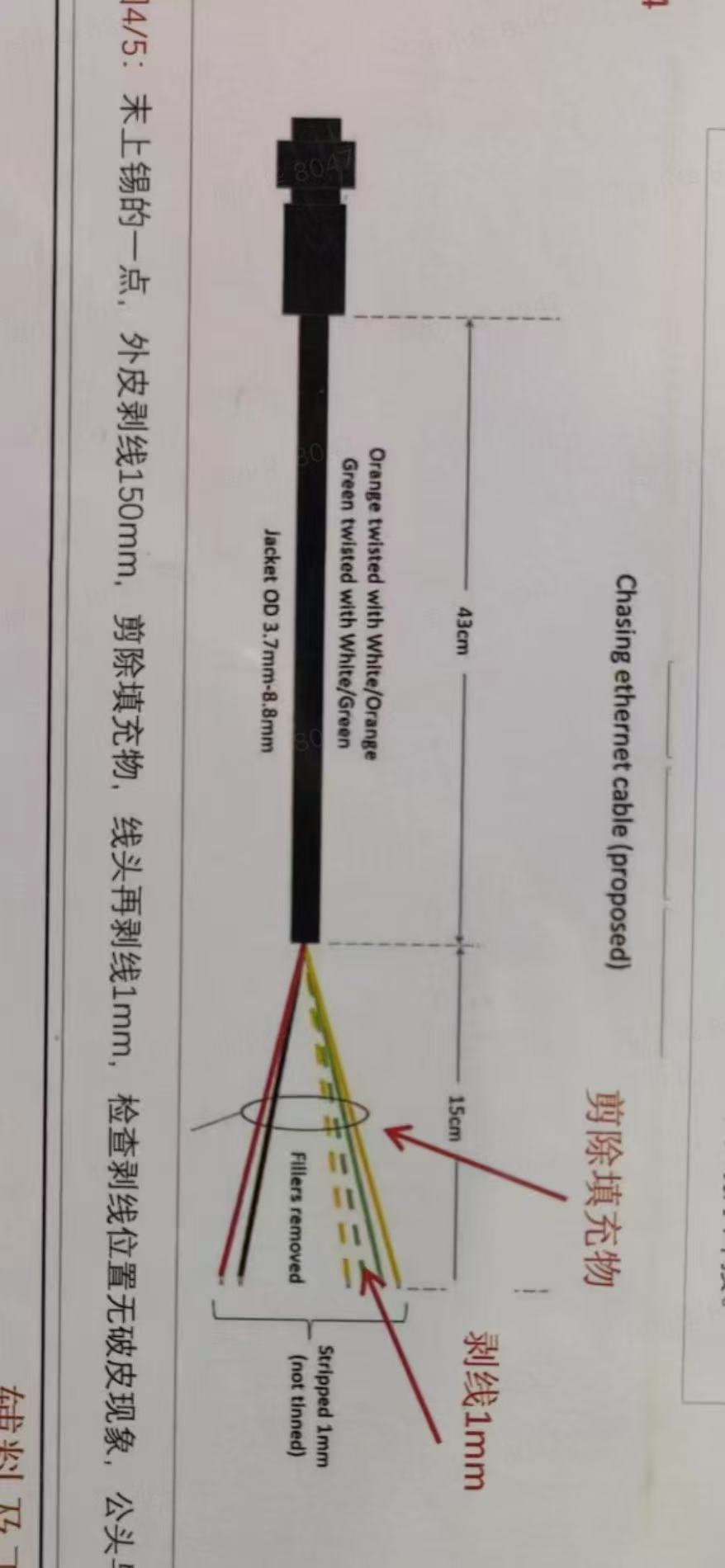

Cable Specifications

  • Jacket OD: 3.7 mm – 8.8 mm
  • Overall length: 43 cm
  • Stripped section: 15 cm (fillers removed)
  • Conductor strip length: 1 mm (not tinned)
  • Conductor pairs: Orange twisted with White/Orange; Green twisted with White/Green
  • SKU: 30.80.100.0777

Key Features

  • Designed specifically for CHASING M2 MAX sonar integration
  • Twisted-pair conductors minimize electromagnetic interference in subsea environments
  • Pre-stripped and ready for direct termination — no field prep required
  • Compact form factor fits within the M2 MAX payload bay without routing conflicts
  • Durable jacket rated for continuous underwater deployment

Compatible With

  • CHASING M2 MAX ROV
  • CHASING-compatible sonar payloads
