Overview
4cm Vertical Accuracy. 2.5 km² Per Flight. One Payload.
By combining GNSS positioning with a self-developed high-accuracy IMU, the Zenmuse L2 achieves 4cm vertical and 5cm horizontal accuracy — verified under controlled field conditions at 150m altitude with DJI Terra's Optimize Point Cloud Accuracy enabled. At 15 m/s with 20% side overlap, a single flight covers up to 2.5 km² of geospatial and RGB data simultaneously. No secondary passes. No separate RGB mission. One flight, complete dataset.
Learn More +
Integrated LiDAR. 4cm Vertical Accuracy. One Flight.
The DJI Zenmuse L2 is DJI's most advanced aerial LiDAR payload — integrating a frame LiDAR sensor, a high-accuracy self-developed IMU, and a 4/3 CMOS RGB mapping camera into a single turnkey system. Paired with the DJI Matrice 350 RTK and DJI Terra, the L2 delivers 4cm vertical and 5cm horizontal accuracy across survey areas up to 2.5 km² in a single flight — with on-site point cloud preview, playback, and processing available immediately after landing.
Key Specifications
- Vertical Accuracy — 4cm (with DJI Terra Optimize Point Cloud Accuracy enabled)
- Horizontal Accuracy — 5cm
- Coverage — Up to 2.5 km² per flight at 150m altitude, 15 m/s, 20% side overlap
- Sensors — Frame LiDAR + high-accuracy IMU + 4/3 CMOS RGB mapping camera
- Point Cloud Preview — On-site preview, playback, and processing via DJI Terra
- Task Quality Reports — Automatically generated by DJI Terra post-flight
- Compatible Platform — DJI Matrice 350 RTK (primary); Matrice 300 RTK with DJI RC Plus
- Post-Processing — DJI Terra one-stop workflow with Optimize Point Cloud Accuracy
Applications

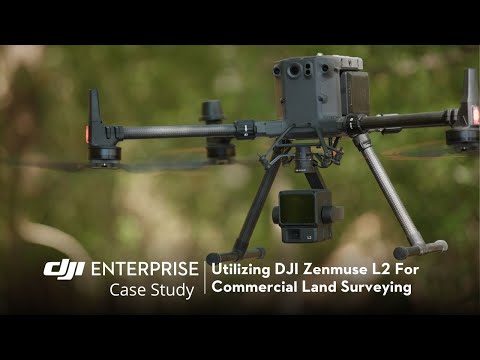

- Topographic surveying and mapping

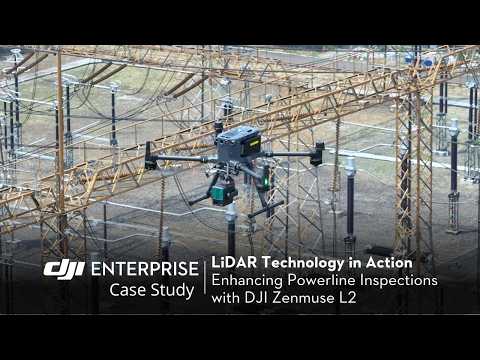

- Corridor and infrastructure inspection
- Forestry and vegetation analysis
- Construction progress monitoring
- Mining and quarry volumetrics
In the Box
- DJI Zenmuse L2 × 1
