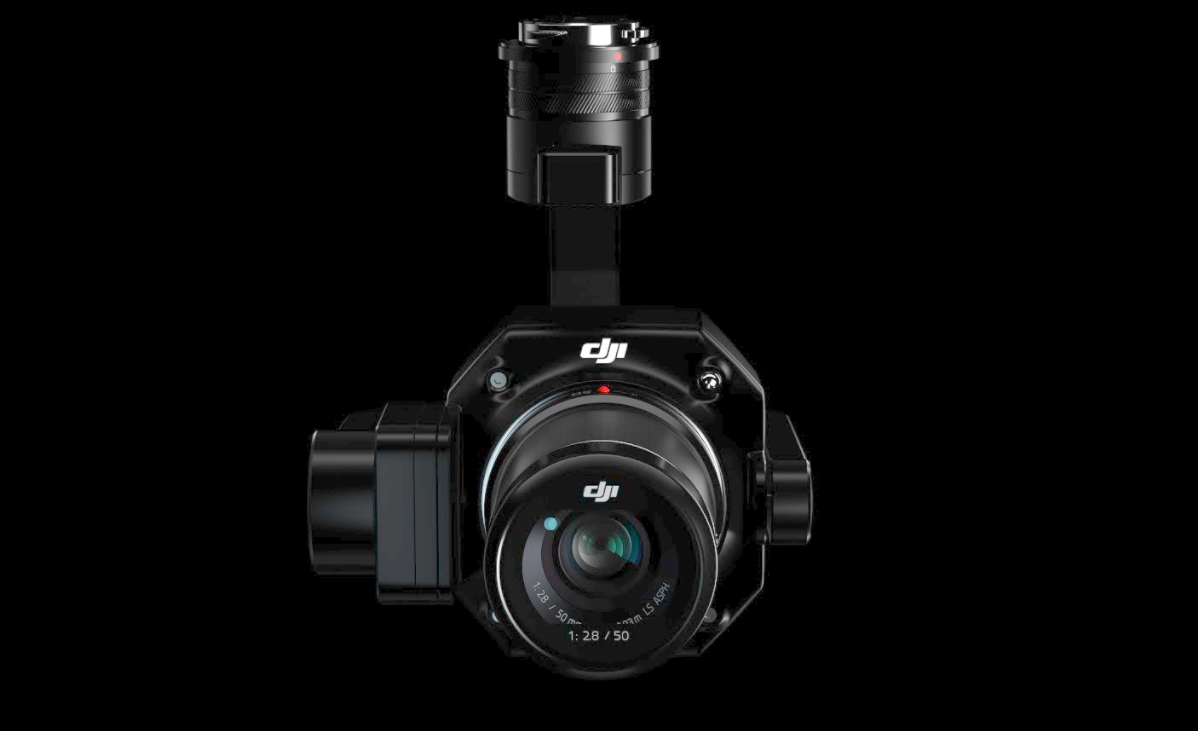

DJI Zenmuse P1 Full-Frame Photogrammetry Camera

45MP Full-Frame Sensor. Global Mechanical Shutter. 3 km² Per Flight. The DJI Zenmuse P1.

The DJI Zenmuse P1 is a full-frame photogrammetry camera engineered for enterprise aerial surveying at scale. Integrating a 45MP full-frame sensor with a global mechanical shutter, 3-axis stabilized gimbal, and the all-new TimeSync 2.0 system — which synchronizes the camera, flight controller, RTK module, and gimbal at the microsecond level — the P1 delivers centimeter-level accuracy without ground control points. Compatible with 24mm, 35mm, and 50mm interchangeable fixed-focus lenses and featuring Smart Oblique Capture, the Zenmuse P1 produces precise 2D maps, 3D models, and detailed oblique datasets in a single flight covering up to 3 km².

Key Specifications

• 45MP Full-Frame Sensor — 4.4μm pixel size with low-noise, high-sensitivity imaging for extended daily operational windows and sharp detail at altitude
• Global Mechanical Shutter — 1/2000s shutter speed eliminates rolling shutter distortion for accurate data capture at high flight speeds
• GCP-Free Accuracy — 3 cm horizontal / 5 cm vertical accuracy without ground control points when paired with RTK positioning
• 3 km² Single-Flight Coverage — High-efficiency capture at 0.7s photo intervals enables large-area survey completion in a single sortie
• TimeSync 2.0 — Microsecond-level synchronization across camera, flight controller, RTK module, and gimbal for precise position and orientation compensation
• 3-Axis Stabilized Gimbal — Maintains sensor stability across all flight attitudes for consistent image quality throughout the mission
• Smart Oblique Capture — Automated oblique imaging for complete 3D model generation without multiple dedicated flight passes
• Interchangeable Fixed-Focus Lenses — Compatible with 24mm, 35mm, and 50mm lenses for flexible GSD and coverage configuration

Full Specifications

In the Box

• DJI Zenmuse P1 camera × 1
• Gimbal protector × 1
