Radar Systems 50MHz Dipole Antenna Set for Zond Aero LF GPR
Radar Systems 50MHz Dipole Antenna Set for Zond Aero LF GPR
Radar Systems 50MHz Dipole Antenna Set for Zond Aero LF GPR
Radar Systems 50MHz Dipole Antenna Set for Zond Aero LF GPR

Radar Systems 50MHz Dipole Antenna Set for Zond Aero LF GPR

IS-ACCS

Manufacturer doesn't allow for price to be posted. Please request a quote:

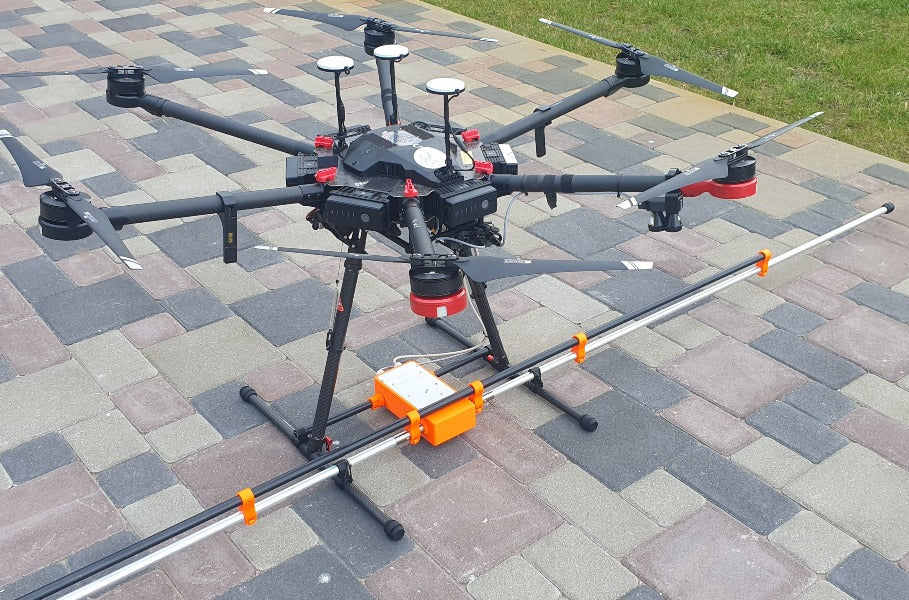

The Radar Systems 50MHz Dipole Antenna Set is the purpose-built low-frequency antenna solution for the Zond Aero LF drone GPR system. Includes 2× 1.5m 50MHz dipoles, full mounting hardware, and custom non-conductive plastic legs for the DJI M600 Pro. Enables deep-penetration aerial GPR surveys for geological mapping, utility detection, and subsurface infrastructure assessment. Contact Maverick for pricing.

50MHz Deep-Penetration GPR. Drone-Mounted. Field-Ready.
The 50MHz dipole antenna set delivers the low-frequency penetration depth required for geological mapping, deep utility detection, void identification, and subsurface infrastructure assessment from drone platforms. Paired with the Zond Aero LF GPR system, the 50MHz antenna enables aerial surveys of targets that higher-frequency systems cannot reach — covering more ground, faster, with the safety and efficiency of drone-based data collection.

Complete Mounting Hardware Included. The set includes a plastic mounting rod, three Type 1 clamps (rod to Aero LF), five Type 2 clamps (rod to dipole), and plastic dipole caps — providing everything needed to mount the 50MHz antenna array to the Zond Aero LF system without additional hardware sourcing.

Custom Non-Conductive Legs for DJI M600 Pro. GPR operation requires non-conductive drone landing gear — standard carbon-fiber legs are conductive and must be replaced. This set includes custom plastic skids for the DJI M600 Pro. For other drone platforms, custom legs without M600 attachments are available on request.

Aerial GPR for Deep Subsurface Applications. The Zond Aero LF + 50MHz antenna combination enables drone-based GPR surveys for geological mapping, deep utility and void detection, permafrost assessment, and subsurface infrastructure inspection — covering large areas efficiently and safely from the air.

Learn More +

50MHz Drone GPR Antenna. Purpose-Built for the Zond Aero LF.

The Radar Systems 50MHz Dipole Antenna Set is the purpose-built low-frequency antenna solution for the Zond Aero LF drone-mounted ground penetrating radar system. Delivering deep subsurface penetration at 50MHz, this antenna set enables aerial GPR surveys for geological mapping, utility detection, void identification, and infrastructure assessment from drone platforms.

The complete set includes all mounting hardware and custom non-conductive plastic legs for the DJI M600 Pro — addressing the critical requirement that drone landing gear be manufactured from non-conductive materials for GPR operation. For other drone platforms, custom legs without M600 attachments are available on request.

What’s Included

  • 2× 50MHz dipole antennas (1.5m each) for Zond Aero LF
  • 1× Plastic mounting rod
  • 3× Clamp Type 1 (rod to Aero LF)
  • 5× Clamp Type 2 (rod to dipole)
  • 2× Plastic caps for dipoles
  • 2× Custom non-conductive legs (skids) for DJI M600 Pro

Important: Drone Leg Requirements

GPR operation requires non-conductive drone landing gear. Standard carbon-fiber legs are conductive and must be replaced. This set includes custom plastic legs for the DJI M600 Pro. For other drone platforms, custom legs without M600 attachments are available — contact Maverick for details.

Compatible With

Radar Systems Zond Aero LF GPR  |  DJI M600 Pro (custom legs included)  |  Other platforms (contact for leg options)

Contact Maverick for pricing and configuration. RFQ available.
