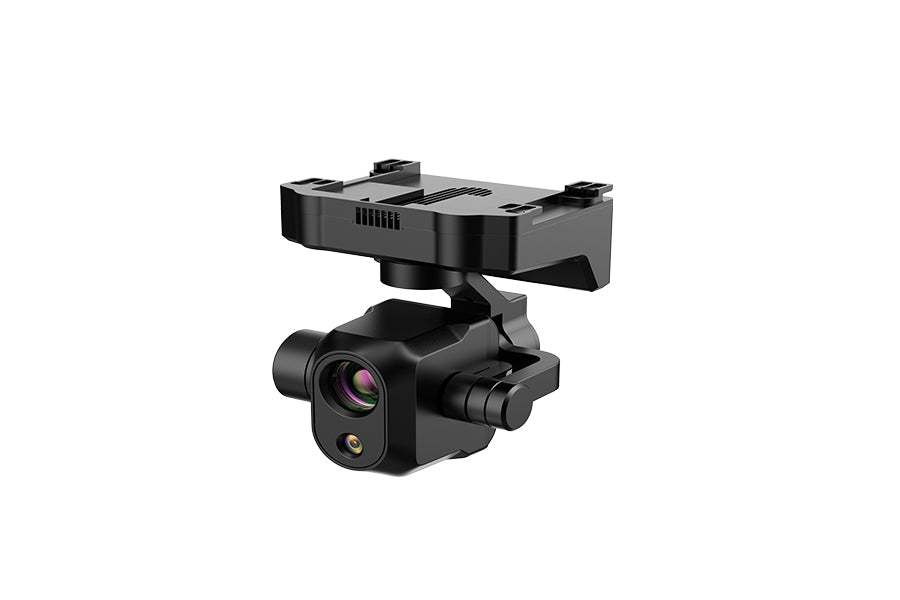

ACSL SOTEN high resolution thermal camera with Teledyne FLIR Hadron 640R
ACSL SOTEN thermal and visible camera payload

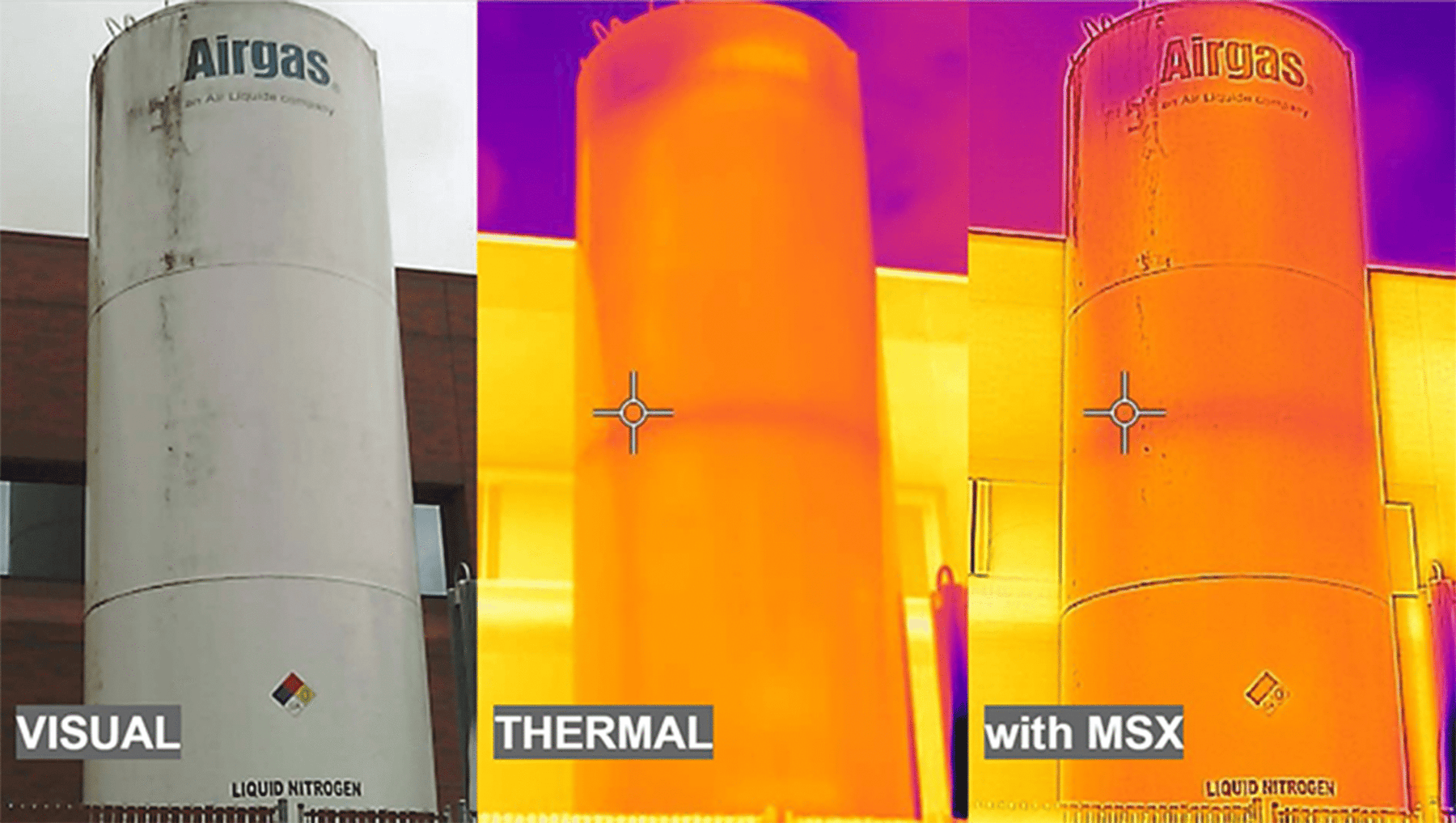

Visual, thermal and MSX thermal views from the ACSL SOTEN thermal camera

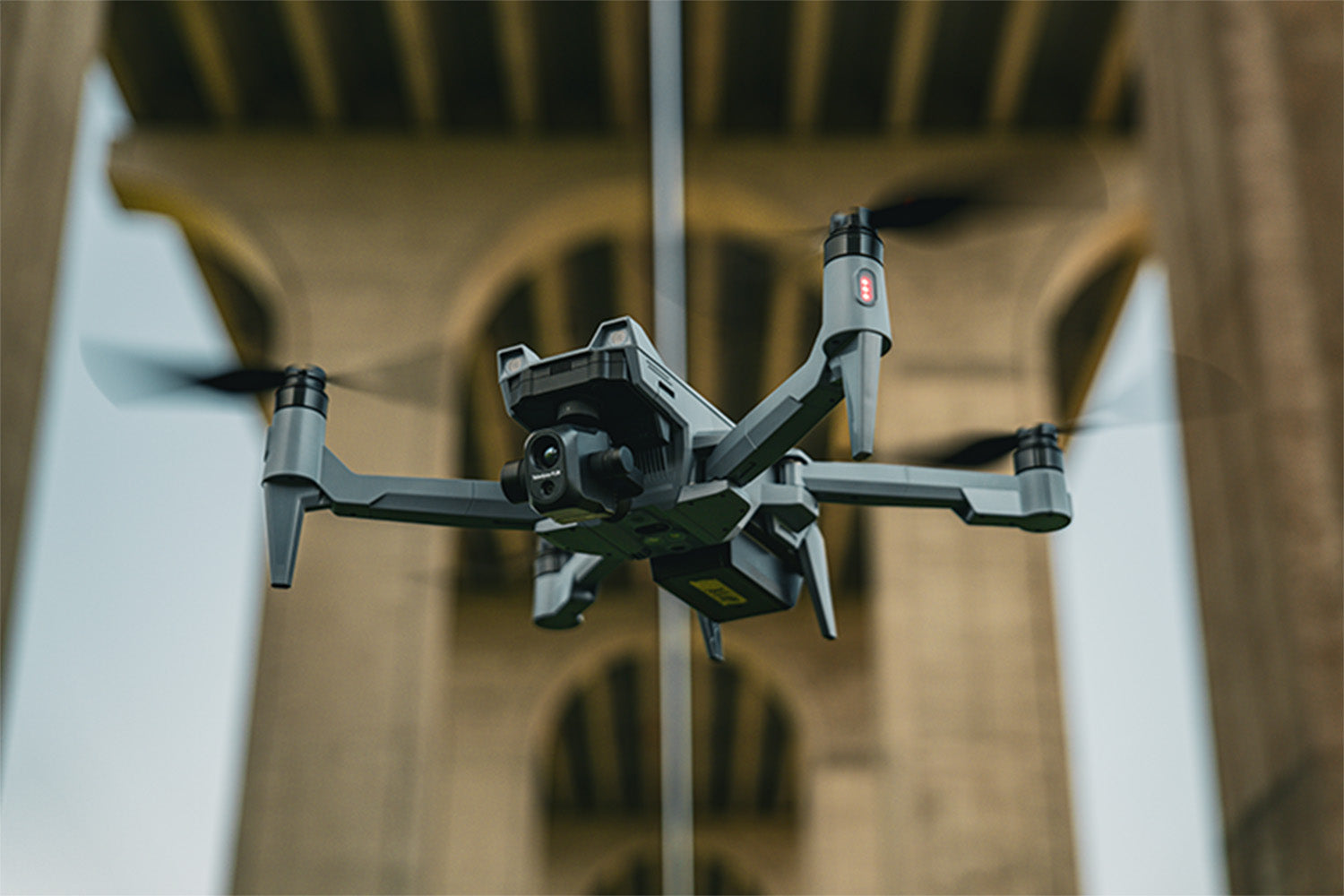

ACSL SOTEN drone inspecting a bridge underside
ACSL SOTEN high resolution thermal camera with Teledyne FLIR Hadron 640R
ACSL SOTEN thermal and visible camera payload
Visual, thermal and MSX thermal views from the ACSL SOTEN thermal camera
ACSL SOTEN drone inspecting a bridge underside

ACSL SOTEN High Resolution Thermal Camera (SAMO)

This is a special order item — not currently in stock.
Special order items are reserved through our sales team. Submit the form below and a Maverick representative will reach out to confirm availability, lead time, and next steps to secure your unit. A deposit may be required to begin the order. Prefer to talk now? Call us at (612) 808-9838.
Lead time varies by manufacturer. A deposit may apply and will be credited toward your final invoice.

The ACSL SOTEN High Resolution Thermal Camera (SAMO) is a dual-sensor thermal and visible payload built around the Teledyne FLIR Hadron 640R module. It brings radiometric 640 x 512 thermal imaging to the SOTEN for public safety, search and rescue, utility and roof or facade inspection.

Radiometric Thermal on SOTEN.
A 640 x 512 radiometric core and a high-resolution visible camera give crews day-or-night situational awareness and measurable temperatures.

Measure Heat. Radiometric data, +/-5 C accuracy.

Dual Sensor. Thermal and visible in one payload.

Swappable. Fits the standard SOTEN payload bay.

Learn More +

The ACSL SOTEN High Resolution Thermal Camera (SAMO) is a dual-sensor thermal and visible payload built around the Teledyne FLIR Hadron 640R module. It brings radiometric 640 x 512 thermal imaging to the SOTEN for public safety, search and rescue, utility and roof or facade inspection.

Key Specifications

  • Thermal sensor: radiometric 640 x 512, 12 micron pixel pitch, sensitivity under 20 mK NETD typical
  • Temperature accuracy: +/-5 C across 0 to 100 C (distributor-published)
  • Thermal optics: 13.6 mm focal length, F/1.0, 32 degree horizontal field of view
  • Visible channel: 64 MP, 67 degree horizontal field of view
  • Works with the ACSL TAKEOFF app and the TAITEN smart controller; one-touch swap through the SOTEN payload bay

What's Included

  • ACSL SOTEN high resolution thermal camera

Good to Know

  • Aircraft, controller and batteries are sold separately. Export regulations may limit thermal frame rate by region.

Maverick is an authorized ACSL dealer. Specifications are from ACSL published documents (acsl-usa.com, product.acsl.co.jp) and may change without notice.
