DJI Agras T-40 M3 Arm Parts Package

DJI Agras T-40 M3 Arm Parts Package

Regular price$ 1,899.00
/
Shipping calculated at checkout.
Supplier: DJI

  • In stock, ready to ship
  • Backordered, shipping soon

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

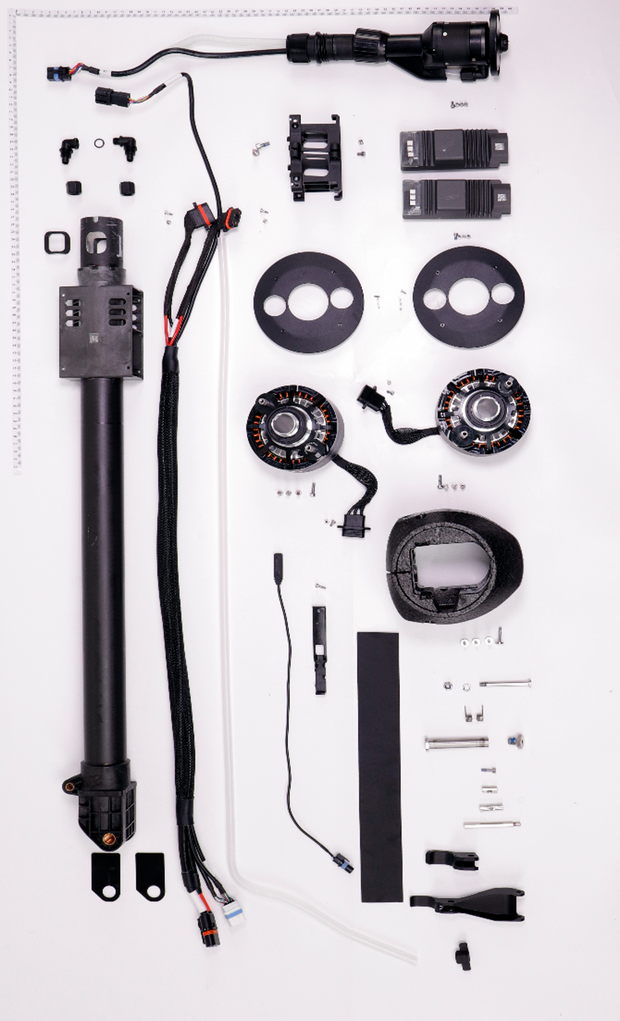

Everything you need to replace the M3 Arm on your T-40

No. QTY Material Name 2
1 1 Hose Curving Connector (Outer Thread)
2 1 Pump Connector Sealing Ring
3 1 Hose Curving Connector (Inner Thread)
4 1 Hose Nut
5 1 Screw M25-HC00780040-040020-5108-N
6 1 Aircraft Arm Rubber
7 1 M3 Aircraft Arm (Rear Left)
8 1 M3&M4 Aircraft Arm ESC Composite Cable
9 1 Aircraft Arm Hose
10 1 Screw M30-HC100100-55-85
11 1 Aircraft Arm In-Position Detector Signal Cable
12 1 In-Position Detector Bracket
13 1 Acetate Fabric
14 2 Aircraft Arm Friction Plate
15 1 Thumb Nut
16 1 Locking Piece Handle
17 1 Locking Piece Handle Rubber Sleeve
18 1 Aircraft Arm Fixing Screw Bolt
19 1 Locking Piece Connection Rod
20 1 Locking Piece Aircraft Arm Shaft
21 1 Locking Piece Handle Connecting Rod Shaft
22 1 Screw M40-HC01400140-070039-0003-Y
23 1 Aircraft Arm Fixing Screw
24 2 Locking Piece Spring
25 1 Locking Piece Fixing Screw Bolt
26 1
27 4 M30-HT01930060-110025-5103-Y
28 1 M60-HX100060-5103_01
29 1 Motor Cover
30 4 M40-HC01400140-070039-4105-Y
31 1 10033 Propulsion Motor
32 2 Screw M30-HC060060-55-85
33 10 M20-TC00700060-033010-0004-Y
34 2 Motor Upper Cover
35 2 ESC Module
36 1 Motor Fixing Base
37 2 Motor Locating Pin
38 2 M50-HC01200120-087050-5103-Y
39 4 Screw M30-HC060060-55-85
40 1 Centrifugal Spray Rod
41 1 Motor Base Locking Piece
42 1 M4 Aircraft Arm (Rear Right)
Learn More +

Everything you need to replace the M3 Arm on your T-40

No. QTY Material Name 2
1 1 Hose Curving Connector (Outer Thread)
2 1 Pump Connector Sealing Ring
3 1 Hose Curving Connector (Inner Thread)
4 1 Hose Nut
5 1 Screw M25-HC00780040-040020-5108-N
6 1 Aircraft Arm Rubber
7 1 M3 Aircraft Arm (Rear Left)
8 1 M3&M4 Aircraft Arm ESC Composite Cable
9 1 Aircraft Arm Hose
10 1 Screw M30-HC100100-55-85
11 1 Aircraft Arm In-Position Detector Signal Cable
12 1 In-Position Detector Bracket
13 1 Acetate Fabric
14 2 Aircraft Arm Friction Plate
15 1 Thumb Nut
16 1 Locking Piece Handle
17 1 Locking Piece Handle Rubber Sleeve
18 1 Aircraft Arm Fixing Screw Bolt
19 1 Locking Piece Connection Rod
20 1 Locking Piece Aircraft Arm Shaft
21 1 Locking Piece Handle Connecting Rod Shaft
22 1 Screw M40-HC01400140-070039-0003-Y
23 1 Aircraft Arm Fixing Screw
24 2 Locking Piece Spring
25 1 Locking Piece Fixing Screw Bolt
26 1
27 4 M30-HT01930060-110025-5103-Y
28 1 M60-HX100060-5103_01
29 1 Motor Cover
30 4 M40-HC01400140-070039-4105-Y
31 1 10033 Propulsion Motor
32 2 Screw M30-HC060060-55-85
33 10 M20-TC00700060-033010-0004-Y
34 2 Motor Upper Cover
35 2 ESC Module
36 1 Motor Fixing Base
37 2 Motor Locating Pin
38 2 M50-HC01200120-087050-5103-Y
39 4 Screw M30-HC060060-55-85
40 1 Centrifugal Spray Rod
41 1 Motor Base Locking Piece
42 1 M4 Aircraft Arm (Rear Right)
