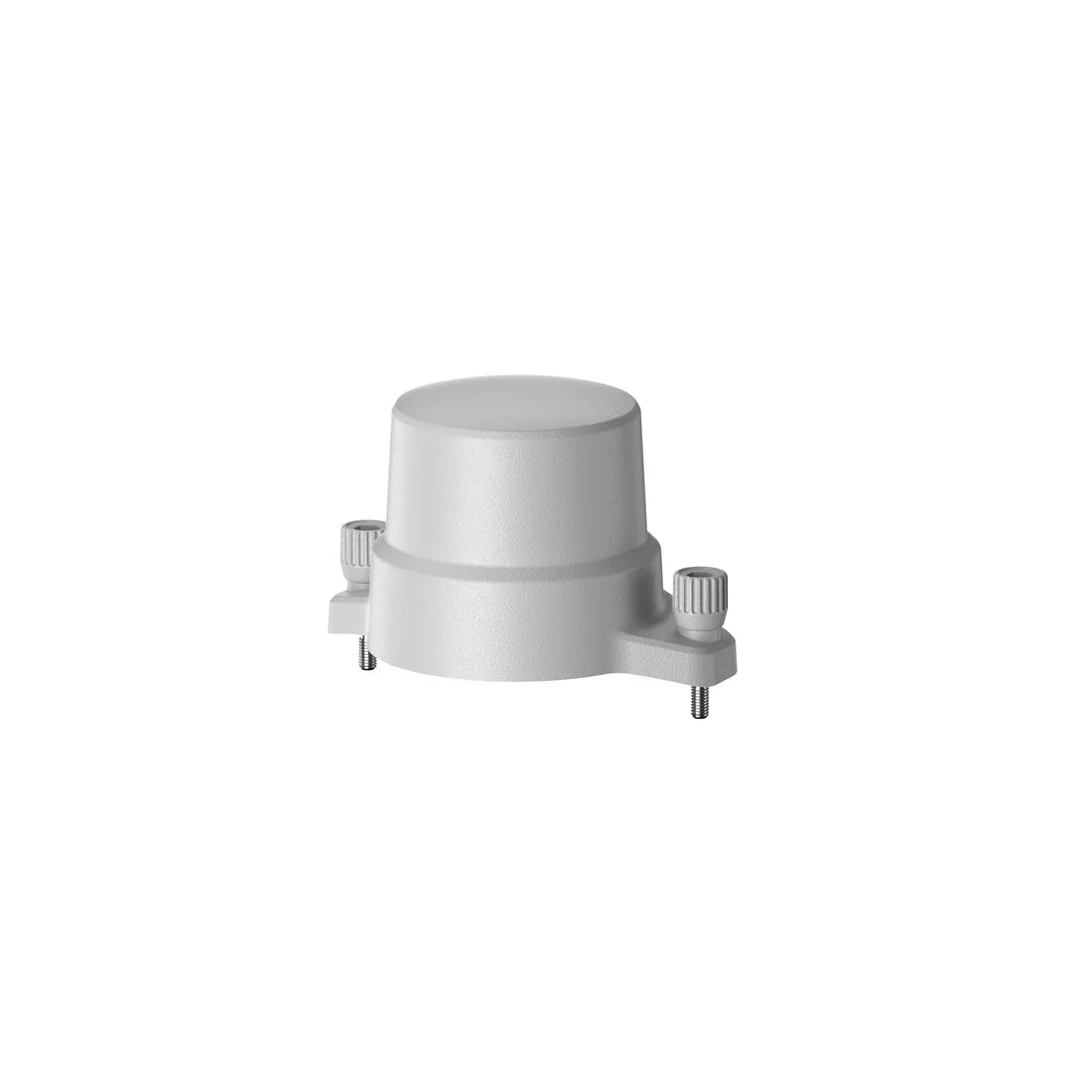

Autel EVO MAX RTK Module
Autel EVO MAX RTK Module
Autel EVO MAX RTK Module
Autel EVO MAX RTK Module

Autel EVO MAX RTK Module

102002596

$ 529.00
/
Shipping calculated at checkout.
Supplier: Autel
  • Low stock - 1 item left
  • Backordered, shipping soon
Toggle HubSpot Form

Overview

The Autel EVO MAX RTK Module is a precision GNSS positioning payload that delivers centimeter-level Real-Time Kinematic accuracy directly to the EVO MAX platform. Supporting GPS, GLONASS, BeiDou, and Galileo constellations with NTRIP network RTK, base station, and PPK modes, it enables high-accuracy georeferencing for mapping, surveying, and inspection missions — with minimal ground control point requirements and full integration via the Autel SkyLink V3 app.

Centimeter-Level RTK GNSS — Precision Positioning Without the GCP Overhead
The EVO MAX RTK Module integrates Real-Time Kinematic GNSS positioning directly into the aircraft, delivering 1 cm + 1 ppm horizontal and 2 cm + 1 ppm vertical accuracy in the field. By embedding RTK position data into image metadata at the point of capture, it eliminates the dense GCP networks traditionally required for survey-grade photogrammetry — reducing field crew requirements, pre-mission setup time, and post-processing complexity without sacrificing output accuracy.

Multi-Constellation GNSS — GPS, GLONASS, BeiDou, and Galileo satellite support ensures robust signal acquisition across diverse operating environments — open terrain, urban corridors, high-latitude regions, and areas with partial sky obstruction — maintaining fix reliability where single-constellation systems degrade.

NTRIP, Base Station & PPK Flexibility — Supports NTRIP network RTK correction streams for connected field operations, traditional base station setups for remote deployments, and Post-Processed Kinematic (PPK) data logging for missions where real-time correction links are unavailable — giving operators full flexibility across mission types and connectivity conditions.

SkyLink V3 Integrated Status — RTK fix type, satellite count, and correction link status are displayed in real time within the Autel SkyLink V3 pilot app. Operators have full situational awareness of positioning quality before and during the mission — no secondary devices or external GNSS software required.

Learn More +

Centimeter-Level GNSS Accuracy. Real-Time Kinematic Positioning. Quick-Release Payload. The Autel EVO MAX RTK Module.

The Autel EVO MAX RTK Module is a precision positioning payload engineered for mapping, surveying, and inspection missions that demand centimeter-level accuracy. Integrating Real-Time Kinematic (RTK) GNSS positioning directly into the EVO MAX platform, the module eliminates the need for dense ground control point networks — dramatically reducing field time while improving geospatial data quality. It mounts via the EVO MAX's quick-release payload interface and is managed through the Autel SkyLink V3 pilot app, delivering high-accuracy positioning data directly to the aircraft's flight controller and onboard imaging systems for precise georeferencing on every mission.

Key Specifications

  • RTK GNSS Positioning — Real-Time Kinematic satellite positioning for centimeter-level horizontal and vertical accuracy in the field
  • Reduced GCP Dependency — Minimizes or eliminates the need for ground control points, reducing pre-mission setup time and field crew requirements
  • Multi-Constellation Support — Compatible with GPS, GLONASS, BeiDou, and Galileo satellite systems for robust signal acquisition in varied environments
  • Precise Georeferencing — RTK position data is embedded directly into image metadata for accurate photogrammetric outputs without post-processing correction
  • Quick-Release Payload Mount — Attaches to the EVO MAX belly via the aircraft's native quick-release interface — no tools required
  • SkyLink V3 Integrated — RTK status, satellite count, and fix type displayed in real time within the Autel SkyLink V3 pilot app
  • Network RTK & Base Station Compatible — Supports both NTRIP network RTK correction streams and traditional base station setups
  • PPK Support — Post-Processed Kinematic data logging available for missions where real-time correction links are unavailable

Full Specifications

Positioning Type RTK GNSS
GNSS Constellations GPS, GLONASS, BeiDou, Galileo
RTK Horizontal Accuracy 1 cm + 1 ppm
RTK Vertical Accuracy 2 cm + 1 ppm
Correction Input NTRIP (Network RTK), Base Station
PPK Support Yes
Mount Type Quick-release payload interface
Mount Location Aircraft belly
Power Source Via drone payload interface
Control App Autel SkyLink V3
Compatible Platform Autel EVO MAX series
Weight 5 lbs
SKU 102002596

In the Box

  • Autel EVO MAX RTK Module × 1
