Overview
Fully Autonomous. IP55. 10km Radius. Deploy in Minutes.
DJI Dock 2 is 75% smaller and 68% lighter than its predecessor — deployable by two people with minimal infrastructure. Dual RTK antennas enable 45-second takeoff, 32-minute fast charge powers consecutive missions, and IP55 protection sustains operation through rain, dust, and demanding field conditions. Managed entirely via DJI FlightHub 2 from any location.
Learn More +
Autonomous Drone Operations. IP55. 10km Radius. 45-Second Takeoff.

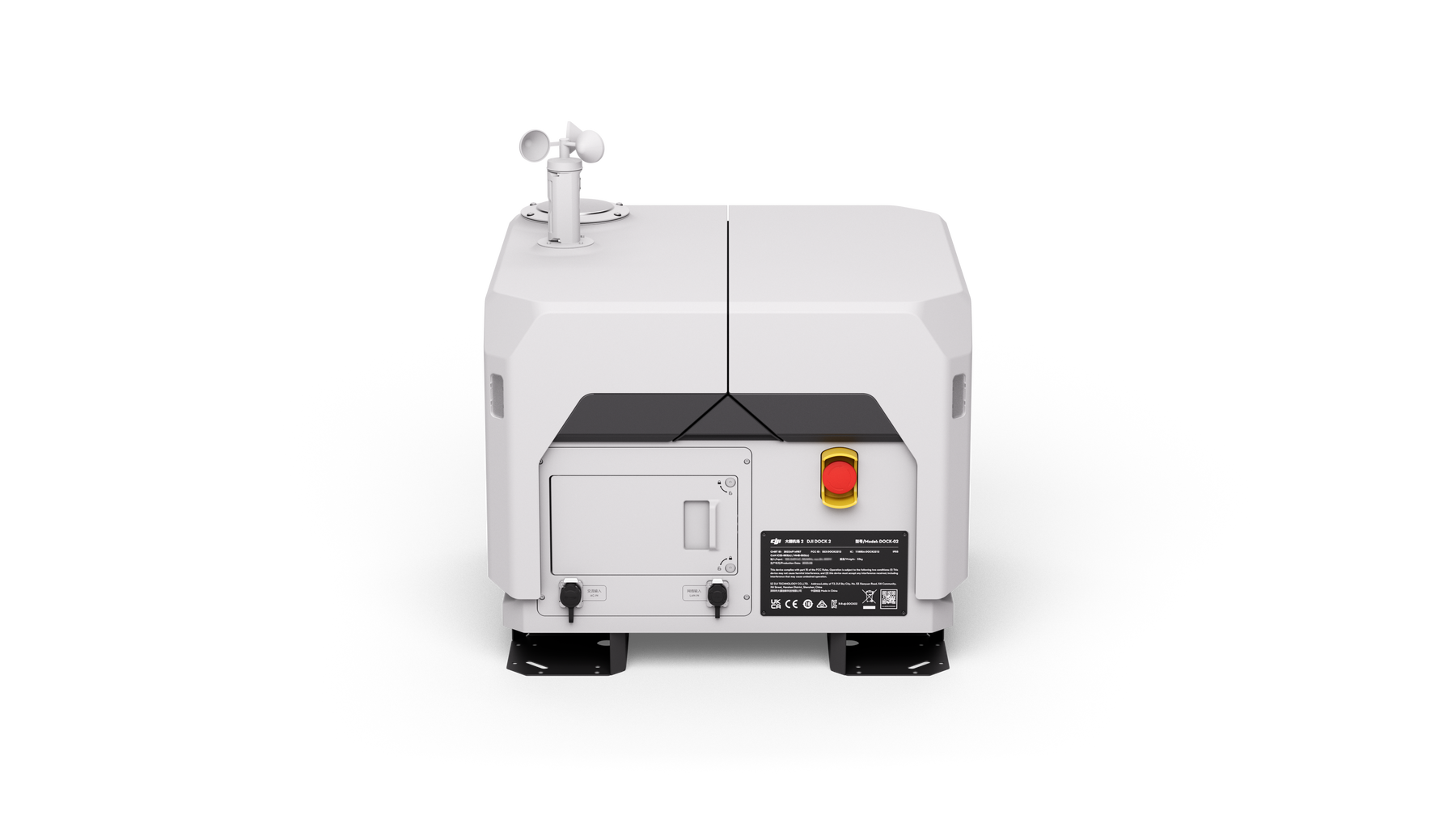

The DJI Dock 2 is a next-generation drone-in-a-box system engineered for fully unattended aerial operations. Deploying the DJI Matrice 3D or Matrice 3TD, Dock 2 is 75% smaller and 68% lighter than its predecessor — transportable by two people and installable with minimal infrastructure. With IP55 ingress protection, an integrated environmental monitoring system, dual RTK antennas, and cloud-based intelligent functions via DJI FlightHub 2, Dock 2 delivers enterprise-grade autonomous operations across mapping, inspection, security, and emergency response use cases.
Key Specifications
- IP55 Ingress Protection — Dust and water resistant for sustained operation in harsh field environments
- 10km Max Effective Operating Radius — Wide-area autonomous coverage from a single dock installation
- 45-Second Takeoff — Dual RTK antennas enable rapid RTH lock; full propeller inspection and takeoff in as little as 45 seconds
- 32-Minute Fast Charge — Charges aircraft from 20% to 90% in 32 minutes for consecutive mission capability
- Built-In Backup Battery — Over 5 hours of independent operation during power outages
- Integrated Environmental Monitoring — Rainfall, wind speed, and temperature sensors with FlightHub 2 weather integration for real-time flight risk management
- Dual-Camera Monitoring — Internal and external fisheye cameras for remote observation of dock status, weather, and aircraft operations
- 6-Month Maintenance Interval — High protection rating reduces maintenance frequency and human resource costs
- Cloud-Based Operations via FlightHub 2 — Cloud mapping, AI Spot-Check, FlyTo Tasks, Flight Route Editor, Live Flight Controls, and Obstacle Bypass
- Open Ecosystem — Third-party payload support (E-Port), edge computing interface, Cloud API for private deployment, DJI TerraAPI integration
Compatible Aircraft
| DJI Matrice 3D | DJI Matrice 3TD |
| Wide-Angle: 4/3 CMOS, 24mm, 20MP, Mechanical Shutter | Wide-Angle: 1/1.32" CMOS, 24mm, 48MP |
| Tele: 1/2" CMOS, 162mm, 12MP | Tele: 1/2" CMOS, 162mm, 12MP |
| — | Infrared: 40mm, 640×512 / 1280×1024 UHR, 28× Digital Zoom |
| 1:500 high-precision mapping | Visible light + thermal for inspection & security |
Full Specifications
| Compatible Aircraft | DJI Matrice 3D, DJI Matrice 3TD |
| Ingress Protection (Dock) | IP55 |
| Ingress Protection (Aircraft) | IP54 |
| Max Effective Operating Radius | 10km |
| Max Aircraft Flight Time | 50 minutes |
| Takeoff Time | ~45 seconds (fastest) |
| Charge Time (20%→90%) | 32 minutes |
| Backup Battery Runtime | >5 hours (post power outage) |
| RTK Positioning Accuracy | ±3cm |
| Obstacle Sensing | 6-directional |
| Battery Cycles | 400 |
| Maintenance Interval | ~6 months |
| Cloud Platform | DJI FlightHub 2 |
| SKU | CP.EN.00000510.01 |
| Weight | 149 lbs |
| Country of Origin | China |
| HS Code | 847130 |
In the Box
- DJI Dock 2 × 1
- Aircraft (Matrice 3D or 3TD) — sold separately
- Third-party payloads — sold separately
Always check and strictly abide by local laws and regulations before flying. All performance data collected in controlled environments; actual results may vary. DJI Matrice 3D/3TD must be activated via DJI Pilot 2 before use. Perform regular maintenance per the Maintenance Manual.
