DJI Zenmuse H20T Hybrid Sensor Payload | Floor Model | Open Box
DJI Zenmuse H20T Hybrid Sensor Payload | Floor Model | Open Box
DJI Zenmuse H20T Hybrid Sensor Payload | Floor Model | Open Box
DJI Zenmuse H20T Hybrid Sensor Payload | Floor Model | Open Box

DJI Zenmuse H20T Hybrid Sensor Payload | Floor Model | Open Box

$ 6,782.00
/
Shipping calculated at checkout.
Supplier: DJI
  • Low stock - 1 item left
  • Backordered, shipping soon
Toggle HubSpot Form

Overview

The DJI Zenmuse H20T is DJI's premier hybrid sensor payload — combining a wide camera, 23× optical zoom, 640×512 radiometric thermal imager, and laser rangefinder into a single, stabilized gimbal. This floor model unit is inspected, fully functional, and available at a significant discount — ideal for public safety, infrastructure inspection, search and rescue, and energy sector operations requiring simultaneous multi-sensor data capture.

Four Sensors. One Gimbal. One Flight.
The Zenmuse H20T eliminates the need for multiple payload swaps by integrating a wide-angle camera, 23× optical zoom camera, 640×512 radiometric thermal camera, and laser rangefinder into a single stabilized gimbal. Capture visual, thermal, and ranging data simultaneously — reducing flight time, operational complexity, and mission cost on every deployment.

Radiometric Thermal Imaging at 640×512 — The H20T's thermal sensor delivers NETD ≤50 mK sensitivity with full radiometric data output, enabling precise temperature measurement across the entire frame. From electrical fault detection to wildfire monitoring, every pixel carries actionable thermal intelligence.

23× Optical Zoom with Laser Precision — The 20 MP zoom camera reaches subjects at distance with clarity, while the integrated laser rangefinder delivers ±0.2 m accuracy from 3 to 1,200 meters. Pinpoint targets, measure distances, and coordinate ground teams — all from a single airborne platform.

Floor Model Value. Enterprise Performance. — This Maverick-inspected floor model delivers the full capability of the DJI Zenmuse H20T at a significant discount. Confirmed fully functional by our technicians — ready to deploy on your Matrice 300 RTK or Matrice 350 RTK the day it arrives.

Learn More +

Four Sensors. One Gimbal. Thermal + Zoom + Wide + Laser. The DJI Zenmuse H20T.

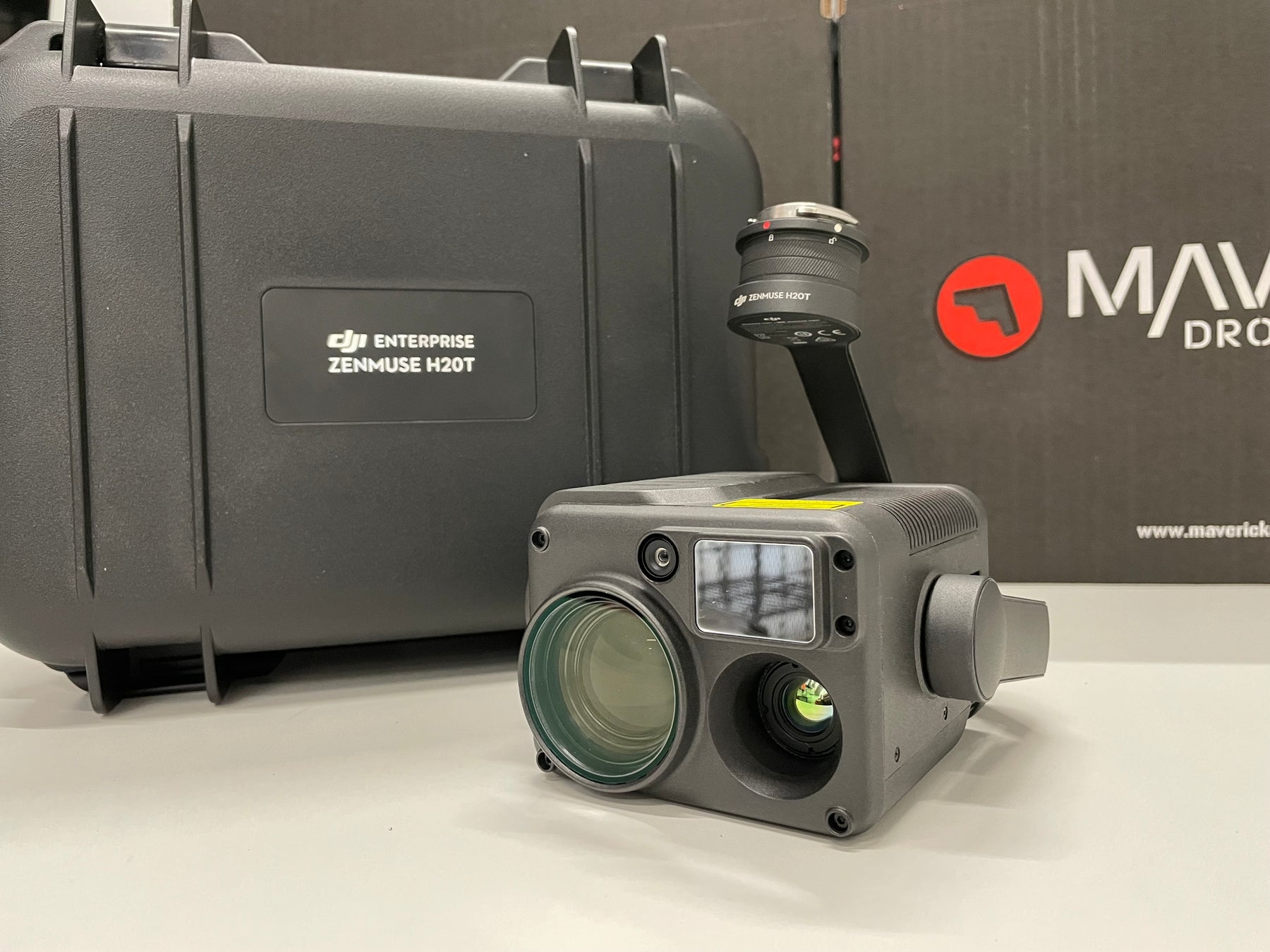

This is a Maverick floor model unit of the DJI Zenmuse H20T — DJI's most capable hybrid sensor payload for the Matrice 300 RTK and Matrice 350 RTK platforms. The H20T integrates four sensors into a single stabilized gimbal: a 12 MP wide-angle camera, a 20 MP 23× optical zoom camera, a 640×512 radiometric thermal camera, and a laser rangefinder — enabling simultaneous multi-sensor data capture in a single flight. Floor model units are inspected, confirmed fully functional by Maverick technicians, and sold as-is at a significant discount.

Key Specifications

  • Wide Camera: 1/2.3" CMOS, 82.9° FOV, 12 MP — broad situational awareness in a single frame
  • Zoom Camera: 1/1.7" CMOS, 23× optical zoom, 20 MP — high-resolution detail at extended range
  • Thermal Camera: 640×512 px, radiometric, NETD ≤50 mK — full-frame temperature measurement with actionable thermal data
  • Laser Rangefinder: Range 3–1,200 m, ±0.2 m accuracy — precise target ranging and coordinate output
  • Simultaneous Multi-Sensor Operation — all four sensors active in a single flight, reducing mission time and complexity
  • Smart Track & Infrared Zoom — intelligent subject tracking and thermal zoom modes for dynamic operations
  • IP44 Weather Resistance — protected against dust and water splash for field deployment
  • Compatible Platforms: DJI Matrice 300 RTK, DJI Matrice 350 RTK
  • Software Support: DJI Pilot 2, DJI SDK (third-party integration supported)

Full Specifications

Wide Camera Sensor 1/2.3" CMOS, 12 MP
Wide Camera FOV 82.9°
Zoom Camera Sensor 1/1.7" CMOS, 20 MP
Optical Zoom 23×
Thermal Resolution 640×512 px
Thermal Sensitivity (NETD) ≤50 mK
Thermal Type Radiometric
Laser Rangefinder Range 3–1,200 m
Laser Accuracy ±0.2 m
Weather Resistance IP44
Compatible Aircraft Matrice 300 RTK, Matrice 350 RTK
Condition Floor model — inspected, fully functional
Serial Number 1W9DHCE001GCL8

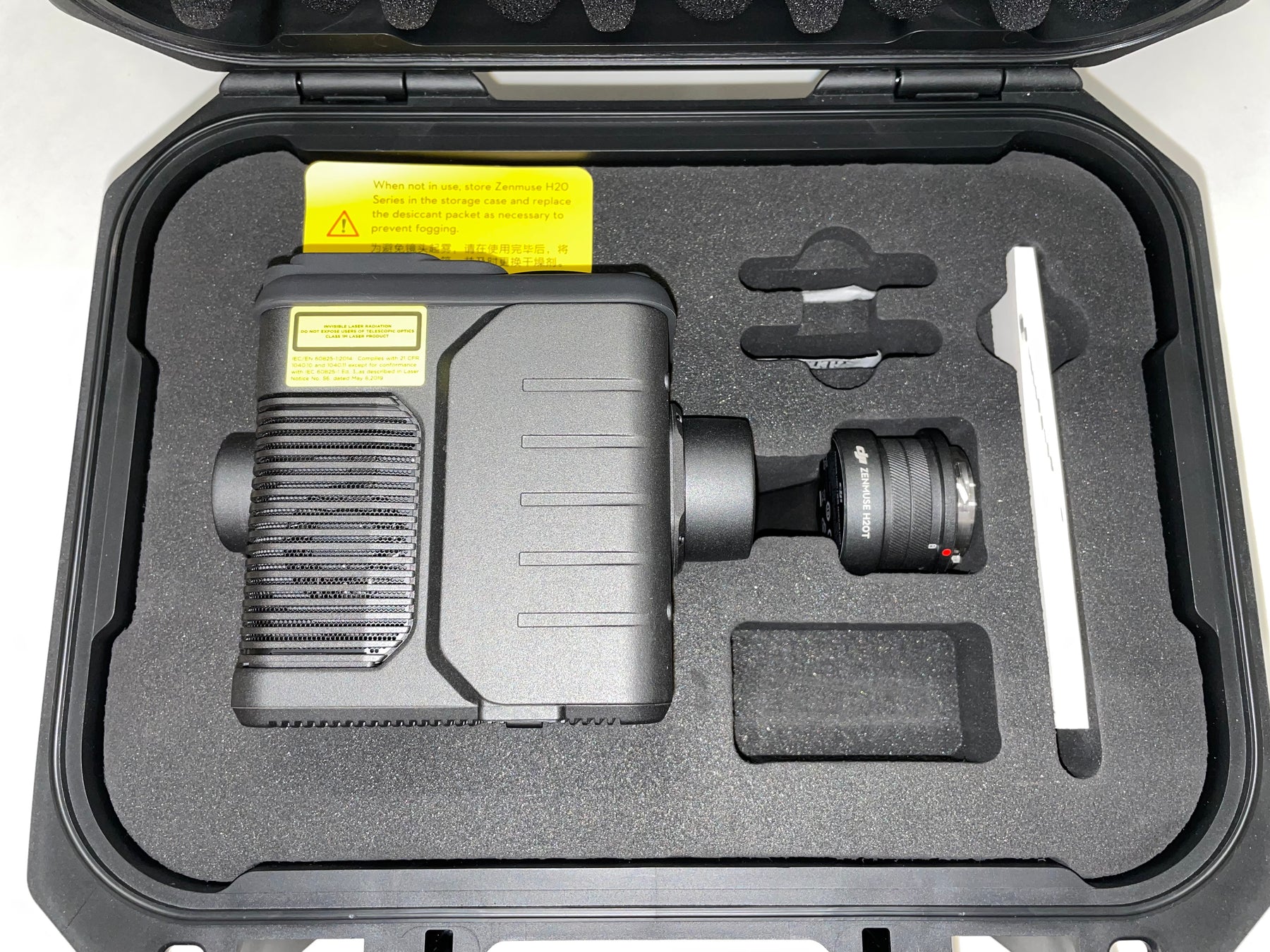

In the Box

  • DJI Zenmuse H20T (SN: 1W9DHCE001GCL8)
  • Hard Case × 1
  • User Manual × 1

Floor model — sold as-is. Inspected and confirmed fully functional by Maverick technicians.
