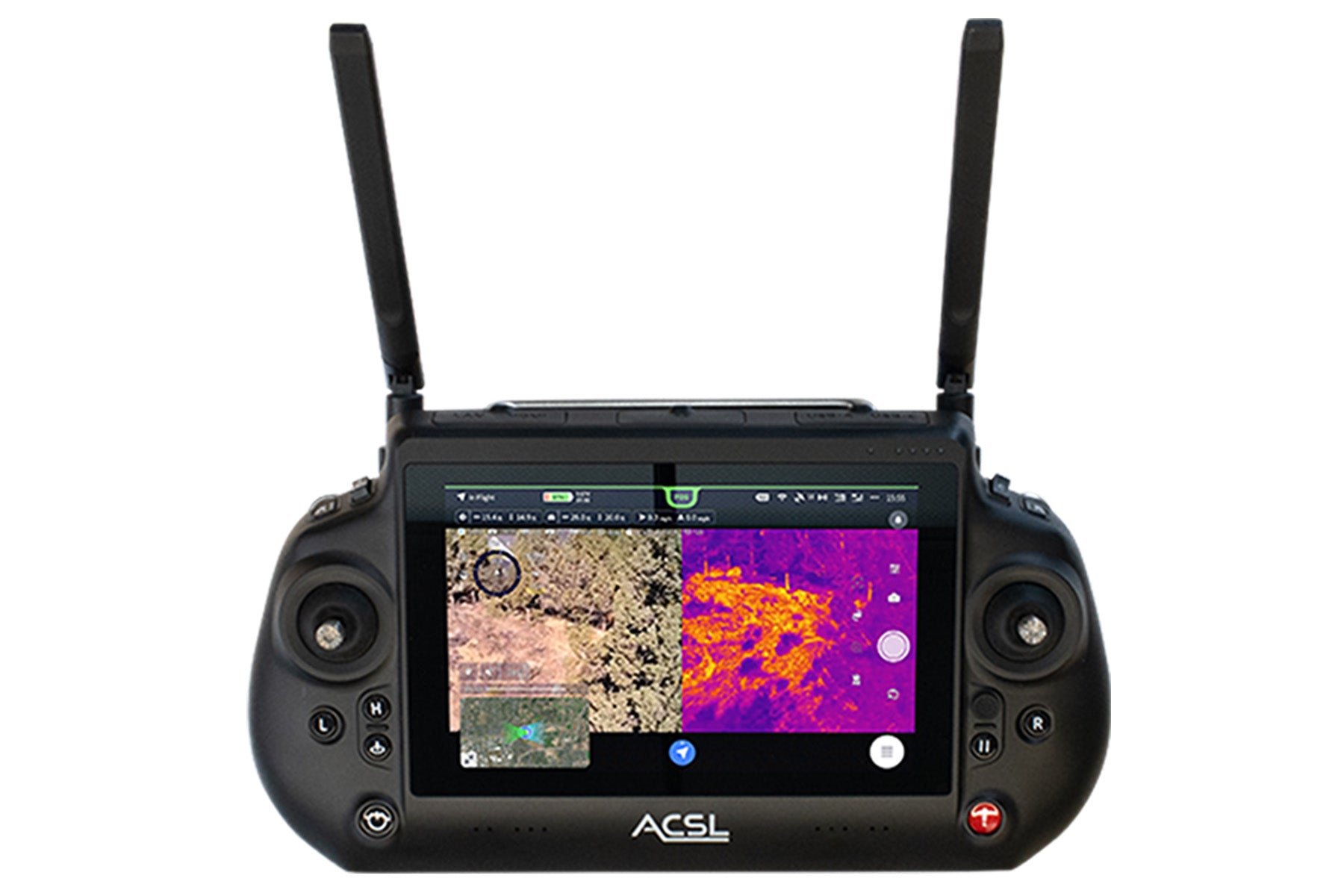

ACSL TAITEN smart controller with 7 inch display

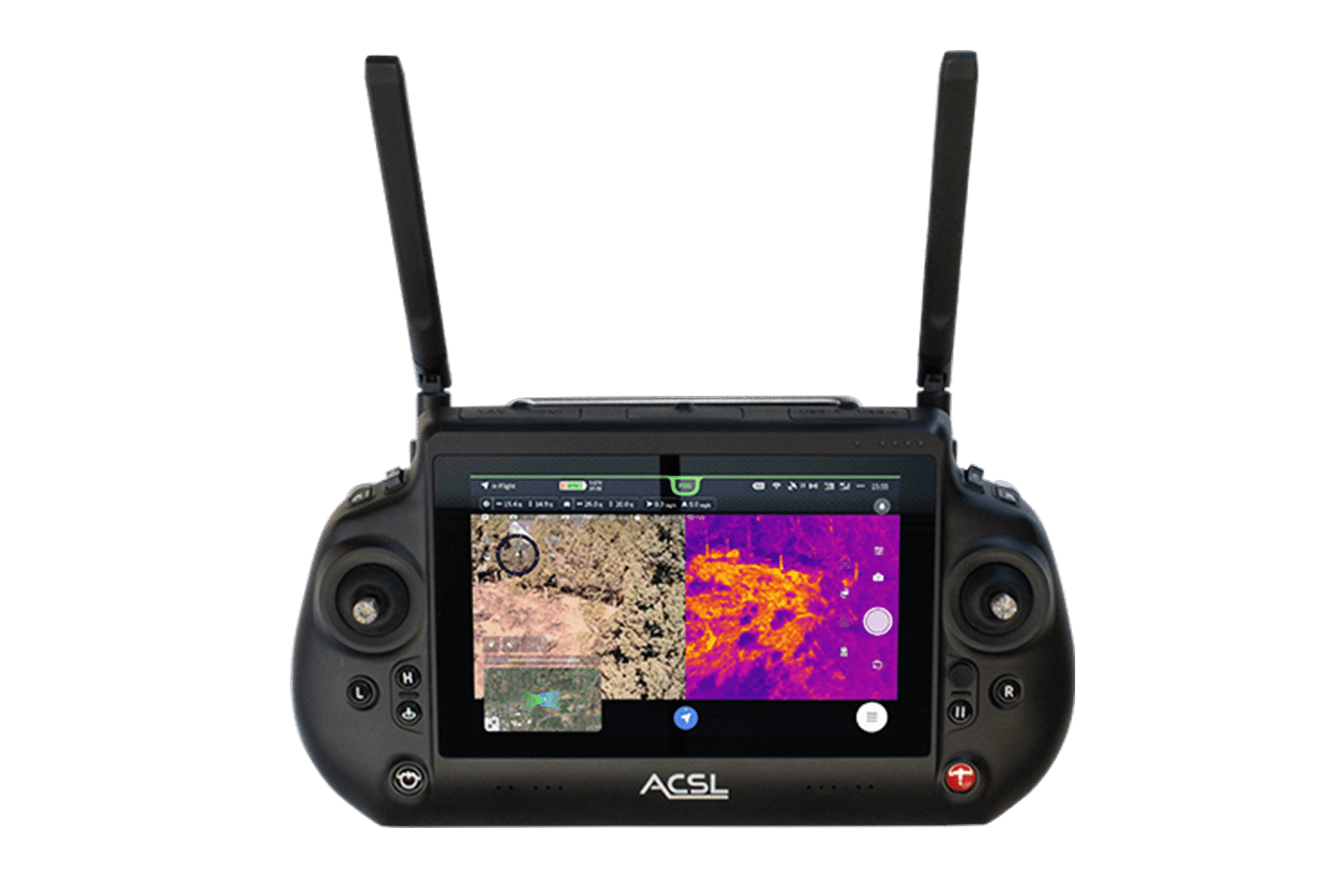

ACSL TAITEN smart controller showing a live thermal view

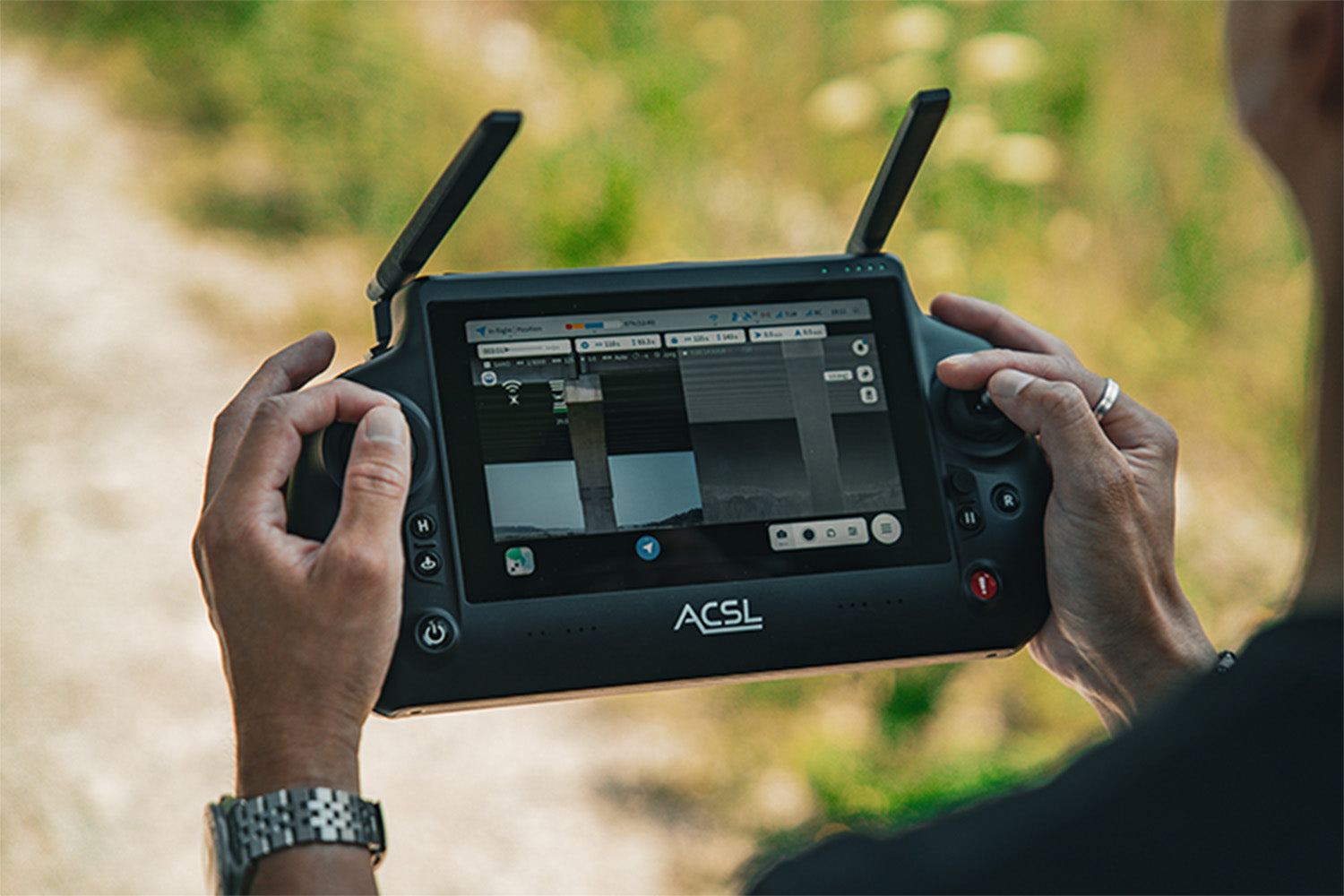

Pilot holding the ACSL TAITEN smart controller

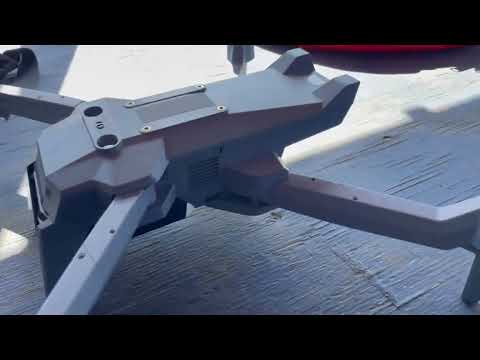

How to update the SOTEN with the TAITEN controller (ACSL Inc. video)
ACSL TAITEN smart controller with 7 inch display
ACSL TAITEN smart controller showing a live thermal view
Pilot holding the ACSL TAITEN smart controller
How to update the SOTEN with the TAITEN controller (ACSL Inc. video)

ACSL TAITEN Smart Controller for SOTEN

This is a special order item — not currently in stock.
Special order items are reserved through our sales team. Submit the form below and a Maverick representative will reach out to confirm availability, lead time, and next steps to secure your unit. A deposit may be required to begin the order. Prefer to talk now? Call us at (612) 808-9838.
Lead time varies by manufacturer. A deposit may apply and will be credited toward your final invoice.

The ACSL TAITEN Smart Controller is the next-generation command center for the ACSL SOTEN. A bright 7-inch display, a more advanced processor and an IP54-rated body run the ACSL TAKEOFF ground control app, with dual-band 2.4 GHz and 5.8 GHz communications for demanding environments.

A Daylight-Readable Command Center.
TAITEN pairs a 1500-nit display with an IP54 body and dual-band encrypted links so pilots can fly and review thermal or visual feeds in direct sun.

Bright and Rugged. 7-inch 1500-nit screen and IP54 protection.

Dual-Band Link. 2.4 and 5.8 GHz with AES256 encryption.

Multi-Pilot Ready. Pair up to 3 controllers to one SOTEN.

Learn More +

The ACSL TAITEN Smart Controller is the next-generation command center for the ACSL SOTEN. A bright 7-inch display, a more advanced processor and an IP54-rated body run the ACSL TAKEOFF ground control app, with dual-band 2.4 GHz and 5.8 GHz communications for demanding environments.

Key Specifications

  • Display: 7 inch, 1200 x 1920, 1500 nits
  • Rating: IP54; NDAA-compliant; AES256 encrypted communication
  • Radio: ACSL Fides-Link, 2.4 GHz and 5.8 GHz; operating range 6+ miles without obstruction or interference
  • Runtime: about 8 hours, extendable by powering through USB-C
  • Weight 3.2 lb; dimensions 10.6 x 6.5 x 2.7 in; Android 13; GNSS, light sensor, microphone
  • Ports: USB-C, USB-A 2.0, HDMI, microSD, Ethernet; Wi-Fi; Remote ID compliant
  • Controls: 2 sticks, 8 customizable buttons, 2 wheels, 5-way hat, 3-state flight mode switch; pair up to 3 controllers to 1 aircraft

What's Included

  • ACSL TAITEN smart controller

Good to Know

  • Aircraft, camera and batteries are sold separately.

Maverick is an authorized ACSL dealer. Specifications are from ACSL published documents (acsl-usa.com, product.acsl.co.jp) and may change without notice.
