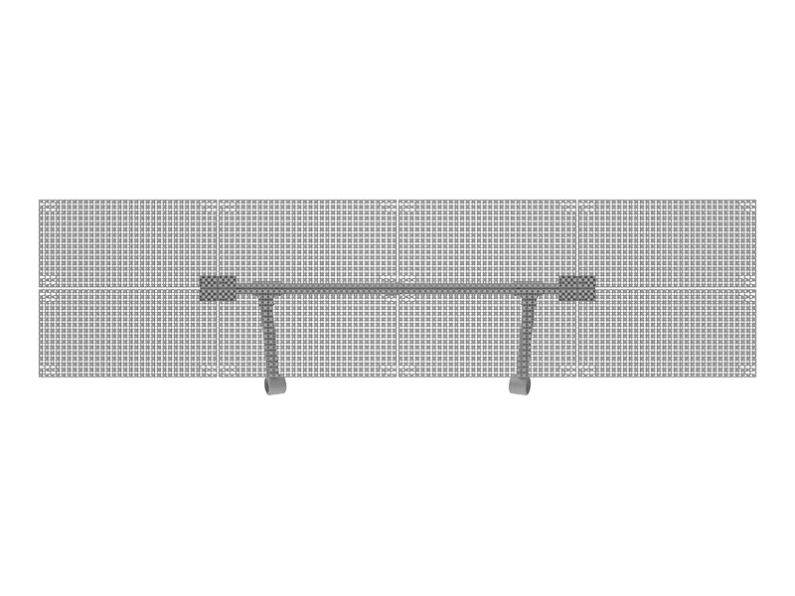

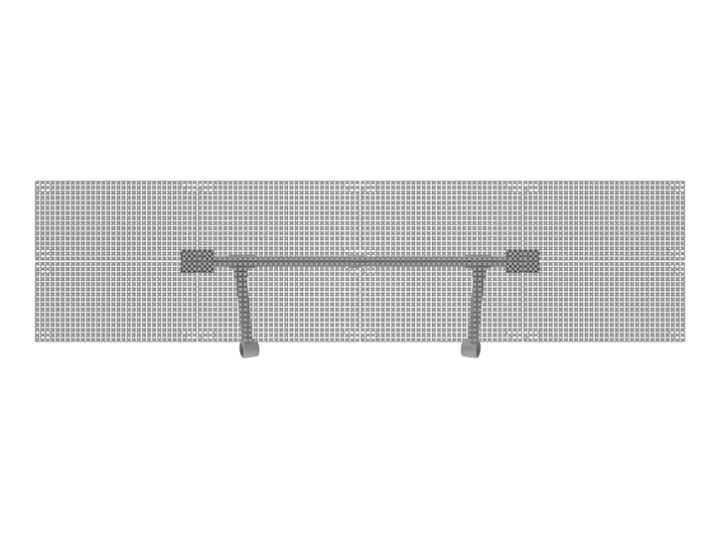

The JZ DS16 Airborne Display is a 52-inch, 4,096-LED drone-mounted display engineered for remote visual warning and information broadcast from altitude. Weighing just 1.55 kg with a 120° wide viewing angle, PSDK integration for DJI Pilot 2 control, and text visibility exceeding 200 meters, the DS16 delivers mission-critical visual communication for public safety, traffic command, fire rescue, and maritime supervision — with flash signals visible at 1,000 meters.

52-Inch Airborne Display. 1,000m Visibility. Full Remote Control.

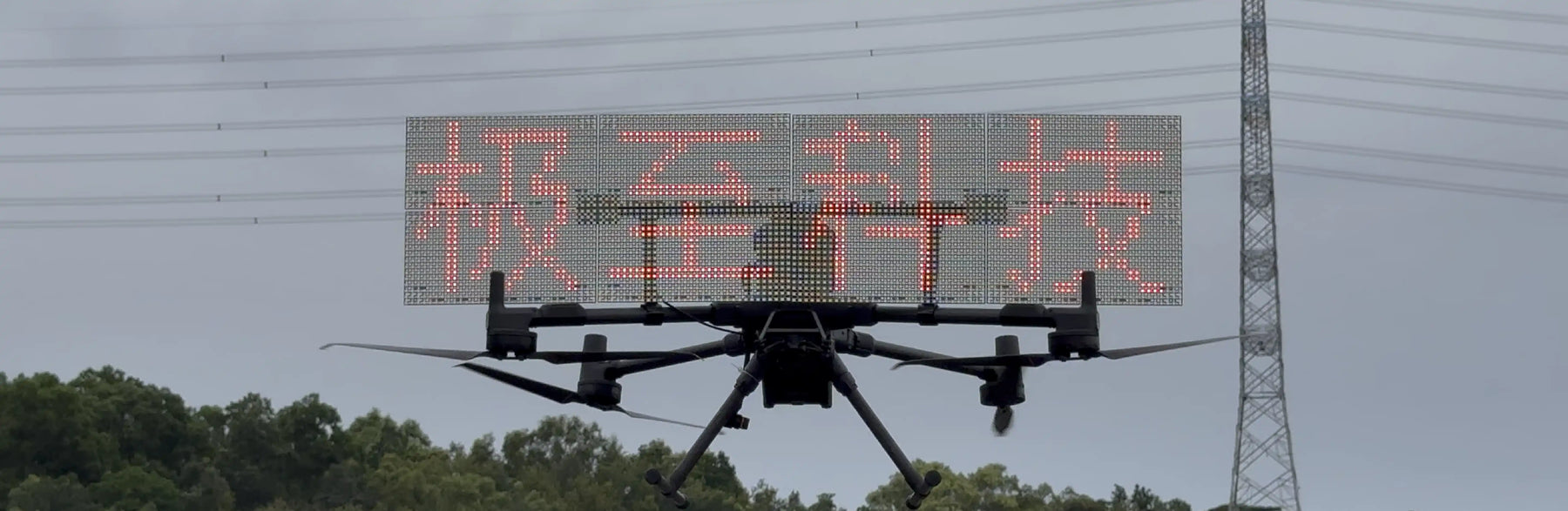

The DS16 puts a full-color, high-brightness display in the sky — controlled in real time from the ground via DJI Pilot 2 and PSDK. With 4,096 high-brightness LEDs, a 120° viewing angle, and flash signals visible at 1,000 meters, operators can broadcast warnings, instructions, and information across wide operational areas without ground-level infrastructure. Snap-on quick release enables rapid deployment across airframes and mission profiles.

Multi-Format Content Playback — The DS16 supports text, image, and video playback with flexible switching between monochrome flashing, dual-color alternation, and colorful flashing modes. Adapt the display output to the mission — from high-contrast emergency warnings to full-color information broadcasts — all controlled remotely via DJI Pilot 2.

PSDK & DJI Pilot 2 Integration — Full PSDK compatibility enables seamless integration with DJI enterprise platforms and real-time content control via DJI Pilot 2. Operators can update display content, switch modes, and manage warnings remotely — without interrupting flight operations or returning to base.

Snap-On Quick Release & Lightweight Build — At just 1.55 kg with a tool-free snap-on quick release mount, the DS16 deploys rapidly across multiple airframes and mission profiles. Minimal weight impact preserves drone flight performance and endurance for extended operational use.

Learn More +

52-inch airborne display. 1000m visible. Mission-ready.

The JZ DS16 Airborne Display is a lightweight, high-brightness drone-mounted display engineered for public safety, traffic command, fire rescue, and maritime supervision. With 4,096 high-brightness LEDs, a 120° wide viewing angle, and PSDK integration for DJI Pilot 2 control, the DS16 delivers remote visual warnings and information at scale — from altitude.

Specifications

Weight 1.55 kg
Display Size 52-inch ultra-wide full-color
LED Count 4,096 high-brightness light beads
Viewing Angle 120°
Text Visibility >200 meters
Flash Signal Visibility 1,000 meters
Control PSDK / DJI Pilot 2
Installation Snap-on quick release
SKU JZ.DS.0002.01

Key Features

  • 52-Inch Ultra-Wide Full-Color Display — 4,096 high-brightness LEDs deliver vivid, high-visibility output readable at over 200 meters
  • 1,000m Flash Signal Visibility — Flashing warning signals visible at 1,000 meters for maximum situational awareness across wide operational areas
  • Multi-Format Content Playback — Supports text, image, and video playback with flexible switching between monochrome flash, dual-color alternation, and colorful flash modes
  • PSDK & DJI Pilot 2 Integration — Full remote operation via DJI Pilot 2 for real-time content control from the ground
  • 120° Wide Viewing Angle — Broad coverage ensures display content is visible across wide ground areas from altitude
  • Snap-On Quick Release — Tool-free installation and removal for rapid deployment across multiple airframes and mission profiles
  • Lightweight Design — 1.55 kg construction minimizes impact on drone flight performance and endurance

Applications

  • Public security and law enforcement operations
  • Traffic command and road inspection
  • Fire rescue and emergency scene management
  • Maritime supervision and coastal operations
  • Airborne emergency warning and information broadcast
