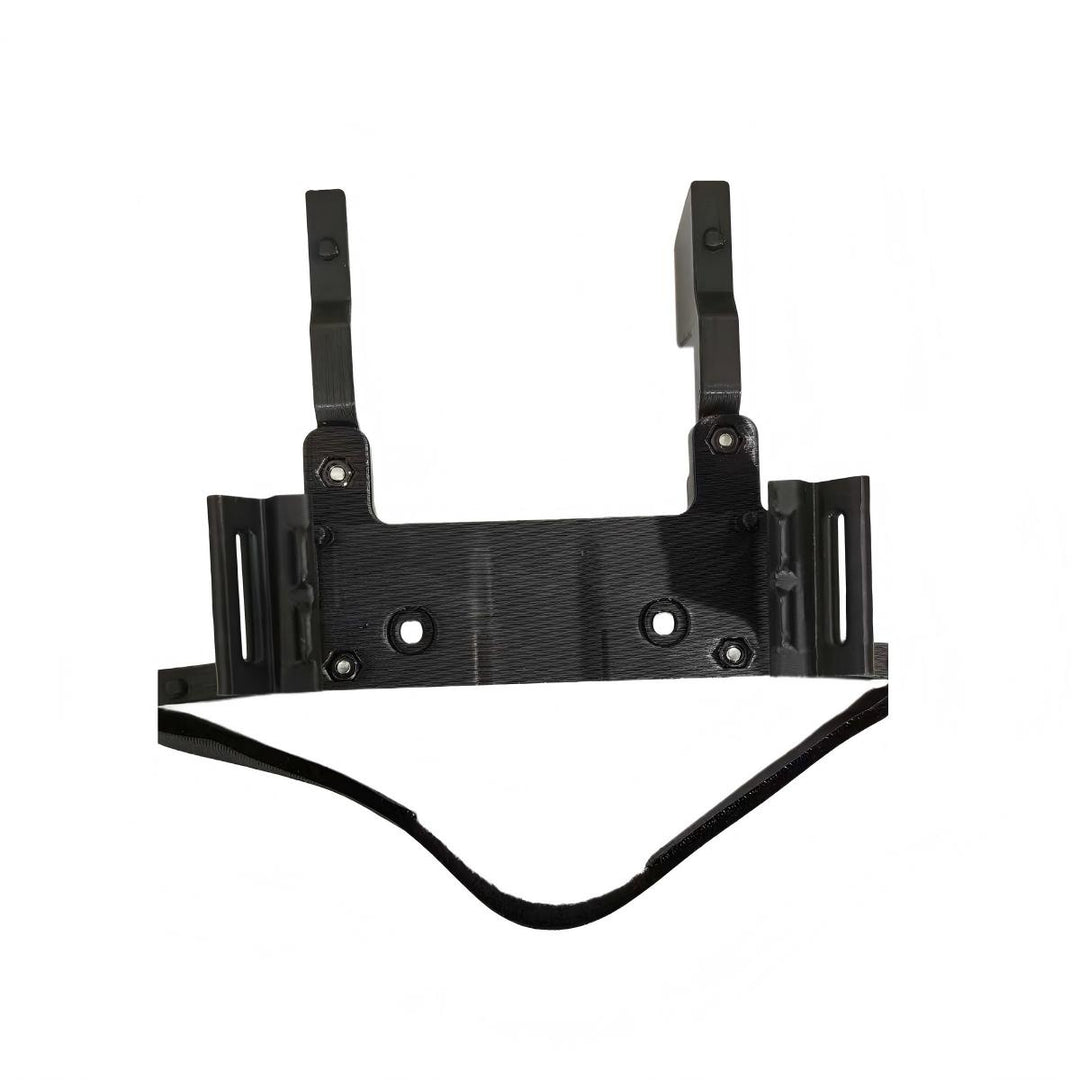

JZ AD2 Mounting Bracket for DJI M4D/M4TD

JZ AD2 Mounting Bracket for DJI M4D/M4TD

Este es un artículo de pedido especial; actualmente no está en stock.
Los artículos de pedidos especiales se reservan a través de nuestro equipo de ventas. Envíe el formulario a continuación y un representante Maverick se comunicará con usted para confirmar la disponibilidad, el tiempo de entrega y los próximos pasos para asegurar su unidad. Es posible que se requiera un depósito para comenzar el pedido. ¿Prefieres hablar ahora? Llámanos al (612) 808-9838.

El plazo de entrega varía según el fabricante. Es posible que se aplique un depósito que se acreditará en su factura final.

The JZ AD2 Mounting Bracket is a precision CNC-machined aluminum adapter purpose-built to enable installation of the JZ AD2 Dual-Channel Airdrop System on DJI Matrice 4D and 4TD drones. Resolving the interface incompatibility between the AD2 payload and the M4D airframe, the bracket delivers full E-Port Lite pass-through, tool-less quick-release mounting, and multi-payload support — enabling operators to run the AD2 alongside megaphone, spotlight, and other M4D payloads in a single flight configuration.

Full E-Port Lite Pass-Through. Multi-Payload. M4D/M4TD Native.
The JZ AD2 Mounting Bracket doesn't just solve an interface compatibility problem — it expands what's possible on the M4D/M4TD platform. Full E-Port Lite pass-through maintains complete power delivery, communication, and control for the AD2 payload, while multi-payload support allows simultaneous installation of additional M4D accessories. CNC-machined from high-strength aluminum alloy, the bracket adds minimal weight and preserves full flight performance and endurance.

CNC-Machined Aluminum & Tool-Less Installation — Precision CNC machining from high-strength aluminum alloy delivers a durable, lightweight bracket with vibration-dampened connection to the M4D bottom port. Quick-release thumb screws enable fast, secure mounting and removal in the field without additional tools — critical for rapid payload swaps in dynamic operational environments.

Multi-Payload Support — The AD2 Mounting Bracket allows simultaneous installation of the JZ AD2 Airdrop System alongside other M4D payloads including megaphone and spotlight systems. Operators can configure the M4D/M4TD for multi-mission capability in a single flight — delivering aerial drops, broadcast, and illumination without payload swaps between sorties.

DJI Pilot 2 & RC Integration — The bracket fully integrates with DJI Pilot 2 App and the M4D/M4TD remote controller for complete payload control from the ground. Note: The JZ AD2 Airdrop System is sold separately. This bracket is required for M4D/M4TD only — the AD2 fits M4E/M4T directly without an adapter.

Learn More +

Precision adapter. Full E-Port Lite pass-through. M4D/M4TD native.

The JZ AD2 Mounting Bracket is a CNC-machined, high-strength aluminum adapter engineered to enable installation of the JZ AD2 Dual-Channel Airdrop System onto DJI Matrice 4D and 4TD drones. Resolving the interface incompatibility between the AD2 payload and the M4D airframe, the bracket provides a secure, integrated mounting solution with full E-Port Lite power delivery, communication, and control pass-through — while supporting simultaneous installation of additional M4D payloads.

Specifications

Vendor JZ
SKU DK.AC.0002.02
Material CNC-machined high-strength aluminum alloy
Interface DJI E-Port Lite (pass-through)
Required Payload JZ AD2 Dual-Channel Airdrop System
Compatible Aircraft DJI Matrice 4D (M4D), DJI Matrice 4TD (M4TD)
Installation Direct replacement of original M4D interface plate
Mounting Tool-less quick-release thumb screws

Key Features

  • Perfect M4D/M4TD Compatibility — Specifically engineered to adapt the JZ AD2 Airdrop System for DJI Matrice 4D and 4TD, resolving interface incompatibility without airframe modification
  • Full E-Port Lite Pass-Through — Maintains complete E-Port Lite power delivery, communication, and control capabilities for uncompromised payload function
  • Multi-Payload Support — Allows simultaneous installation of the AD2 alongside other M4D payloads such as megaphone and spotlight for multi-mission configurations
  • CNC-Machined Aluminum Construction — High-strength aluminum alloy delivers durability and lightweight performance with minimal impact on flight endurance
  • Tool-Less Quick-Release Installation — Thumb screw mounting enables fast, secure attachment and removal without additional tools in the field
  • Low-Profile Design — Ultra-lightweight, minimal footprint preserves M4D flight performance and payload capacity
  • DJI Pilot 2 & RC Compatible — Fully integrates with DJI Pilot 2 App and remote controller for complete payload control

Usage Notes

  • JZ AD2 Airdrop System sold separately — not included with this bracket
  • Required for M4D/M4TD only — AD2 fits M4E/M4T directly without this adapter

Applications

  • JZ AD2 Airdrop System integration on DJI M4D/M4TD
  • Multi-payload configurations on DJI Matrice 4D/4TD
  • Search and rescue aerial delivery operations
  • Public safety and tactical drone deployments
  • Industrial and infrastructure payload operations
