JZ T160 Matrix Lamp – Professional Aerial LED Searchlight for DJI Matrice 300/350 RTK- Demo Unit

JZ T160 Matrix Lamp – Professional Aerial LED Searchlight for DJI Matrice 300/350 RTK- Demo Unit

$ 2,499.00 $ 1,499.00 Guardar $ 1,000.00
/
Los gastos de envío se calculan en la pantalla de pagos.
Supplier: JZ
  • Stock bajo - quedan 1 artículo
  • Pedido pendiente, envío pronto
Toggle HubSpot Form

Overview

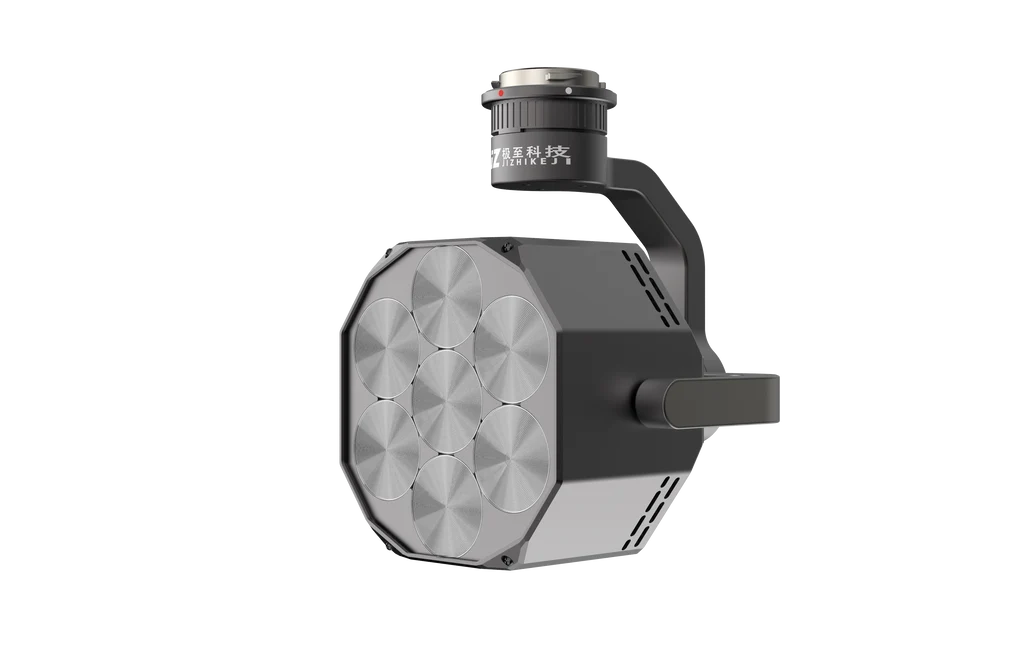

The JZ_T160 Matrix Lamp is a 160 W professional aerial LED searchlight built for the DJI Matrice 300/350 RTK. Featuring a three-axis stabilized gimbal, seven-group LED matrix, and 25,000-lumen output, it delivers precision illumination across 3,400 m² at 150 m altitude. IP44-rated and DJI Pilot 2 native — engineered for public safety, emergency response, and industrial night operations.

25,000 Lumens. Three-Axis Precision. Total Night Dominance.
The JZ_T160 combines a seven-group LED matrix with a three-axis stabilized gimbal to deliver up to 25,000 lumens of steerable, rock-steady aerial light. With ±0.01° angular jitter and full 360° yaw control, every beam lands exactly where the mission demands — at 50, 100, or 150 meters of effective range.

Camera-Light Linkage — Pairs natively with Zenmuse series cameras for automatic light-follow operation. Your lens and your beam move as one, eliminating blind spots during critical night reconnaissance.

Multi-Mode Illumination — Steady combined output, strong-light burst with adjustable intensity and frequency, and flash mode. Switch instantly from DJI Pilot 2 without breaking mission flow.

Built for the Field — IP44 weather resistance, intelligent variable-speed cooling, and tethered power compatibility make the T160 ready for extended operations in rain, dust, and extreme temperatures from –10 °C to 50 °C.

Learn More +

⚠ Demo Unit — This listing is for a demo unit. The item has been used for evaluation and demonstration purposes and may show minor cosmetic wear. Full functionality is intact.

Illuminate large areas from altitude with surgical precision. The JZ_T160 Matrix Lamp is a professional three-axis gimbal LED searchlight engineered for the DJI Matrice 300 RTK and Matrice 350 RTK — delivering up to 25,000 lumens, an effective range exceeding 150 meters, and coverage beyond 3,400 m². Built for public safety, emergency response, and industrial night operations.

Key Features

  • Seven-group LED matrix — Combined lighting mode with adjustable brightness for flexible, high-output illumination.
  • Three-axis stabilized gimbal — Full 360° directional control with ±0.01° angular jitter for rock-steady aerial lighting.
  • Camera + light linkage — Seamlessly pairs with Zenmuse series cameras for automatic light-follow operation.
  • Multiple lighting modes — Steady combined, strong-light burst (adjustable intensity and frequency), and flash. Switch instantly via DJI Pilot 2.
  • Intelligent cooling — Variable-speed fan auto-adjusts to load temperature for reliable long-duration performance.
  • IP44 rated — Weather-resistant construction ready for rain and dusty field environments.
  • Tethered power compatible — Supports extended operations when paired with a tethered power system.

Technical Specifications

Specification Details
Model JZ_T160
Interface DJI SkyPort V2
Dimensions 123 × 146 × 120 mm
Weight 580 g
Protection Rating IP44
Compatible Platforms Matrice 300 RTK, Matrice 350 RTK
Rated Power 160 W
Maximum Power 240 W
Lighting Angle 25°
Beam Performance 50 m → 380 m² / 46 lux · 100 m → 1,500 m² / 13 lux · 150 m → 3,400 m² / 7 lux
Gimbal Axes 3-axis (pitch / roll / yaw)
Operating Temperature –10 °C to 50 °C
Storage Temperature –20 °C to 60 °C

Ideal Applications

  • Firefighting & Search and Rescue — Multi-angle scene illumination for night reconnaissance and active operations.
  • Public Security & Law Enforcement — Flexible aerial lighting for investigations, patrols, and pursuit support. Strong-light burst delivers effective deterrence.
  • Infrastructure Inspection — Large-area mobile aerial lighting for night troubleshooting and emergency repair of power lines and pipelines.

Seamless DJI Integration

Fully compatible with DJI Pilot 2. Control both the aircraft and the T160 from a single interface — no third-party software required — for safe, streamlined night missions.
