TrueView GO Handheld SLAM Scanners: NEO, GO 116S and GO 132S
The GeoCue TrueView GO family is a line of handheld mapping systems for seamless indoor and outdoor reality capture and high-definition 3D mapping. Each system fuses GNSS RTK/PPK, LiDAR and visual SLAM, and comes with GeoCue's LP360 Land software to process, colorize, QC and combine your scans with drone and mobile mapping data.
Models
-
TrueView GO NEO: smaller, lighter and more affordable with no moving parts. Next-generation 360° dome LiDAR at up to 1.15 million points/s with a 360° x 189° field of view, two 12MP cameras for 360° spherical imaging (optional 48MP mode), high-quality GNSS and an aerospace-grade IMU. Pairs with your phone (mount included) and uses a SmartHandle with integrated battery.
-

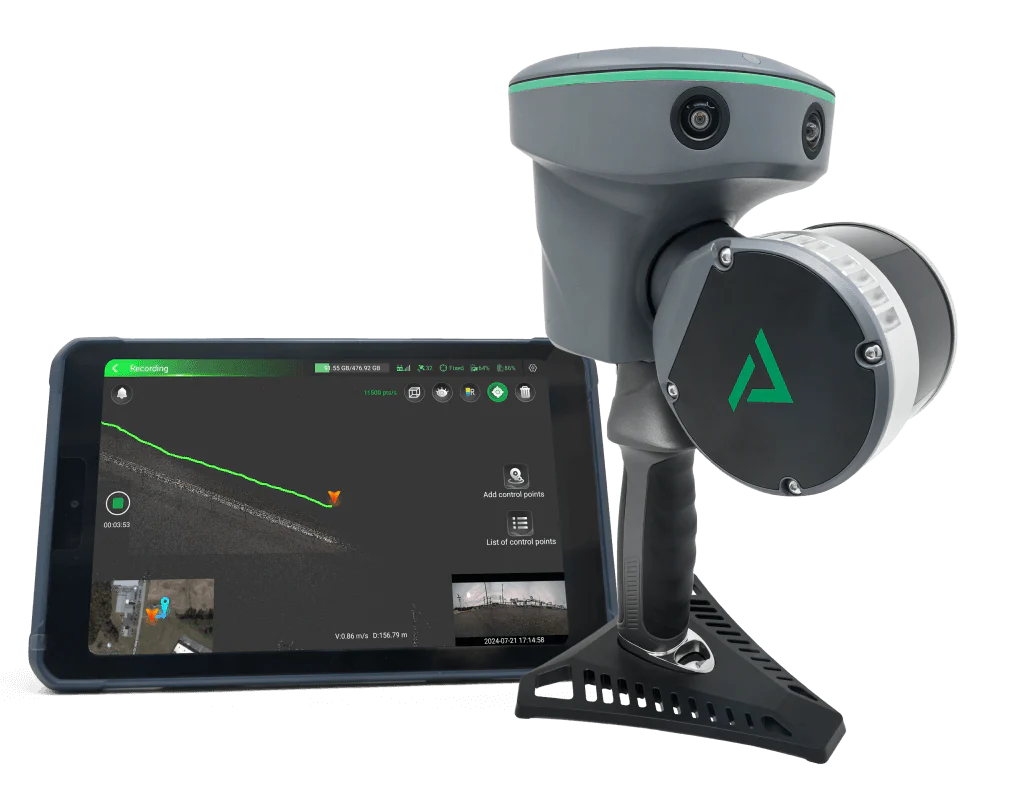

TrueView GO 116S: 16-channel rotating, survey-grade LiDAR (Hesai Pandar XT-16), three 5MP RGB cameras (15MP), high-quality GNSS, and a dedicated tablet with TrueView GO software for live viewing.
-
TrueView GO 132S: 32-channel LiDAR (Hesai M2X) with double the laser channels of the 116S, greater range and a better field of view for higher point density, plus three 5MP RGB cameras and the tablet.
Key Capabilities
-
GNSS RTK/PPK and SLAM fusion: a fourth-generation air dielectric GNSS antenna combined with LiDAR and visual SLAM
-
Works with weak or no GNSS: calculates coordinates from LiDAR and visual SLAM indoors and in urban canyons
-
Real-time viewing: see the point cloud live on the tablet or phone as you walk the site
-
Remote measurement: capture reference points without standing on them
-
Loop-free path planning: with GNSS coverage there's no need to walk loops for closure
-
LP360 Land: SLAM, denoising, colorization, QA/QC, registration and classification, with 2D, 3D, profile and immersive views
Purchase Options
-
Traditional: perpetual LP360 Land Basic or Standard. On the NEO, an annual maintenance fee for updates and support starts in year two
-
Flex (116S and 132S): lower upfront price with an annual LP360 Land subscription
- LP360 Land Standard is required for software add-ons such as Gaussian Splatting and 3D Mesh
Model Overview
| TrueViewGO NEO Traditional Basic |
Compact dome LiDAR handheld | Traditional (perpetual LP360 Land) | LP360 Land Basic | SKU: FTV1002299A00T |
| TrueViewGO NEO Traditional Standard |
Compact dome LiDAR handheld | Traditional (perpetual LP360 Land) | LP360 Land Standard | SKU: FTV1002300A00T |
| TrueView GO116S Flex Basic |
16-channel handheld | Flex (annual LP360 Land subscription) | LP360 Land Basic | SKU: FTV1001745A00T |
| TrueViewGO132S Flex Basic |
32-channel handheld | Flex (annual LP360 Land subscription) | LP360 Land Basic | SKU: FTV1001746A00T |
| TrueView GO116S Flex Standard |
16-channel handheld | Flex (annual LP360 Land subscription) | LP360 Land Standard | SKU: FTV1001663A00T |
| TrueViewGO132S Flex Standard |
32-channel handheld | Flex (annual LP360 Land subscription) | LP360 Land Standard | SKU: FTV1001664A00T |
| TrueView GO116S Traditional Basic |
16-channel handheld | Traditional (perpetual LP360 Land) | LP360 Land Basic | SKU: FTV1001747A00T |
| TrueView GO132S Traditional Basic |
32-channel handheld | Traditional (perpetual LP360 Land) | LP360 Land Basic | SKU: FTV1001748A00T |
| TrueView GO116S Traditional Standard |
16-channel handheld | Traditional (perpetual LP360 Land) | LP360 Land Standard | SKU: FTV1001665A00T |
| TrueView GO132S Traditional Standard |
32-channel handheld | Traditional (perpetual LP360 Land) | LP360 Land Standard | SKU: FTV1001666A00T |
Applications include construction, architecture, scan to BIM, heritage conservation, forestry, asset and infrastructure management, public safety and forensics, and underground mining. Maverick is an official GeoCue TrueView and LP360 distribution partner. Call 612.808.9838.
