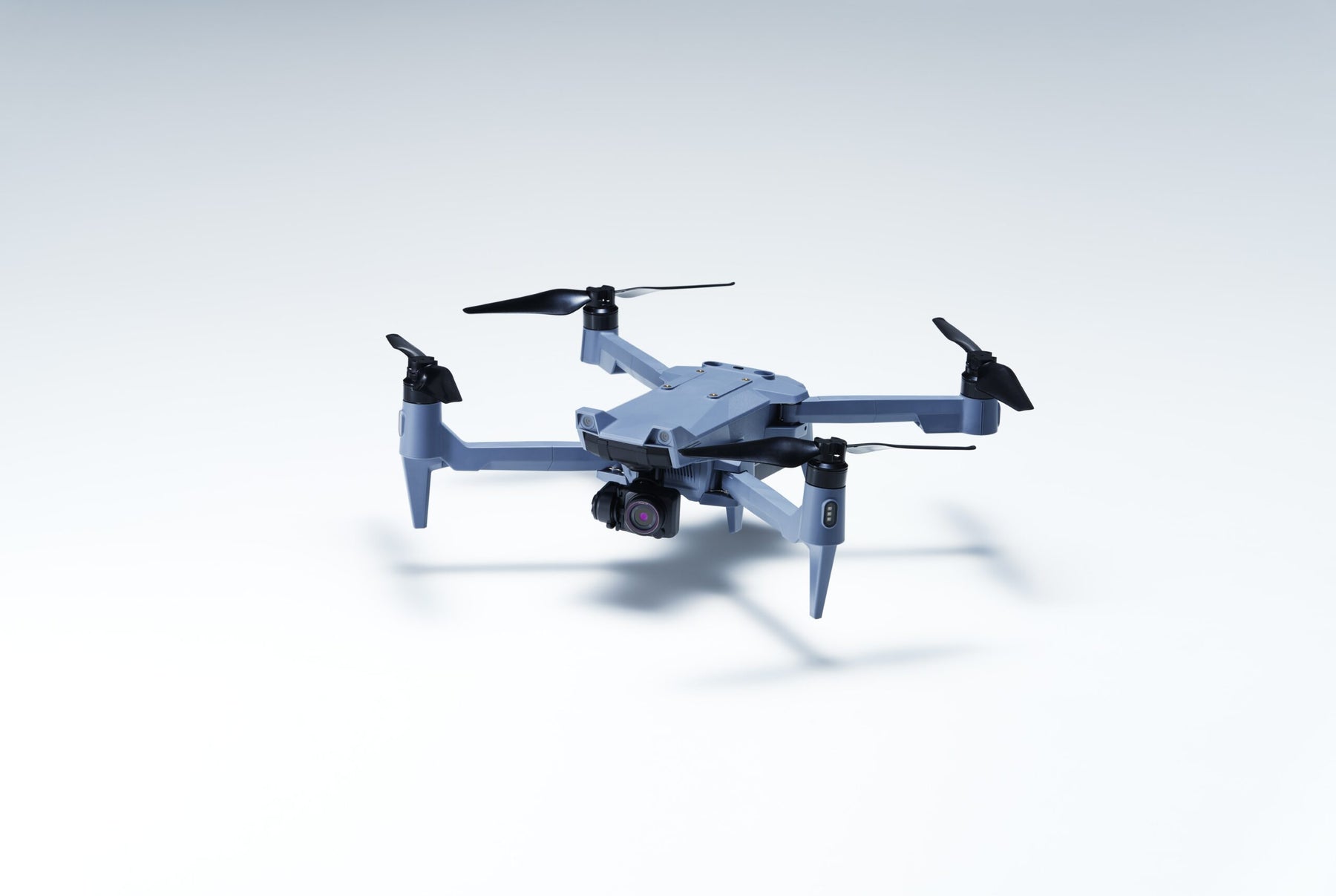

ACSL SOTEN foldable drone with standard camera

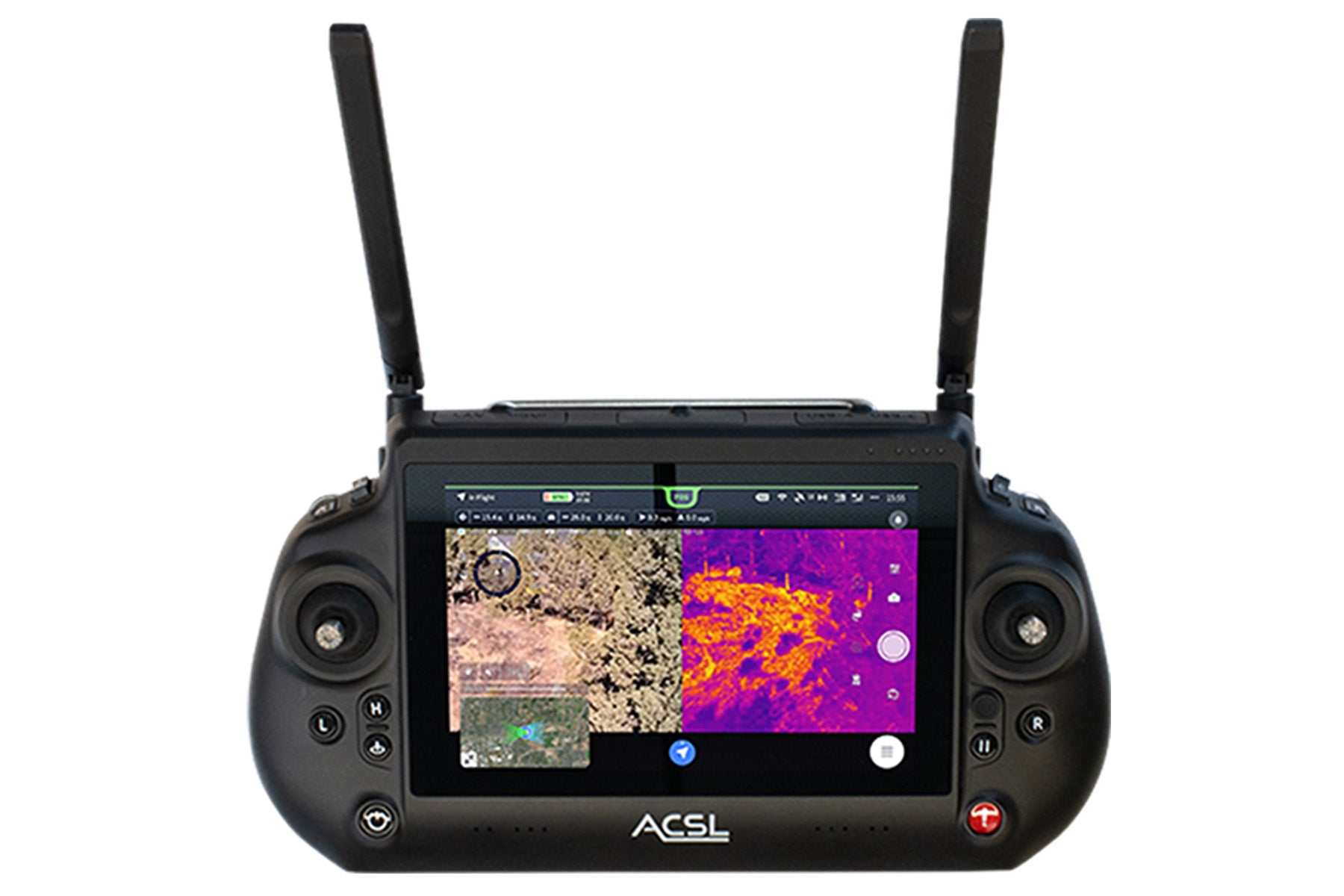

ACSL TAITEN smart controller with 7 inch display

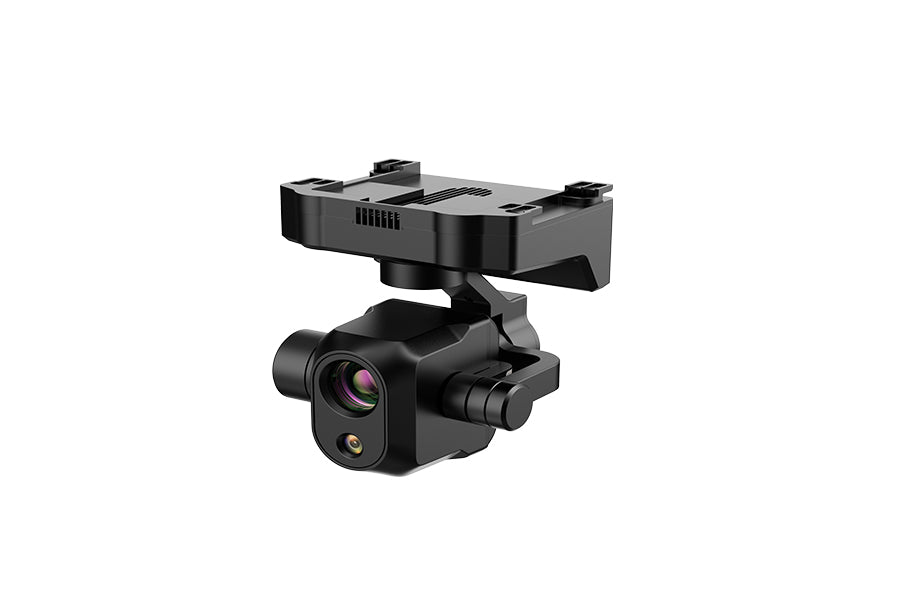

ACSL SOTEN high resolution thermal camera with Teledyne FLIR Hadron 640R

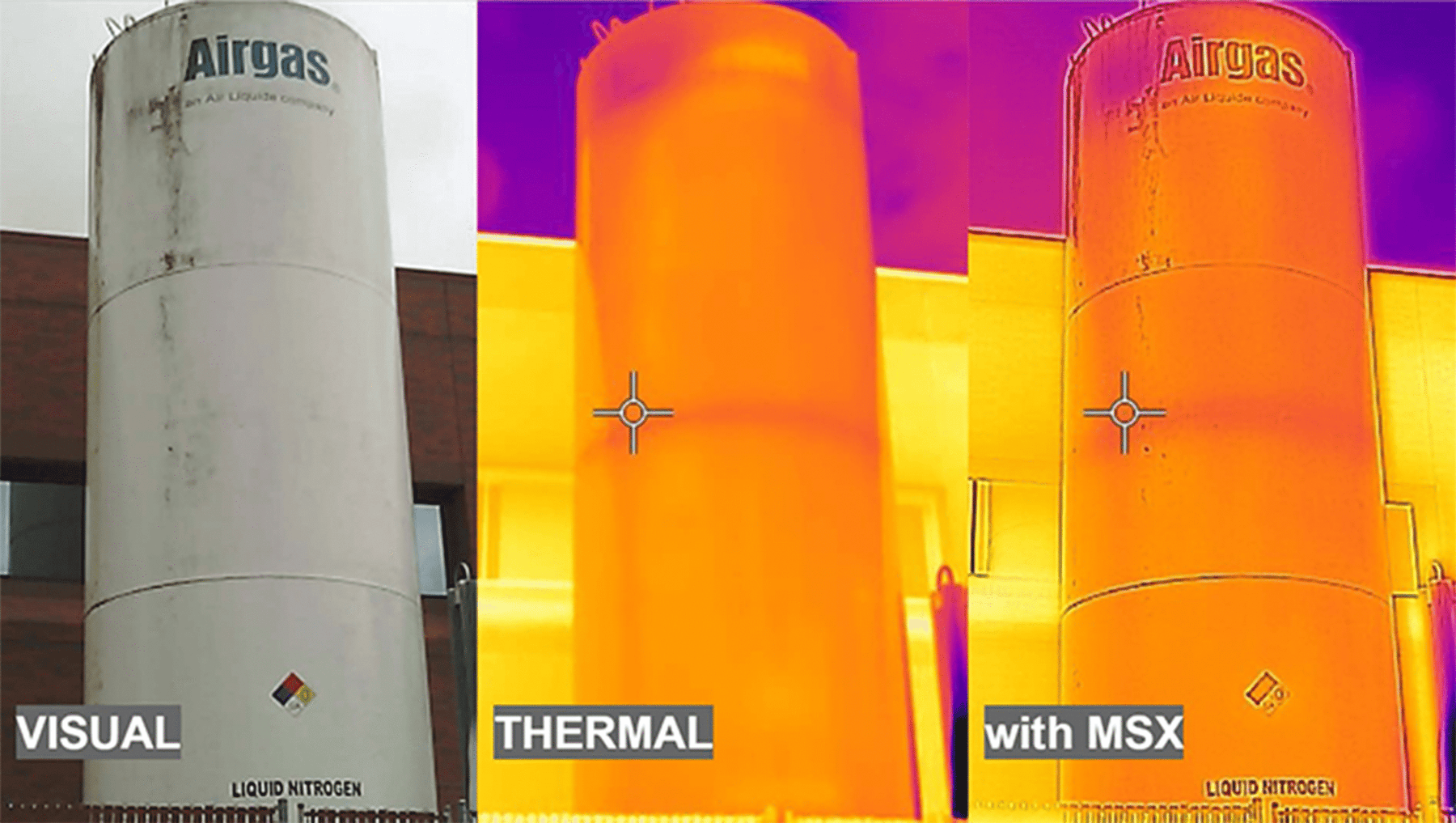

Visual, thermal and MSX thermal views from the ACSL SOTEN thermal camera
ACSL SOTEN foldable drone with standard camera
ACSL TAITEN smart controller with 7 inch display
ACSL SOTEN high resolution thermal camera with Teledyne FLIR Hadron 640R
Visual, thermal and MSX thermal views from the ACSL SOTEN thermal camera

ACSL SOTEN Thermal Bundle Plus with SAMO Thermal Camera

This is a special order item — not currently in stock.
Special order items are reserved through our sales team. Submit the form below and a Maverick representative will reach out to confirm availability, lead time, and next steps to secure your unit. A deposit may be required to begin the order. Prefer to talk now? Call us at (612) 808-9838.
Lead time varies by manufacturer. A deposit may apply and will be credited toward your final invoice.

The ACSL SOTEN Thermal Bundle Plus with SAMO Thermal Camera is a complete ACSL SOTEN system built around the foldable, NDAA-compliant SOTEN aircraft (1.72 kg, up to 25 minutes of flight, IP43, swappable payload bay). It is the Inspection Bundle Plus configuration with the high resolution SAMO thermal camera (Teledyne FLIR Hadron 640R, radiometric 640 x 512) for public safety, search and rescue and thermal inspection.

A Ready-to-Fly SOTEN System.
Aircraft, payload and controller selected as a package, from an authorized ACSL dealer.

Designed and Made in Japan. NDAA-compliant, with encrypted communications.

Swappable Payloads. Change cameras in the field.

Dealer Support. Quotes and training questions go to Maverick.

Learn More +

The ACSL SOTEN Thermal Bundle Plus with SAMO Thermal Camera is a complete ACSL SOTEN system built around the foldable, NDAA-compliant SOTEN aircraft (1.72 kg, up to 25 minutes of flight, IP43, swappable payload bay). It is the Inspection Bundle Plus configuration with the high resolution SAMO thermal camera (Teledyne FLIR Hadron 640R, radiometric 640 x 512) for public safety, search and rescue and thermal inspection.

Key Specifications

  • Weight with standard camera and battery: 1.72 kg (3.8 lb); maximum takeoff weight 2.0 kg (4.4 lb)
  • Flight time: up to 25 minutes with the standard camera, up to 29 minutes without a camera (8 m/s airspeed)
  • Foldable airframe: 637 x 560 mm unfolded including propellers, 162 x 363 mm folded
  • Maximum speed 15 m/s (33.5 mph); IP43 rating with camera, gimbal and battery installed; operating altitude up to 2,000 m
  • Obstacle detection with stereo vision cameras forward, up and down; visual odometry supports stable hover when GPS is unavailable

What's Included

  • Inspection Bundle Plus contents (aircraft, standard camera, 5 batteries, charger, extra props, TAITEN controller)
  • ACSL SOTEN High Resolution Thermal Camera (SAMO)

Good to Know

  • Bundle contents come from distributor listings. Maverick confirms the exact configuration on your quote.

Maverick is an authorized ACSL dealer. Specifications are from ACSL published documents (acsl-usa.com, product.acsl.co.jp) and may change without notice.
