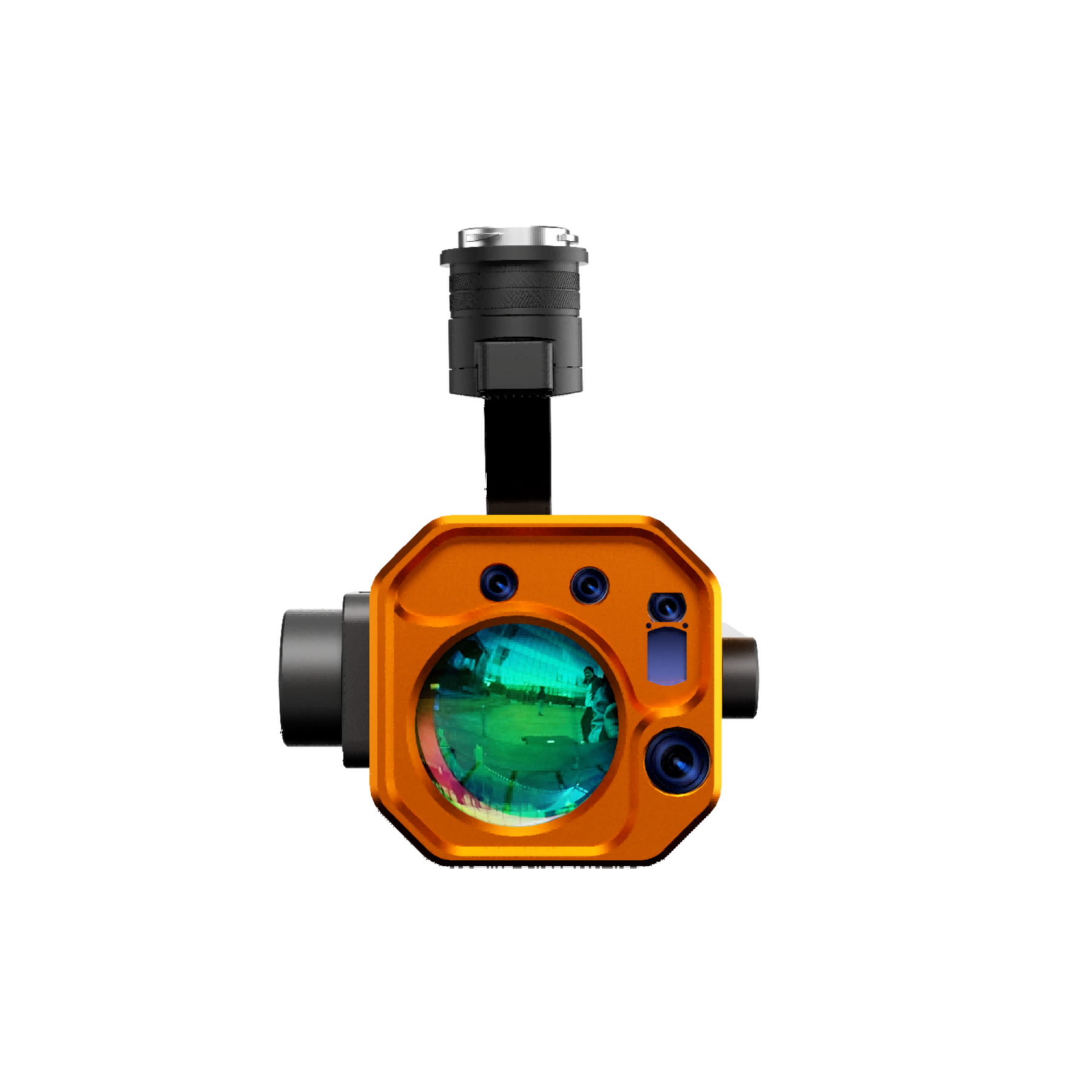

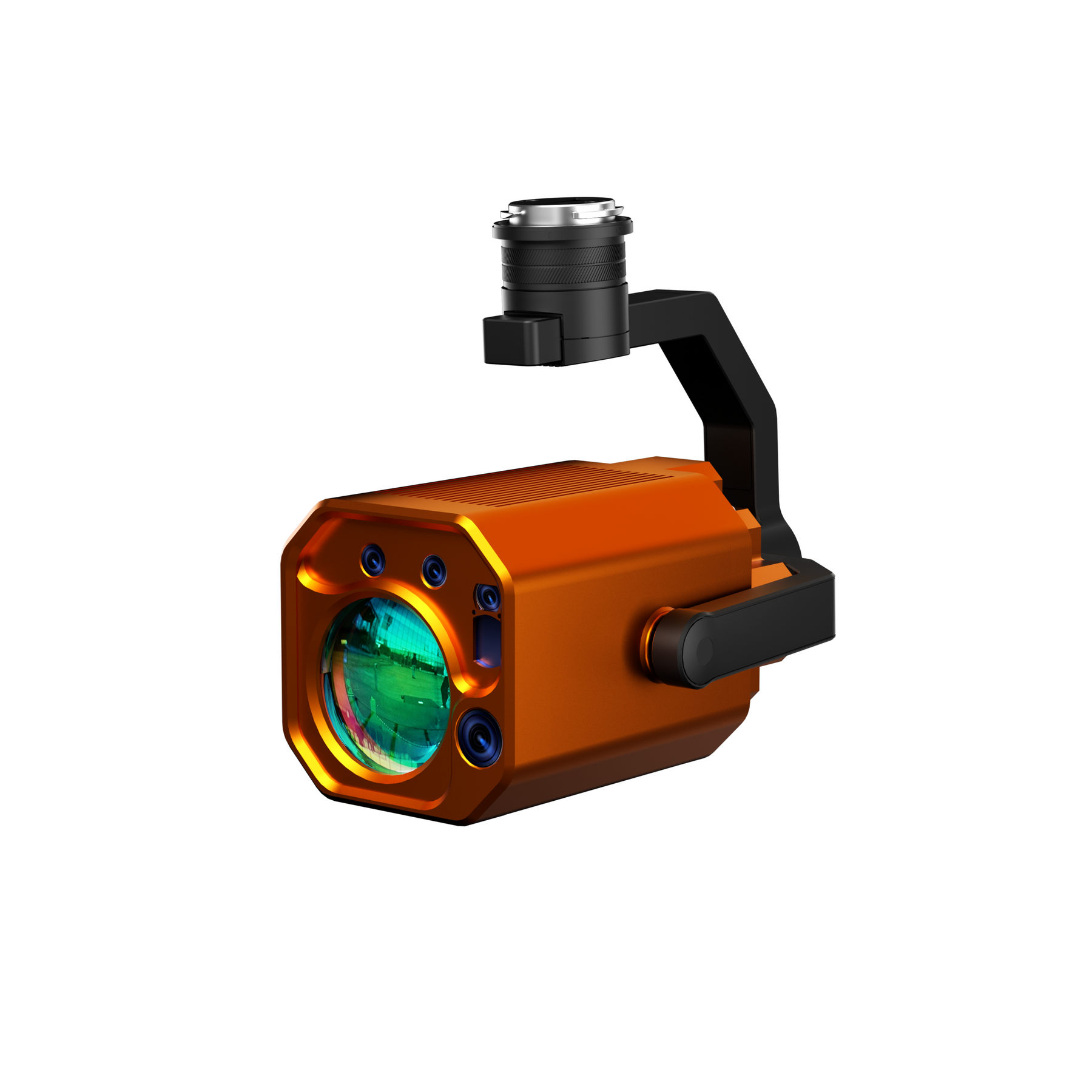

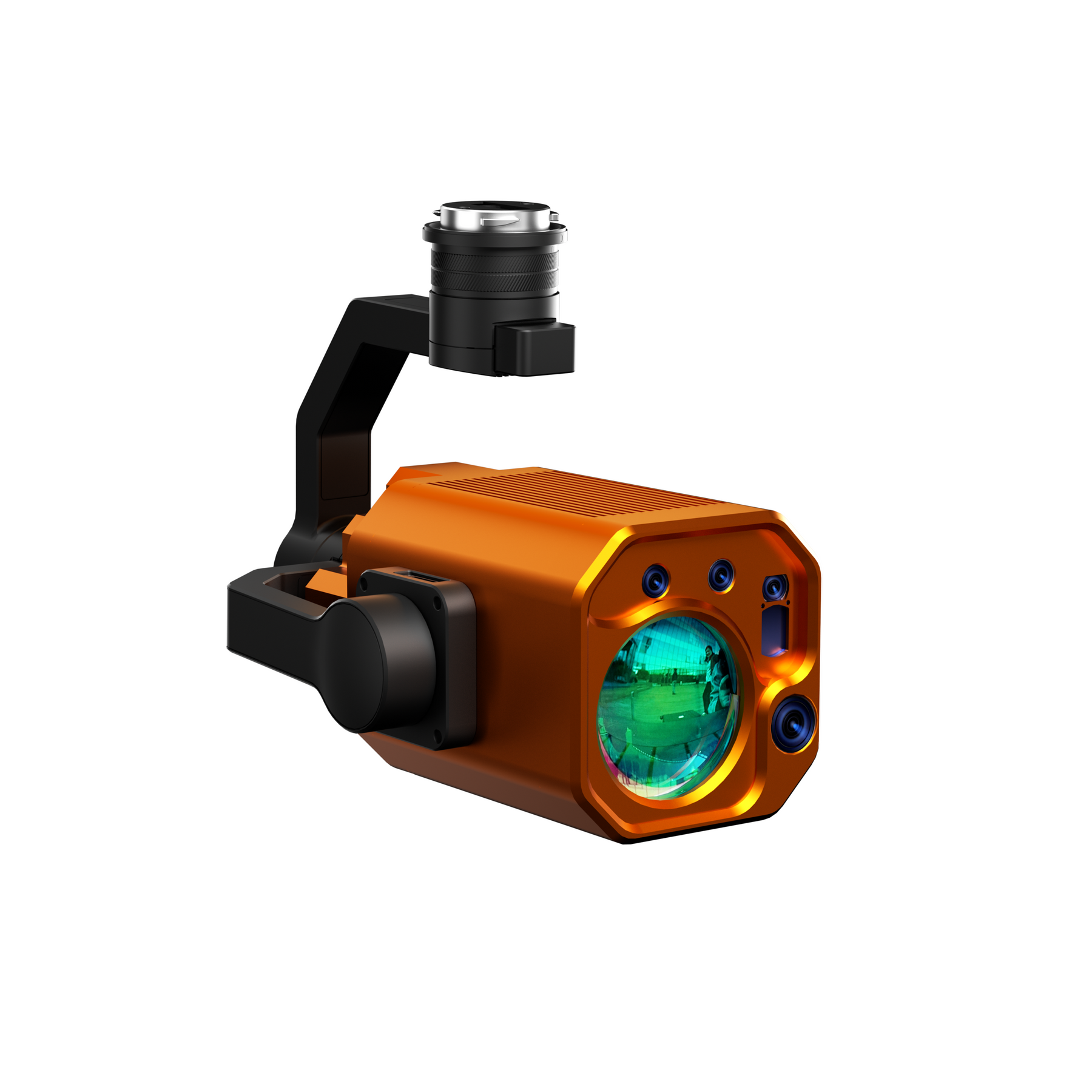

BL-CH4 400: Drone-based Methane Detection Sensor for DJI M350/M400
The BL-CH4 400 is a light-weight, high-sensitivity gas detector based on Tunable Diode Laser Absorption Spectroscopy (TDLAS), which enables rapid identification of methane from up to 300 m away. The device cleverly combines the detection laser with the precise calibration of the visible light sensor to achieve accurate visual inspection; cooperating with the intelligent stabilization control technology of the gimbal, it can quickly provide users with crucial information to help users grasp the opportunity, and improve the perception ability and operation efficiency to a new level.
Key performance
Equipped with a professional surveying and mapping lens, BL-CH4 400 has extraordinary performance during flight mission.
- 300 m telemetry distance (300 m version)
- 5 ms response speed
- Precise location of leak point
- Monitoring data is sent to the cloud in real time
Two versions: 300 m and 150 m detection range. Both share the same airframe, gimbal, camera and laser rangefinder.
Specifications
| Working principle | TDLAS |
|---|---|
| Target gas | CH₄ |

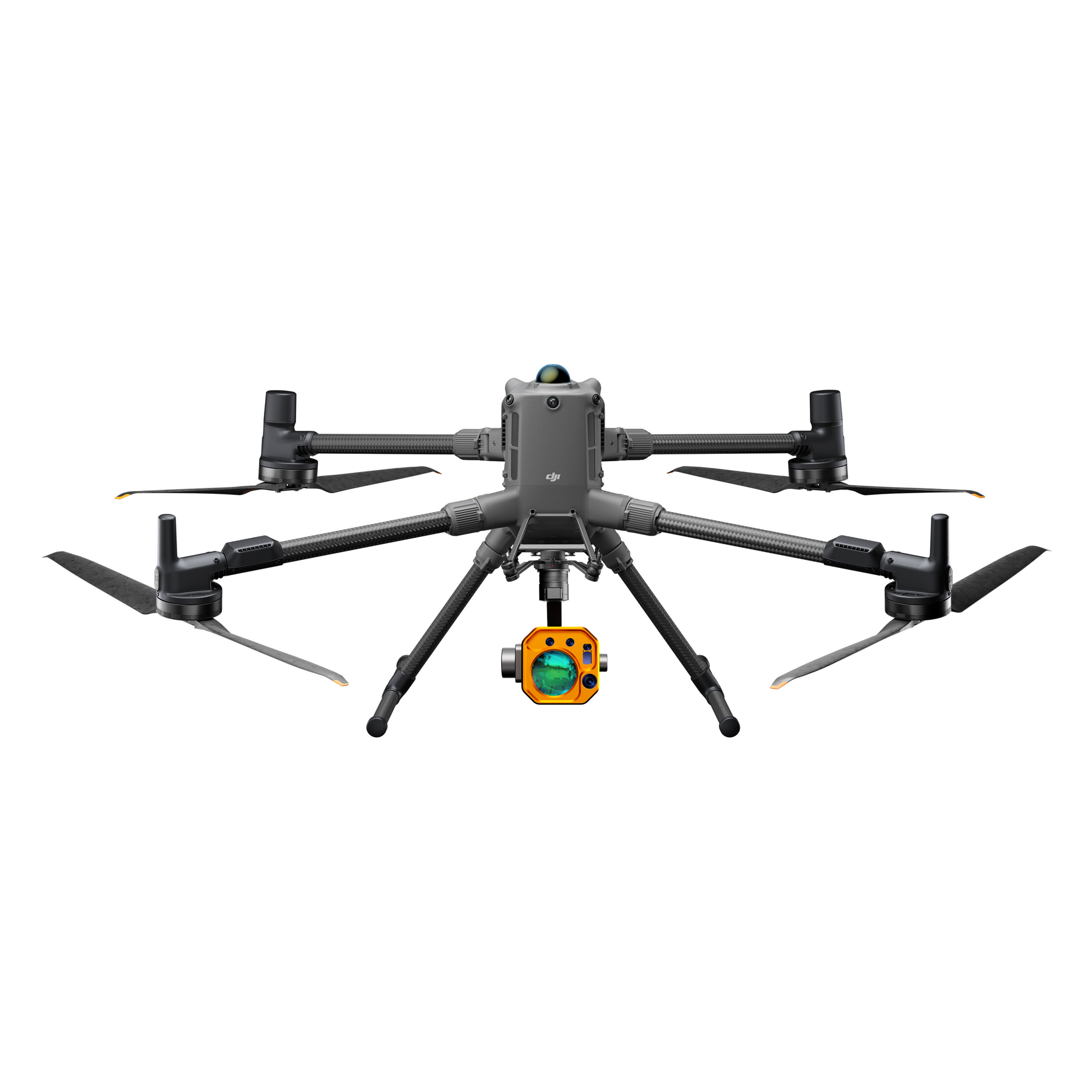

| Supported platforms | DJI M350/M400 and customization |
| Interface | X-Port |
| Gimbal type | 3-axis stability enhancement (Pitch, Roll, Yaw) |
| Rotation range | Pitch +30° to -95°, Roll ±60° |
| Camera | 13MP |
| Video resolution | FHD 1920 x 1080 at 30 fps |
| Laser rangefinder | 1.2 km, real-time target coordinates |
| Response speed | 5 ms |
| Sensitivity | 1 ppm·m |
| Concentration range | 0 to 99999 ppm·m |
| Accuracy | ±10% (100 to 50000 ppm·m) |
| Detection range, 300 m version | 300 m (90% diffuse reflectivity target, 15,000 ppm·m CH₄, static level detection) |
| Detection range, 150 m version | 150 m (same test conditions) |
| Infrared detection laser | Class 3R (avoid direct eye exposure) |
| Green indication laser | Class 3R (avoid direct eye exposure) |
| IP rating | IP55 |
| Rated current | < 1 A; typical supply current at 8 V: 0.3 A |
| Power consumption | 2 W |
| Weight | 770 g (with gimbal) |

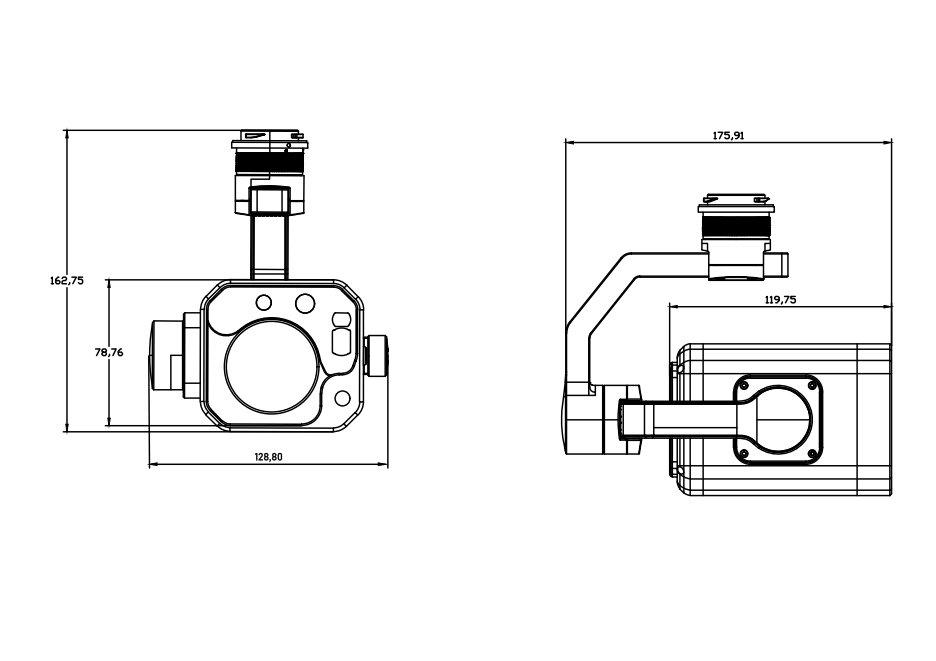

| Size (L x W x H) | 175.91 x 128.8 x 162.75 mm (with gimbal) |
| Working temperature | -20°C to 50°C |
| Working humidity | < 95% RH (+25°C) |
Regulatory alignment
- EU Methane Regulation (EU) 2024/1787: supports methane inspection workflows, LDAR documentation and inspection record management.
- OGMP 2.0: supports methane detection, emissions data collection and reporting workflows.
