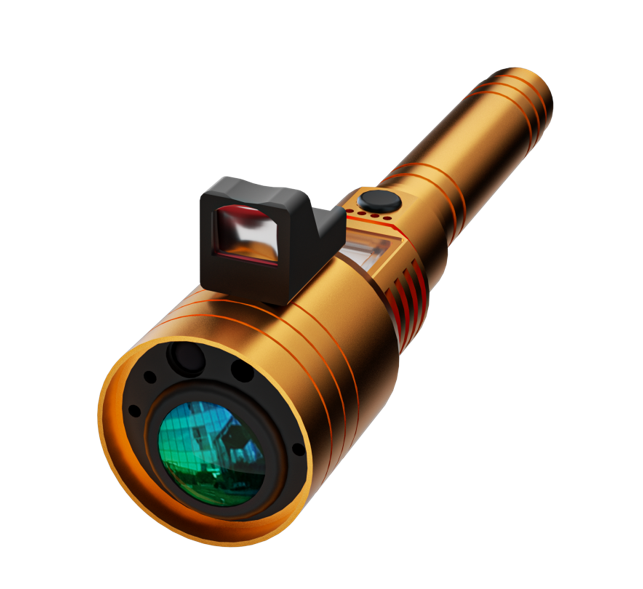

BLV BL-PT150 portable TDLAS methane detector

BLV BL-PT150 Portable TDLAS Methane Detector

BL-PT150

$ 4,200.00
/
Shipping calculated at checkout.
Supplier: BLV
  • In stock, ready to ship
  • Backordered, shipping soon
Learn More +

BL-PT150: Portable TDLAS Methane Detector

The BL-PT150 portable methane detector uses a tunable diode laser to emit light at a wavelength absorbed by methane. By measuring how much of that light is absorbed, the device infers methane concentration. It combines high precision with convenient field usability, making it an ideal tool for gas leak inspection, emergency response and routine maintenance.

Key performance

Portable TDLAS methane detectors offer a combination of high precision, safety and convenience, making them indispensable tools for utilities, oil and gas operators, and environmental monitoring teams seeking efficient and reliable methane leak detection.

  • Detection distance: up to 150 m
  • Response time: 20 ms
  • Light weight: 870 g
  • Discrepancy: ±10%

Specifications

Model BL-PT150
Measuring Methane gas
Measuring range 0 to 99,999 ppm·m or higher (remote detection)
Maximum measuring distance 0 to 150 m (90% diffuse reflectivity target, 15,000 ppm·m CH₄, static level detection)
Sensitivity 5 ppm·m
Response speed 15 ms
Alarm type Visible, audible and vibration (via app on phone)
Measuring type Laser beam
Infrared detection laser Class 1 (eye safe)
Green indication laser Class 3R (avoid direct eye exposure)
Ingress protection IP68
Explosion-proof class Ex ib IIC T4 GB
Sensor life 10 years
Display OLED
Extra feature Only responds to methane
Battery Rechargeable lithium-ion
Working time Minimum 10 hours
Accessories Charger, belt, screen cover
Warranty One year
Detection discrepancy ±10% (1000 to 100000 ppm·m)
Power consumption 2.5 W
Operating temperature -20°C to 50°C
Weight 870 g
Size (L x W x H) 292 x 65 x 65 mm

Regulatory alignment

  • EU Methane Regulation (EU) 2024/1787: supports methane inspection workflows, LDAR documentation and inspection record management.
  • OGMP 2.0: supports methane detection, emissions data collection and reporting workflows.
