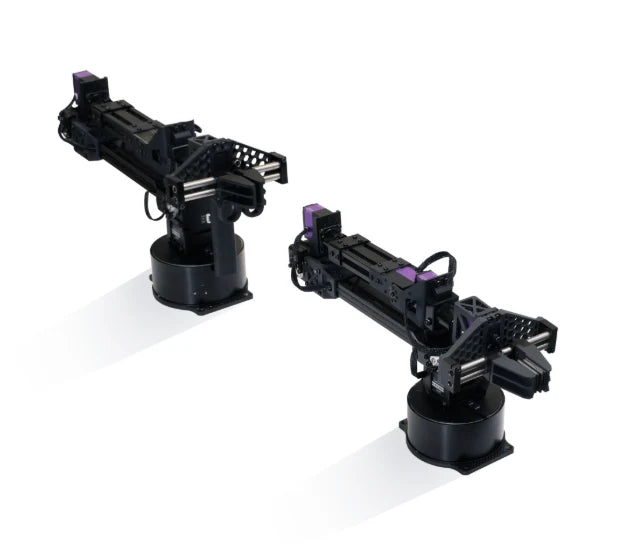

Unitree D1 Servo Robot Arm Kit

Unitree D1 Servo Robot Arm Kit

This is a special order item — not currently in stock.
Special order items are reserved through our sales team. Submit the form below and a Maverick representative will reach out to confirm availability, lead time, and next steps to secure your unit. A deposit may be required to begin the order. Prefer to talk now? Call us at (612) 808-9838.
Lead time varies by manufacturer. A deposit may apply and will be credited toward your final invoice.

The Unitree D1 Servo Robot Arm Kit is a 6-DOF precision robotic arm with a 600mm maximum reach, Ethernet (RJ45) control interface, and a full joint range of ±90° to ±135° across all six axes. Engineered for research, automation, and custom robotic system integration — built by the team behind the G1 humanoid and B-series quadrupeds.

Six Degrees of Freedom. Engineered for Precision.
The D1 Servo Robot Arm Kit brings Unitree's robotics engineering expertise to the tabletop. Its 6-DOF joint architecture delivers a full range of motion across all six axes — from ±90° on the mid-range joints to ±135° on the base and wrist — enabling complex manipulation sequences, precise end-effector positioning, and repeatable task execution. The Ethernet (RJ45) control interface provides a robust, low-latency communication link for integration with research platforms, custom controllers, and automation software stacks. With a 600mm maximum reach and 500g payload capacity, the D1 is sized for real-world manipulation tasks while remaining compact enough for lab and bench deployment. Whether you're developing manipulation algorithms, building a pick-and-place system, or integrating a robotic arm into a larger platform, the D1 delivers the performance and flexibility to move your work forward.

Full 6-DOF Joint Architecture — Six independently actuated joints with a range of ±90° to ±135° deliver the reach, dexterity, and repeatability required for complex manipulation tasks and research applications.

Ethernet Control Interface — RJ45 (ETH) control communication provides a robust, low-latency connection for integration with research platforms, custom software stacks, and automation control systems.

Research & Automation Ready — 600mm maximum reach, 500g payload capacity, and a compact form factor make the D1 ideal for tabletop automation, pick-and-place systems, HRI research, and university robotics labs.

Learn More +

6-DOF Precision. Ethernet Control. Research-Ready.

The Unitree D1 Servo Robot Arm Kit is a high-performance 6-degree-of-freedom robotic arm engineered for research, automation, and advanced manipulation applications. With a 600mm maximum reach, Ethernet (RJ45) control interface, and a full joint range spanning ±90° to ±135° across all six axes, the D1 delivers the precision and flexibility demanded by serious robotics development teams.

Compact, capable, and built by Unitree — the same team behind the G1 humanoid and B-series quadrupeds — the D1 Servo Robot Arm Kit is designed to integrate into research platforms, automation rigs, and custom robotic systems with minimal friction.

Key Specifications

  • Degrees of freedom: 6
  • Payload capacity: 500g (ideal)
  • Maximum arm span: 600mm (excluding gripper) / 715mm (including gripper)
  • Power requirement: 24V, 2.5A nominal (5A max)
  • Power consumption: 60W
  • Control interface: RJ45 Ethernet (ETH)
  • Power connector: DC 5.5-2.1

Joint Range of Motion

  • J1: ±135°  |  J2: ±90°  |  J3: ±90°
  • J4: ±135°  |  J5: ±90°  |  J6: ±135°

Ideal Applications

  • Robotics research and manipulation studies
  • Tabletop automation and pick-and-place systems
  • Human-robot interaction research
  • Educational and university robotics labs
  • Custom robotic system integration
