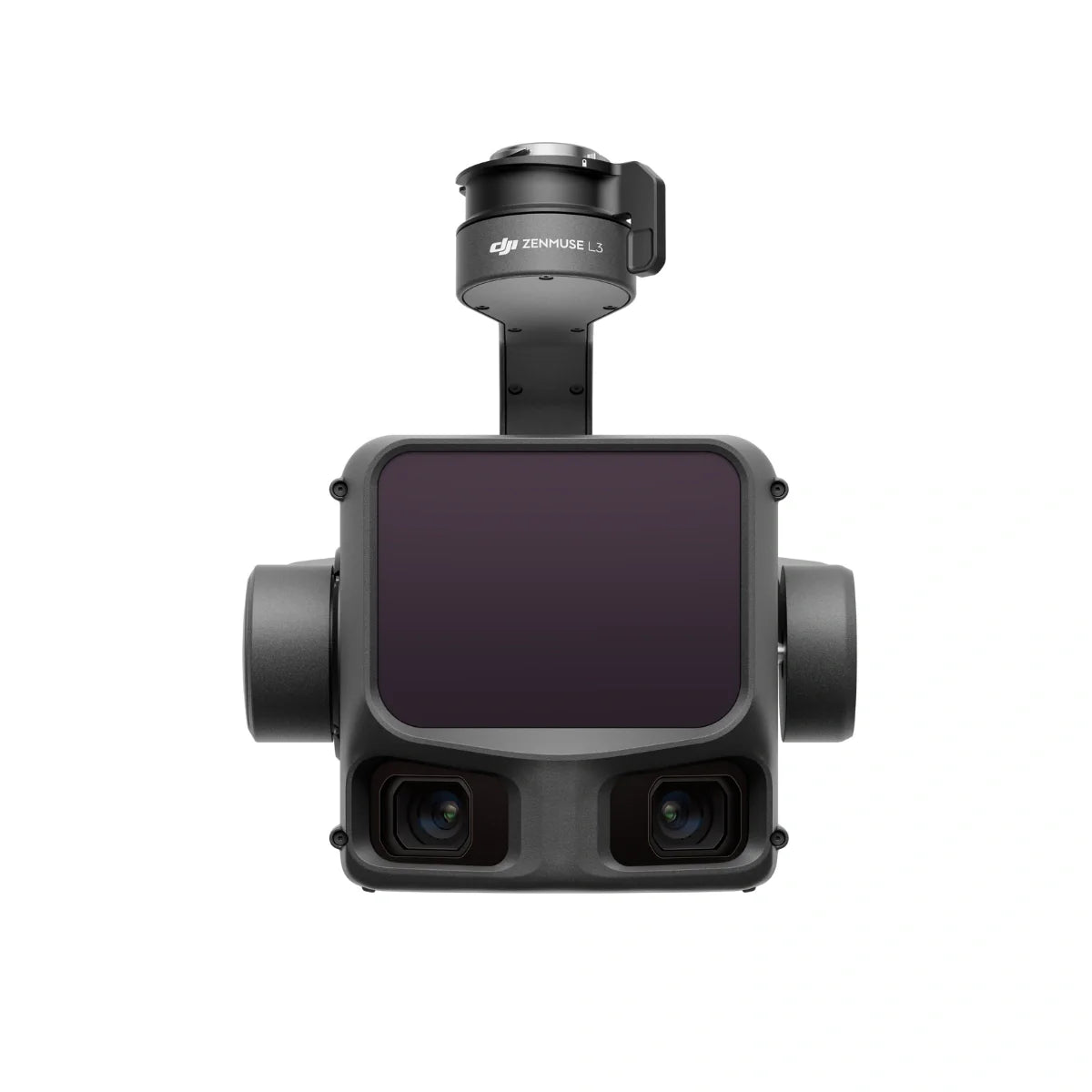

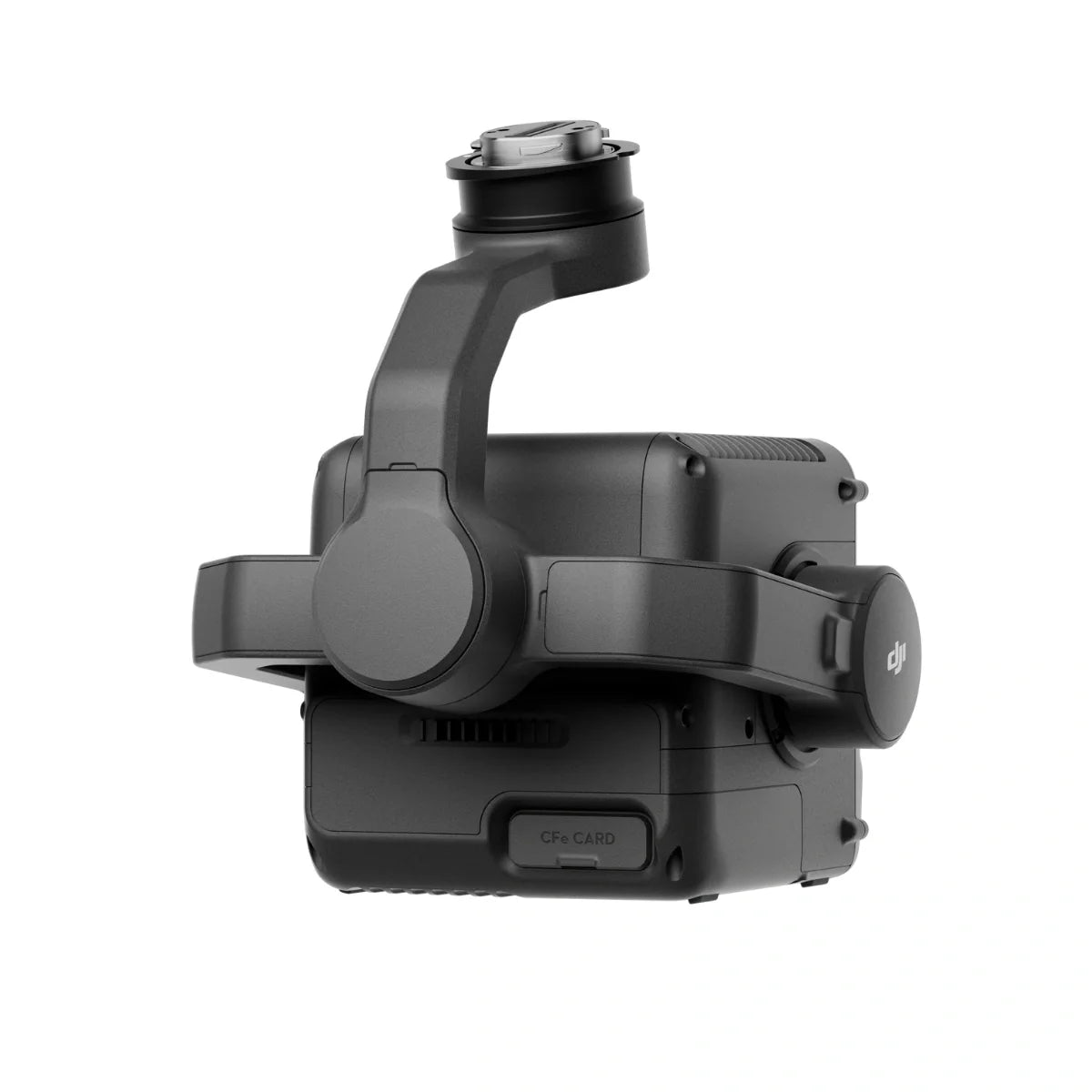

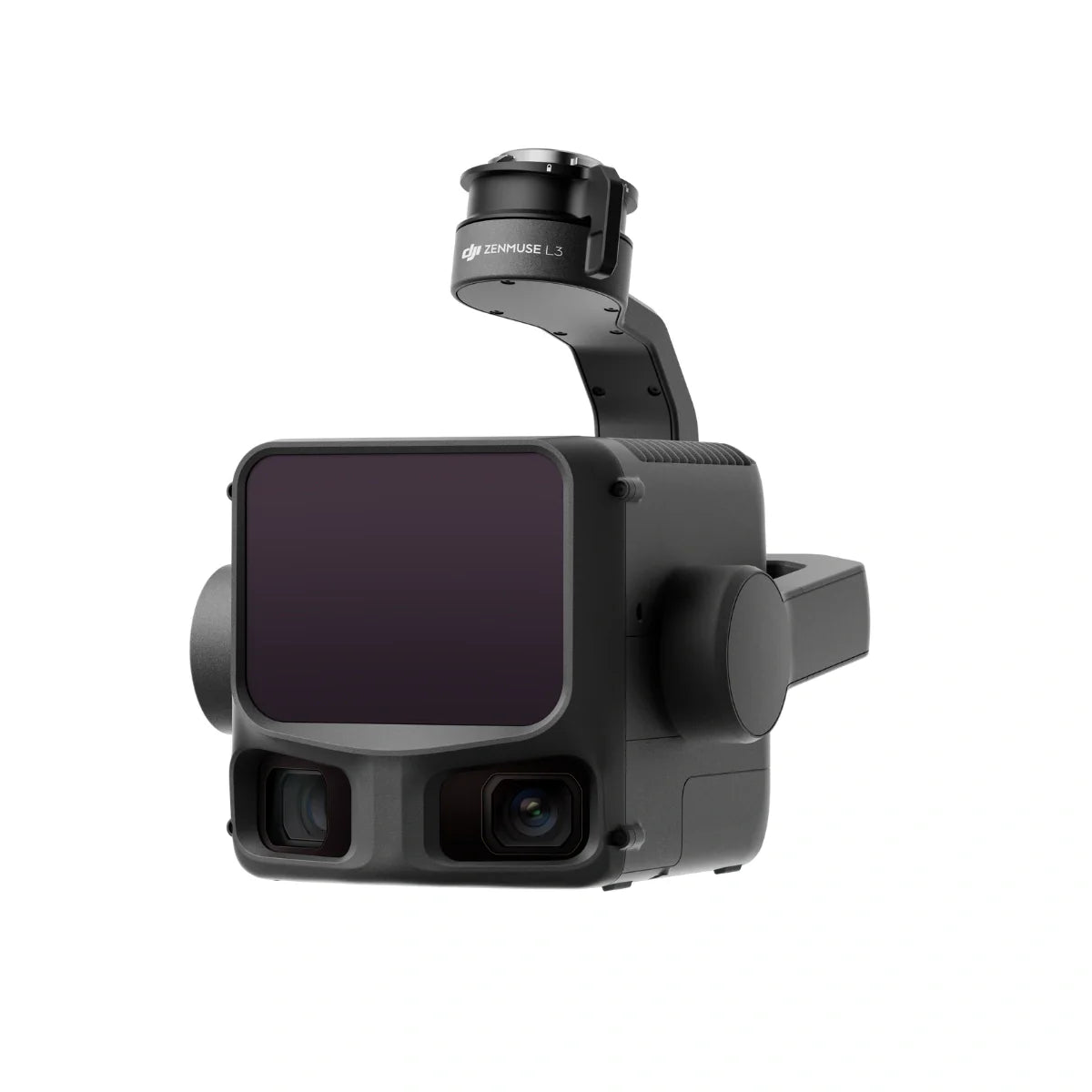

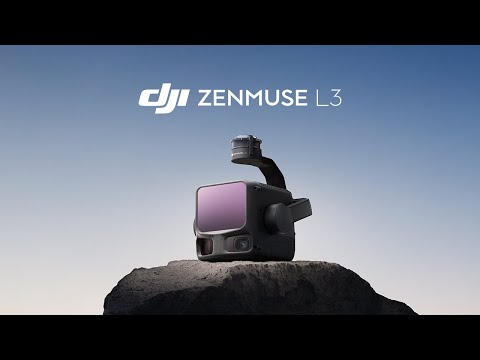

DJI Zenmuse L3 LiDAR & Imaging Payload

950 m LiDAR Range. Dual 100 MP Cameras. 2–4 cm Accuracy. The DJI Zenmuse L3.

The DJI Zenmuse L3 is a flagship long-range LiDAR and dual-camera imaging payload engineered for survey-grade aerial mapping, topographic modeling, infrastructure inspection, and digital twin creation. Featuring a 1535 nm Class 1 laser with up to 950 m range, dual 100 MP Micro 4/3 cameras, and a no-preheat high-precision IMU, the L3 delivers 2–4 cm point accuracy and up to 100 km² daily coverage — built exclusively for the DJI Matrice 400 RTK and integrated natively with DJI Terra and Modify.

Key Specifications

• 950 m LiDAR Range — 1535 nm Class 1 laser reaching 950 m @ 10% reflectivity (100 kHz) and 700 m @ 10% (350 kHz) for deep-range terrain and infrastructure capture
• 2–4 cm Point Accuracy — Survey-grade spatial precision with 0.01° pitch/roll and 0.02° heading IMU accuracy for engineering-grade mapping outputs
• Adjustable Scan Rate: 100 kHz – 2 MHz — Configurable point density for dense urban modeling, vegetation penetration, and large-area coverage
• Up to 16 Returns — 16 returns at 100/350 kHz, 8 at 1000 kHz, 4 at 2000 kHz for multi-layer canopy and complex structure capture
• Dual 100 MP Micro 4/3 Cameras — 107° FOV sensors delivering 1.2 cm GSD at 120 m AGL and 3 cm GSD at 300 m for photorealistic orthophotos and colorized point clouds
• Up to 100 km² Daily Coverage — High-efficiency mapping with up to 10 km² per flight for large-acreage survey operations
• No-Preheat IMU with Auto-Calibration — Instant mission readiness with in-flight auto-calibration for consistent, high-integrity data capture
• IP54-Rated Housing — Operates from -20°C to +50°C in rain, dust, and temperature extremes

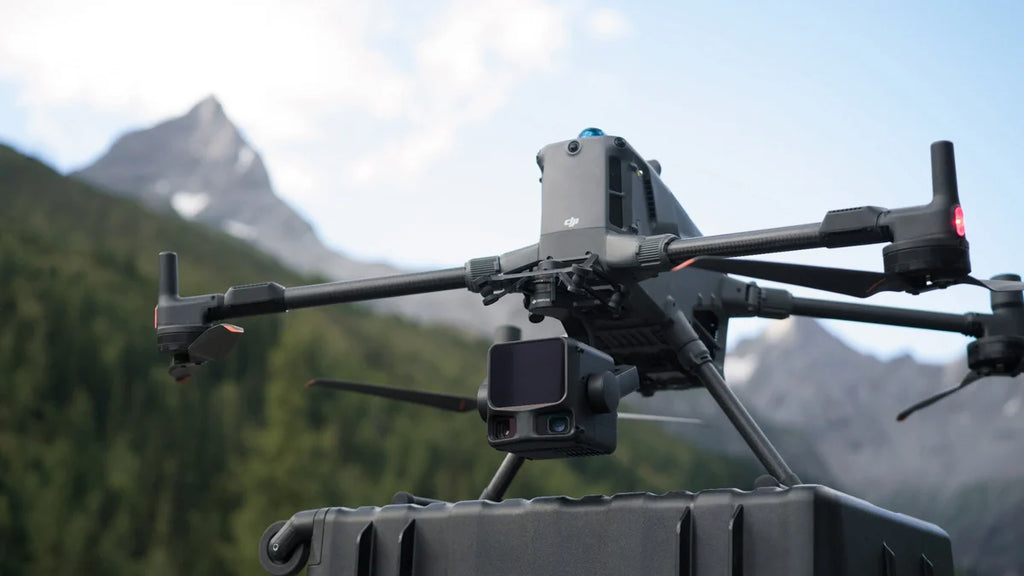

• Matrice 400 RTK Exclusive — DJI Skyport quick-plug single-port gimbal bracket; RTK/PPK fusion georeferencing; native DJI Terra and Modify integration

Full Specifications

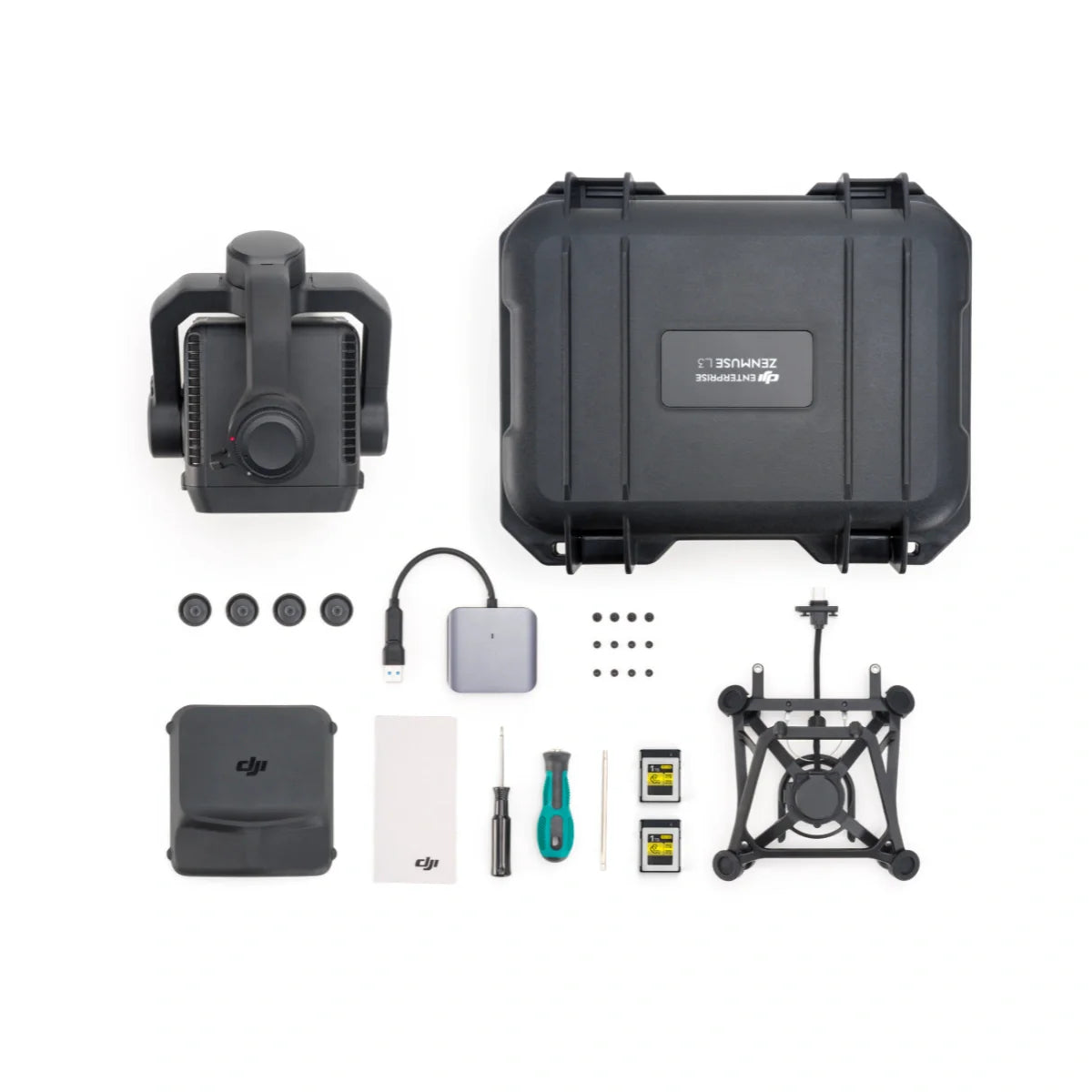

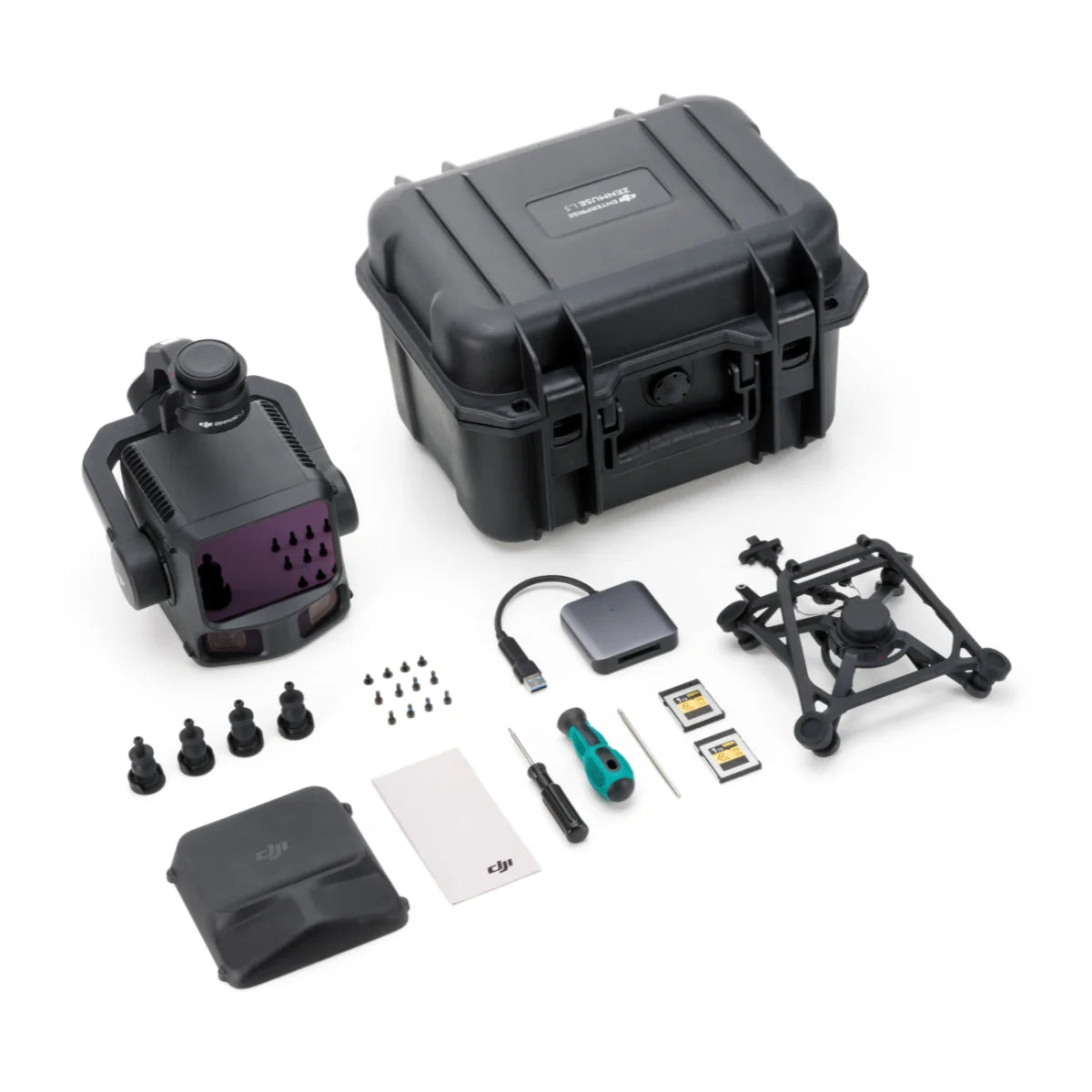

In the Box

• DJI Zenmuse L3 payload × 1
• CF-Express Type B card reader × 1
