24-LED RGB Strobe. 1 km Visibility. 65 g.
The JZ_S3 Mini packs 24 independent full-color LEDs into a 65 g clip-on form factor. A 90° wide beam angle and 1–25 Hz adjustable flash frequency ensure your Matrice 4 series drone is seen in any operational environment — day or night, fog or darkness.
Learn More +
JZ_S3 Mini Flash Light
Ultra-lightweight RGB warning light for DJI Matrice 4D / 4TD & Dock 3

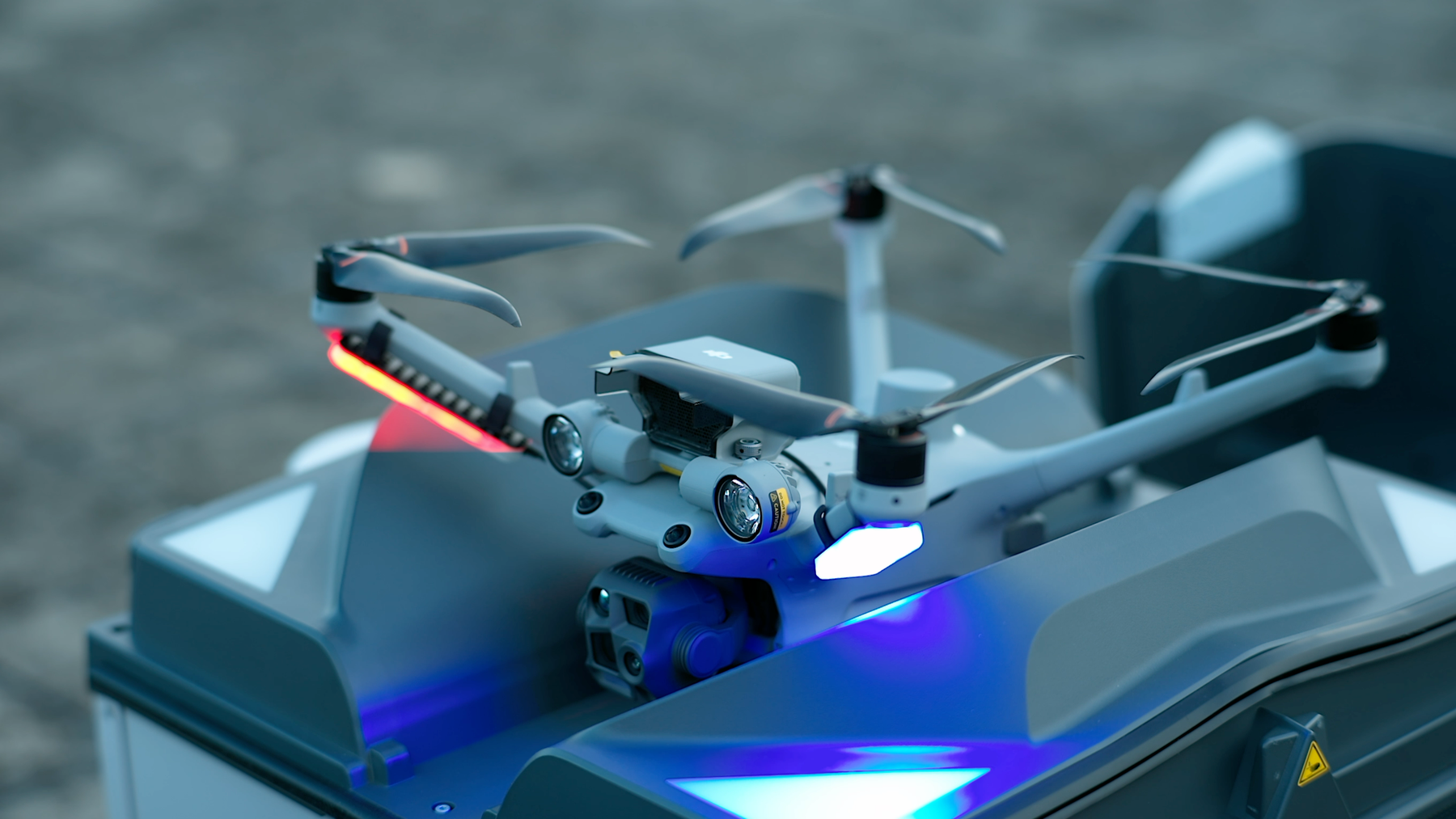

The JZ_S3 Mini is a 65 g RGB strobe payload purpose-built for the DJI Matrice 4D, Matrice 4TD, and Dock 3 ecosystem. Twenty-four independent full-color LEDs deliver multi-angle strobe signaling visible up to 1 km, with flash frequency adjustable from 1–25 Hz and five selectable colors. Native integration with DJI Pilot 2 and FlightHub 2 means full control from your existing ground station — no additional hardware required. Compatible with simultaneous megaphone and searchlight payloads via the DJI SDK E-Port Lite interface.
Key Features
- 24 independent RGB full-color LEDs — Red, green, blue, yellow, and white strobe modes
- 90° wide beam angle for excellent multi-angle visibility up to 1 km
- 10 W output with 1–25 Hz adjustable flash frequency

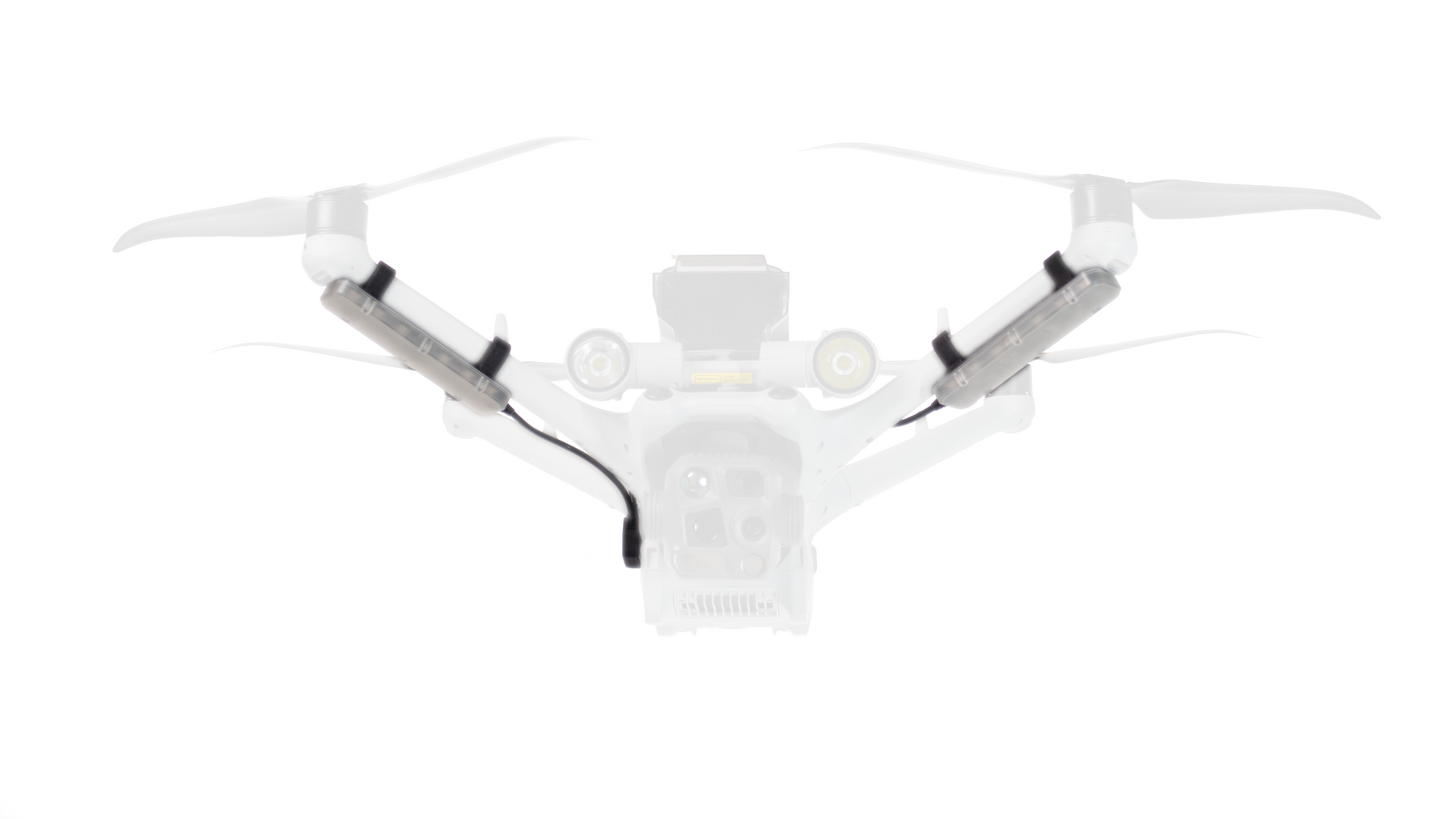

- Ultra-light 65 g design with clip-on quick-release mounting
- Dual control via DJI Pilot 2 and FlightHub 2
- Simultaneous payload use with megaphone and searchlight
- DJI SDK E-Port Lite electrical interface
Ideal Applications
- Public safety & law enforcement — High-visibility deterrence and target location support
- Emergency response & infrastructure repair — Nighttime warning to keep unauthorized personnel clear of hazardous work zones
- Maritime operations — Fog- and darkness-penetrating navigation and signaling
- Reservoir & critical infrastructure inspection — Clear self-identification and improved operational efficiency
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | JZ_S3 Mini |
| Compatible Aircraft | DJI Matrice 4D / Matrice 4TD |
| Electrical Interface | DJI SDK E-Port Lite |
| Dimensions | 109 × 29 × 12 mm |
| Weight | 65 g |
| Power | 10 W |
| Flash Colors | Red, Green, Blue, Yellow, White |
| Beam Angle | 90° |
| Flashing Frequency | 1–25 Hz |
| Installation | Clip-on quick release |
| Control | DJI Pilot 2 / FlightHub 2 |
| Operating Temperature | –10 °C to +50 °C |
| Storage Temperature | –20 °C to +60 °C |
Supported platforms: DJI Matrice 4D and DJI Matrice 4TD (optimized for DJI Dock 3 workflows).
