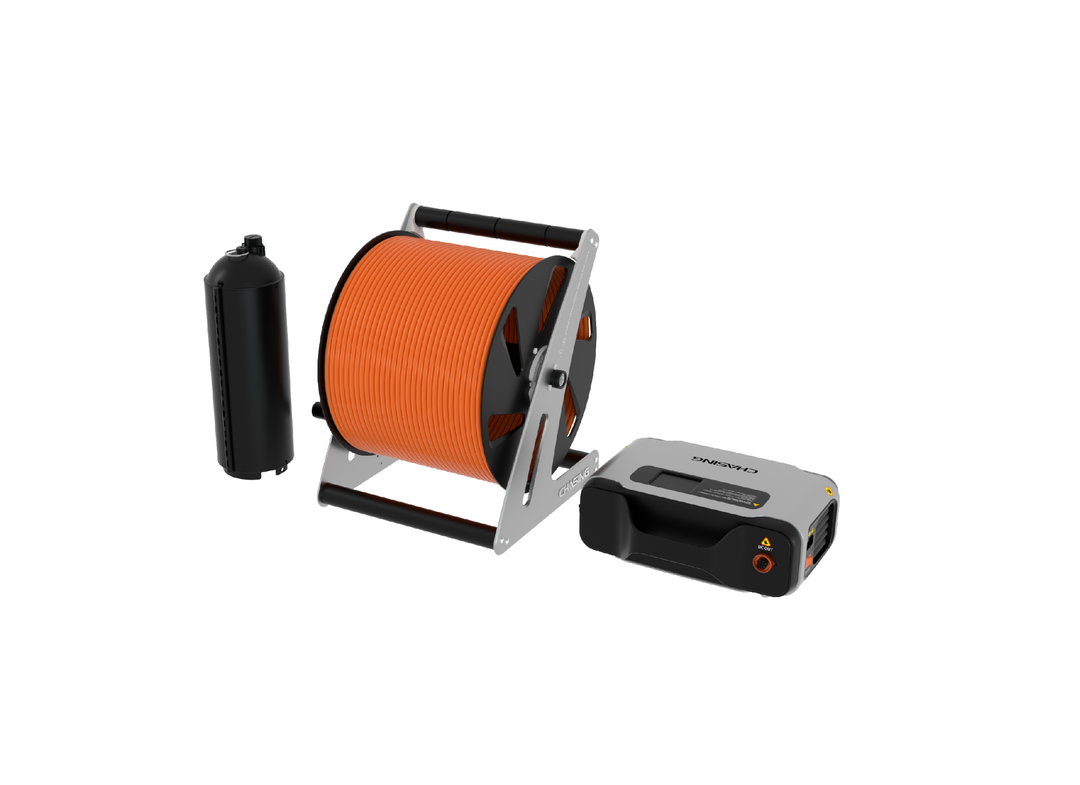

Continuous Power Supply, 24/7 Operation
The maximum output power of CHASING Shore-based Power Supply System (C-SPSS) is 1,500W, which is sufficient for the output power of 5 accessories at the same time, enabling 24/7 operation and greatly improving the operation efficiency.
-
Long-Distance Power Supply to Realize Unrestricted Operation
CHASING Shore-based Power Supply System is available in 100m or 200m cable for power transmission. The high-power cable is able to withstand up to 250kgf. With more firm and reliable characteristics, it can ensure safe operation even in harsh water environment.
-
Easy to Install, Plug-and-Play
CHASING Shore-based Power Supply System is designed with a battery compartment, which is easy to install, plug-and-play, and started up quickly.
-
Efficient Security, Multiple Protection
Armed with a multiple protection system, including leakage protection, overcurrent protection, undervoltage protection, overvoltage protection, short circuit protection and high temperature protection, the C-SPSS can guarantee the safety of users in operation.
-
Easy to Take, Comprehensive Protection
Equipped with CHASING advanced trolley case which is of protective structure at military police grade, light and portable, and convenient for storage.
Specifications
-

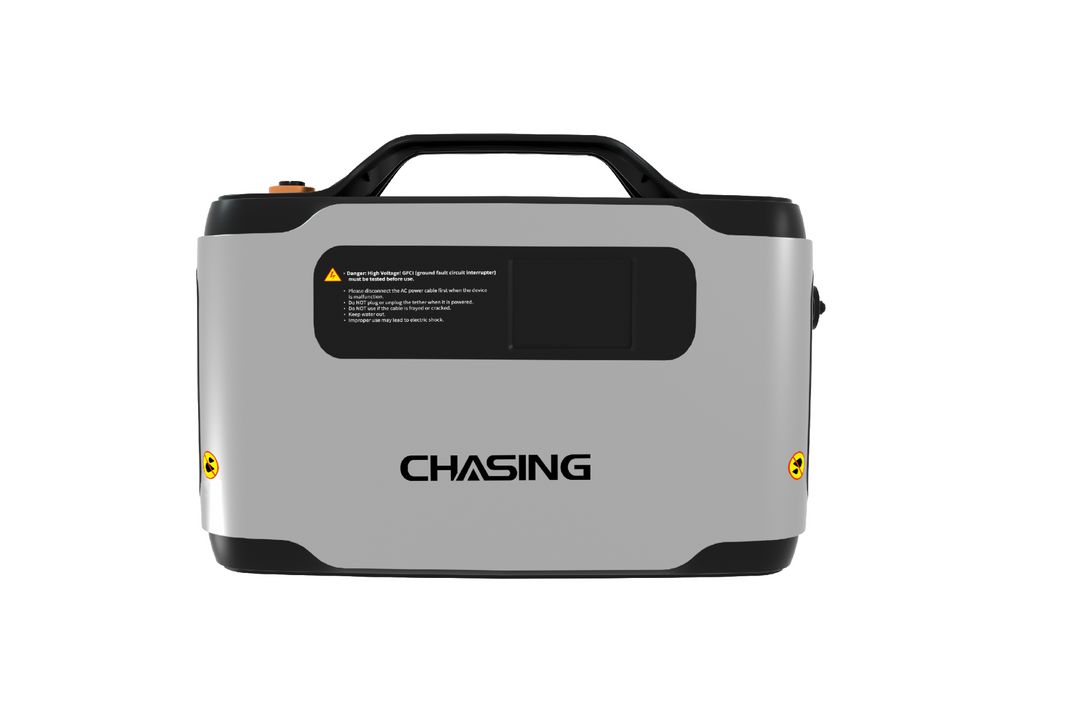

Power Supply Box
-
Size
- 230 x 315 x 118 mm
-
Weight
- 3.9kg
-
IP Level
- IP21
-
Operating Temperature
- -10℃ - +50℃
-
Moisture
- 5-95% of relative humidity, no condensation
-
LCD Screen
- Resolution: 320 x 240
- Size: 2.8 inch
- Resistive touch screen
-
Network Port Rate
- 10/100Mbps
-
Input Parameter
- 100-125VAC 50/60HZ, 15A MAX
- 200-240VAC 50/60HZ, 10A MAX
-
HV Port Output Parameter
- 490VDC, 2000W MAX@220V~
- 490VDC, 1500W MAX@110V~
-
RC Port Output Parameter
- 24VDC, 50W MAX
-
Efficiency
- ≥92%
-
-
HV Tether Cable
-
-

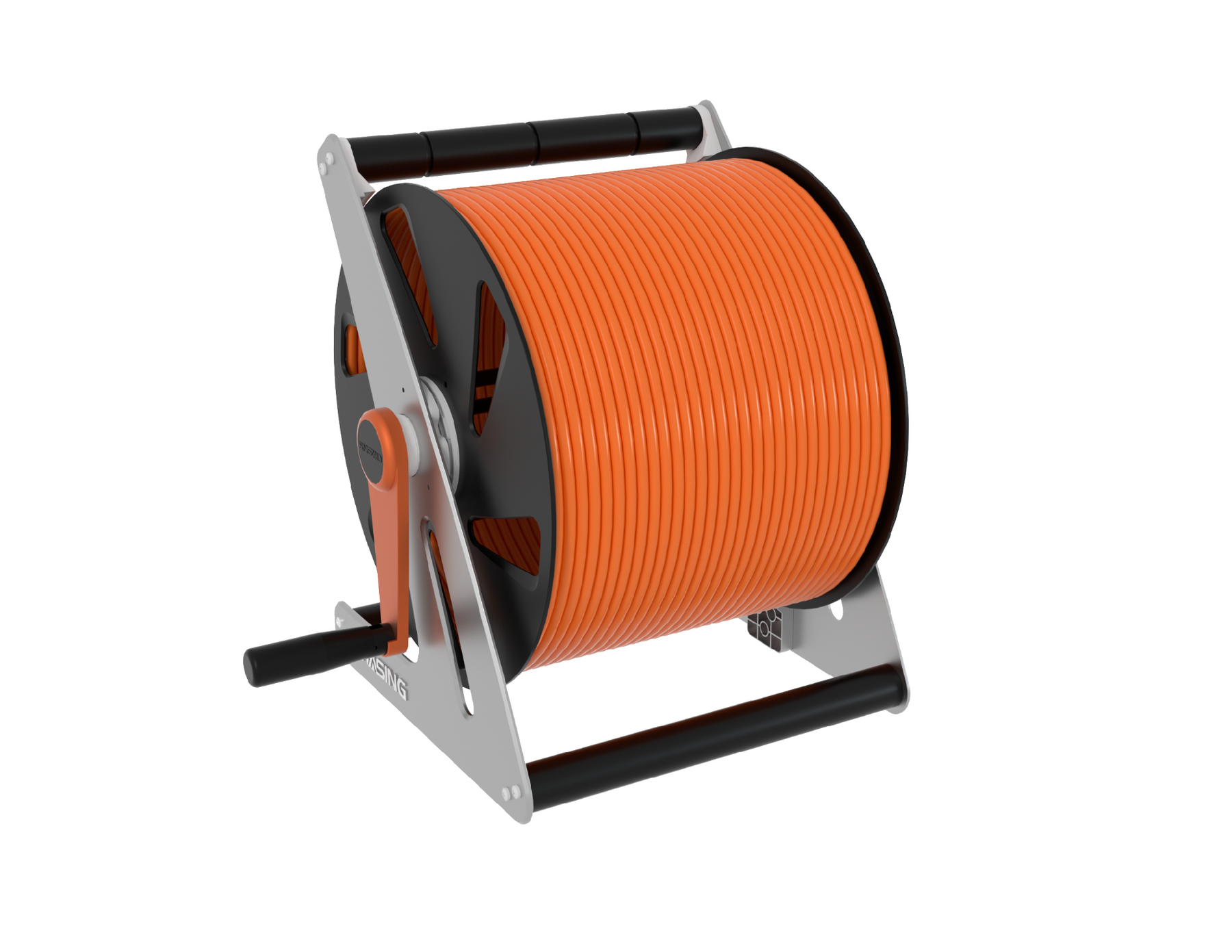

HV Reel
-
-

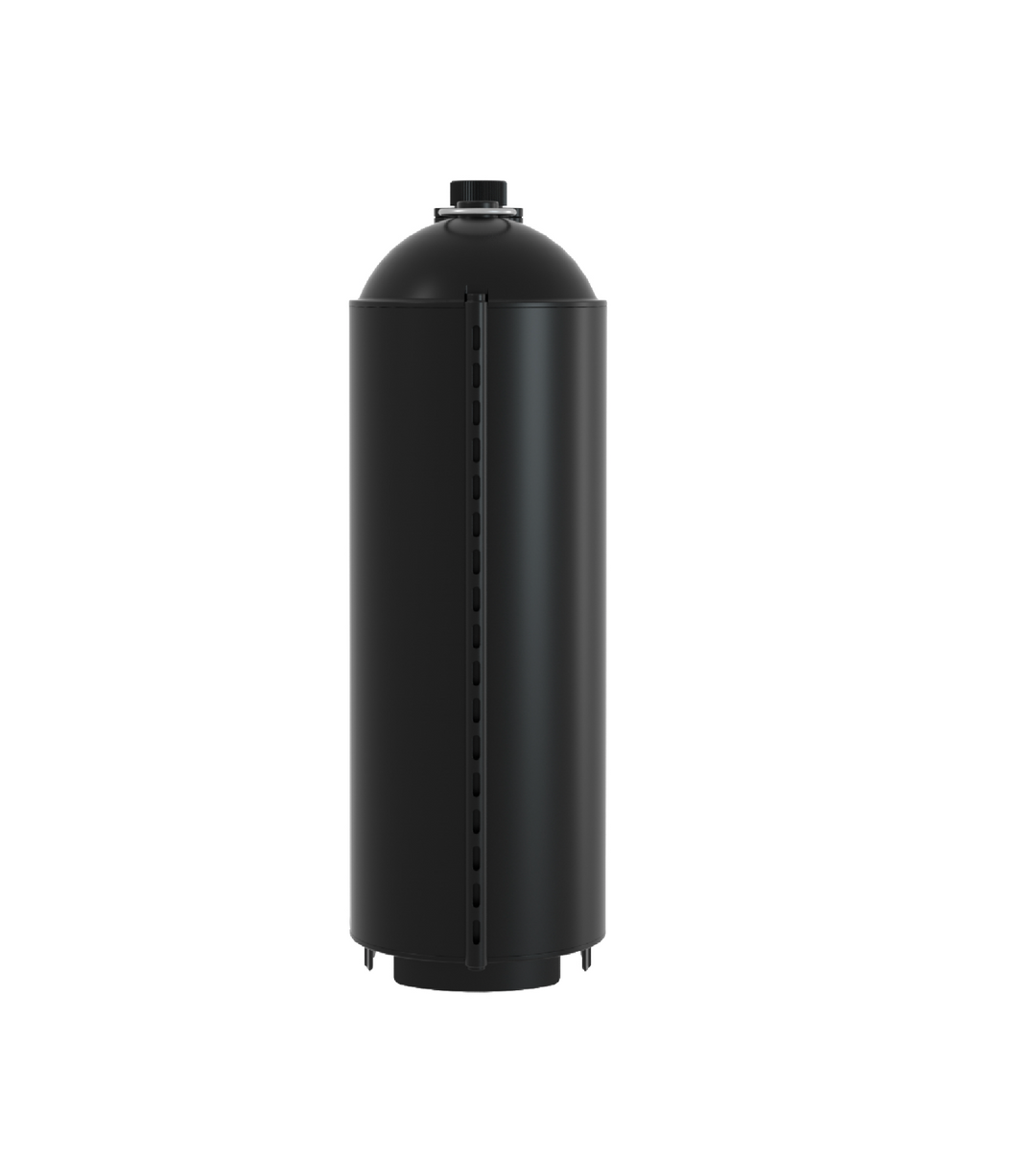

Power Supply Bin
-
What’s in the Box
-
Shore-based unit
×1
-
High-voltage reel
×1
-
ROV-based unit
×1
-
HV tether cable 5m
×1
-
RC tether cable 3m
×1
-
AC power cord 5m
×1
-
Insulating gloves
×1
-
Pull rod box
×1
-
O-ring
×4
-
Document package
×1
