This is a special order item — not currently in stock.
Special order items are reserved through our sales team. Submit the form below and a Maverick representative will reach out to confirm availability, lead time, and next steps to secure your unit. A deposit may be required to begin the order. Prefer to talk now? Call us at (612) 808-9838.
Model
Lead time varies by manufacturer. A deposit may apply and will be credited toward your final invoice.

The GeoCue TrueView 500 Series is a professional UAV LiDAR and imaging payload family spanning seven configurations across the TrueView 515, 535, 539, and 540 platforms. Available in Flex, Traditional, and vD Complete Kit form factors with APX v4 or TrueNAV GNSS/IMU options — all delivering survey-grade point clouds, integrated RGB imaging, and direct georeferencing. Software-inclusive configurations ship with TrueView Evo for end-to-end processing.

Seven Configurations. One Professional LiDAR Platform Family.
The TrueView 500 Series scales from the TrueView 515 vD Complete Kit at $61,000 to the TrueView 535 vD with APX v4 at $75,000 — covering the full range of professional airborne LiDAR requirements. Choose Flex for multi-platform deployment flexibility, Traditional for a complete turnkey system with software, or vD Complete Kit for a fully integrated solution with your choice of APX v4 or TrueNAV georeferencing. Every configuration delivers the survey-grade accuracy and GeoCue software ecosystem that professional geospatial teams rely on.

Flex & Traditional Form Factors — Flex configurations offer adaptable payload mounting for operators deploying across multiple UAV platforms. Traditional configurations deliver complete turnkey systems with TrueView Evo software included — from airborne capture to processed deliverables, no separate software procurement required.

APX v4 & TrueNAV GNSS/IMU Options — vD Complete Kit configurations are available with either Applanix APX v4 or GeoCue TrueNAV GNSS/IMU to match your direct georeferencing workflow, accuracy requirements, and existing infrastructure.

Survey-Grade Accuracy Across Every Mission — The TrueView 500 Series is engineered for topographic mapping, infrastructure inspection, corridor surveys, forestry analysis, and construction monitoring — delivering the point density, positional accuracy, and integrated imaging that professional geospatial workflows demand.

Learn More +

The GeoCue TrueView 500 Series is a professional-grade family of airborne LiDAR and imaging payloads engineered for survey, mapping, inspection, and geospatial data collection at scale. Spanning seven configurations across the TrueView 515, 535, 539, and 540 platforms — in both vD Complete Kit and Traditional form factors — the 500 Series delivers survey-grade point clouds, integrated RGB imaging, and direct georeferencing via onboard GNSS/IMU across a wide range of operational and budget requirements.

Flex configurations offer adaptable payload integration for operators deploying across multiple UAV platforms. Traditional configurations ship as complete turnkey systems with GeoCue's TrueView Evo processing software included. vD Complete Kit configurations are available with either APX v4 or TrueNAV GNSS/IMU options to match your georeferencing workflow and accuracy requirements.

Available Configurations:

  • TrueView 540 Flex w/1 Payload Interface — Flexible mounting for multi-platform deployment
  • TrueView 515 vD Complete Kit incl. Software (APX v4) — Full system with APX v4 GNSS/IMU and software
  • TrueView 515 vD Complete Kit incl. Software (TrueNAV) — Full system with TrueNAV GNSS/IMU and software

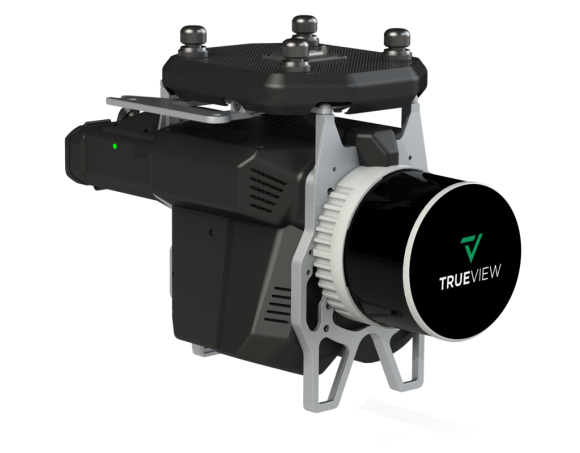

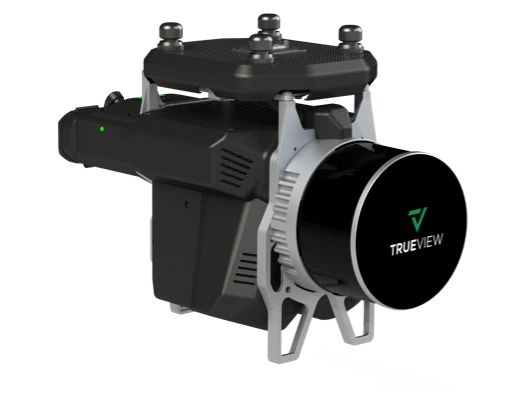

  • TrueView 535 vD Complete Kit incl. Software (APX v4) — High-density scanning with APX v4 and software
  • TrueView 535 vD Complete Kit incl. Software (TrueNAV) — High-density scanning with TrueNAV and software

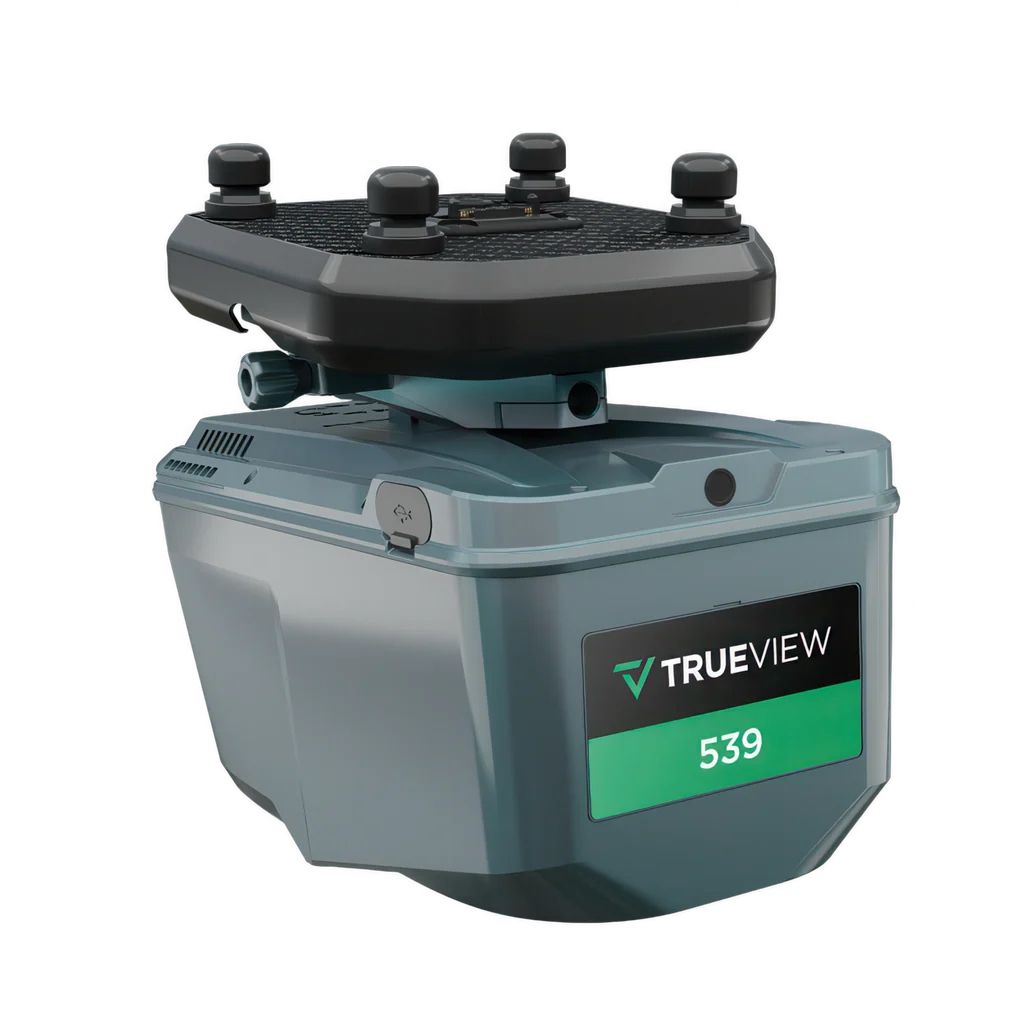

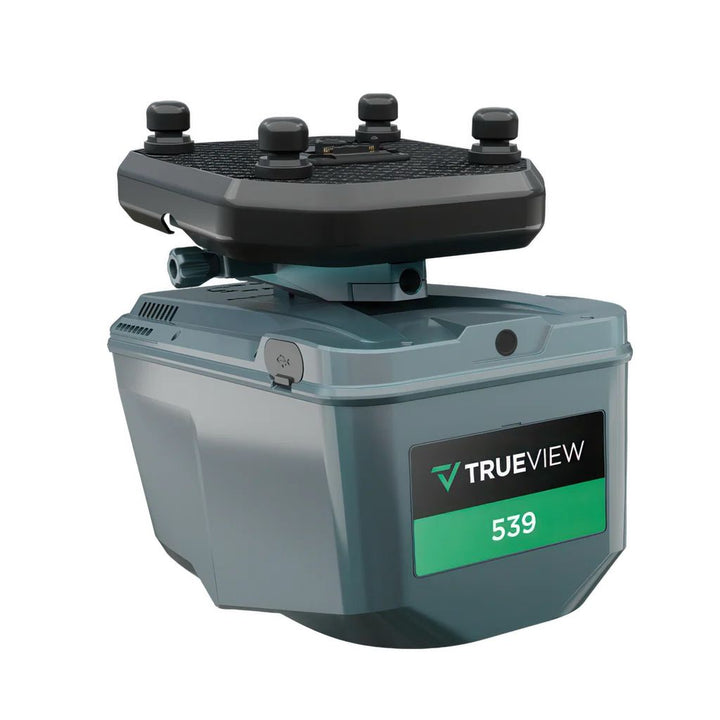

  • TrueView 539 Traditional incl. Software and 1 Payload Interface — Turnkey traditional system with software
  • TrueView 540 Traditional incl. Software and 1 Payload Interface — Premium traditional system with software

Key Capabilities:

  • Survey-grade LiDAR point acquisition across all configurations
  • Direct georeferencing via onboard GNSS/IMU — APX v4 or TrueNAV options available
  • Integrated RGB imaging for colorized point clouds and orthomosaics
  • Flex and Traditional form factors for operational flexibility
  • TrueView Evo software included with all software-bundle configurations
  • Compatible with leading enterprise UAV platforms
