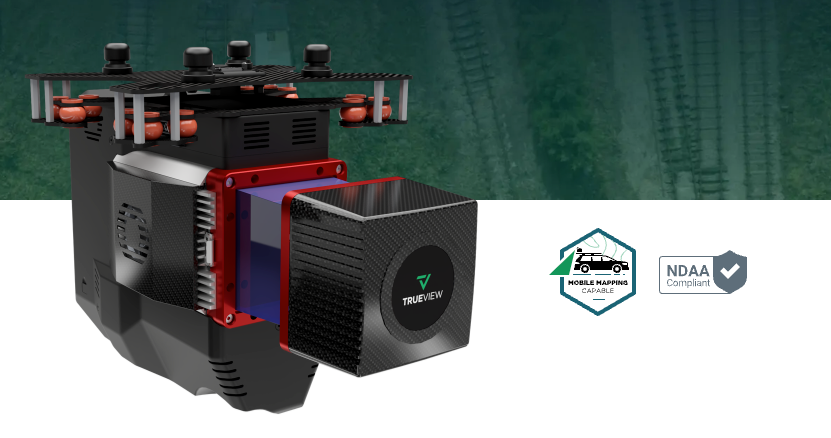

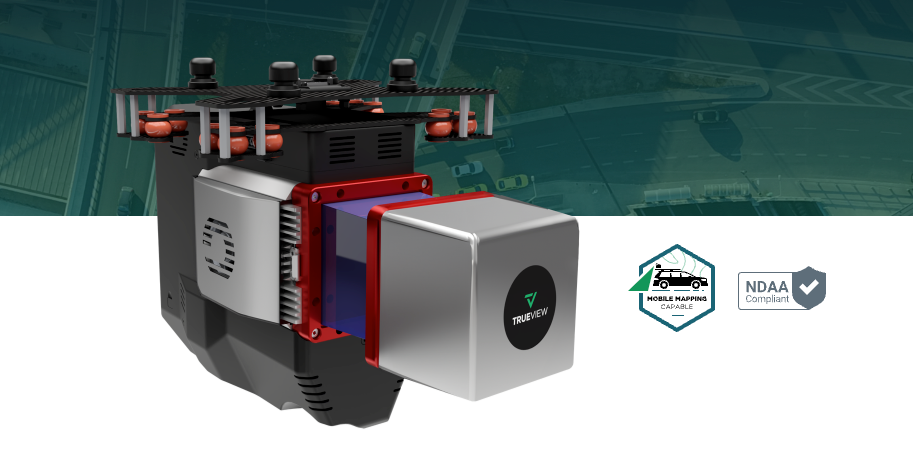

The GeoCue TrueView 600 Series is an enterprise-grade family of airborne LiDAR and imaging payloads engineered for the most demanding professional survey, mapping, inspection, and geospatial data collection workflows. Spanning six configurations across the TrueView 641, 651, 655, 660, 680, and 680LR platforms, the 600 Series delivers high-density point clouds, integrated RGB imaging, and direct georeferencing at the highest performance tier in the TrueView lineup.
All configurations are Traditional form factor systems that ship complete with perpetual LP360 Drone processing software, including the Strip Align, Photo and 3D Accuracy add-ons (the 651, 655, 660, 680 and 680LR also include unlimited Trimble PP-RTX post-processing) — providing a fully integrated end-to-end workflow from airborne data capture to classified, georeferenced point cloud deliverables. The TrueView 651 includes Applanix APX-20 GNSS/IMU for enhanced direct georeferencing performance. vB Complete Kit configurations (655 and 660) deliver fully integrated systems with advanced imaging and processing capabilities for the highest-fidelity deliverables.
Available Configurations:
- TrueView 641 Traditional incl. Software — Entry-level 600 Series with LP360 Drone software
- TrueView 651 Traditional incl. Software (APX-20) — Enhanced direct georeferencing with Applanix APX-20 GNSS/IMU
- TrueView 655 vB Traditional Complete Kit incl. Software — Fully integrated vB system with advanced imaging and software
- TrueView 660 vB Traditional Complete Kit incl. Software — High-performance vB system for maximum point density and imaging fidelity

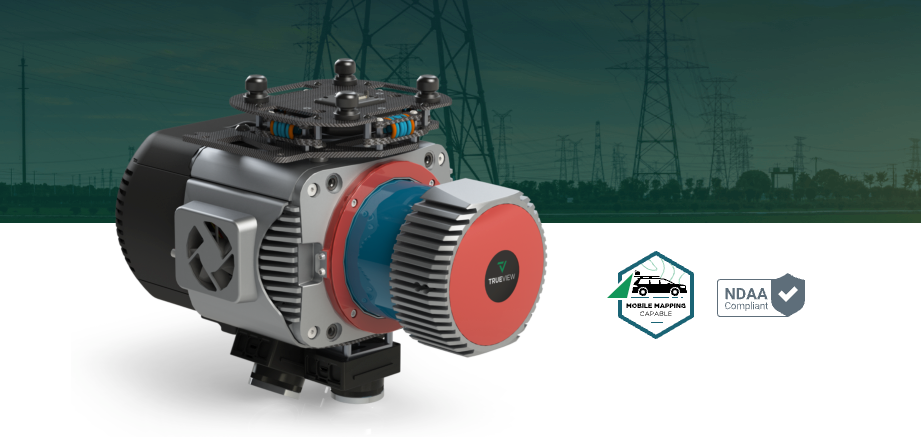

- TrueView 680 Traditional incl. Software — RIEGL VUX-1UAV-22 scanner, 360° FOV, three 20MP cameras, unlimited PP-RTX
- TrueView 680LR Traditional incl. Software — RIEGL VUX-1LR-22 scanner for longer range and higher point density, three 20MP cameras, unlimited PP-RTX
Key Capabilities:
- High-density LiDAR point acquisition for enterprise-grade survey and mapping
- Direct georeferencing via onboard GNSS/IMU — APX-20 option available
- Integrated RGB imaging for colorized point clouds and orthomosaics (vB configurations)
- LP360 Drone processing software included across all configurations
- TrueView 680 and 680LR are NDAA-compliant and can be upgraded for dual-purpose drone and mobile mapping
- Part of GeoCue's NDAA-range payload family
TrueView 680 and 680LR Specifications (per GeoCue):
| Data collection | LiDAR and imagery |
| LiDAR scanner | 680: RIEGL VUX-1UAV-22 | 680LR: RIEGL VUX-1LR-22 |
| Laser returns | Up to 15 |
| Positioning and orientation | Applanix APX-20 |
| Pulse repetition rate | 680: 800 kHz @ 120 m | 680LR: 1500 kHz @ 120 m |
| Scanner performance | 680: precision 5 mm, accuracy 10 mm | 680LR: precision 5 mm, accuracy 15 mm |
| GNSS/INS performance | Position 20–50 mm; 0.015° roll/pitch, 0.035° heading |
| System performance | Typical 10 mm precision on one strip (under 10 mm 1σ at 80 m on concrete); typical 3 cm RMSE, better than 5 cm 3D RMSE depending on GNSS conditions and control |
| Cameras | 3x Sony IMX-183, 1-inch, 20MP RGB (60MP per payload) |
| Mass | 4.97 kg (payload unit only) |
| Post-processing | Unlimited Trimble PP-RTX; mandatory yearly maintenance fee from year 2 |
