A gamma-ray spectrometer (GRS) is a scientific instrument designed to measure and analyze the energy and intensity of gamma rays emitted by radioactive substances. Gamma rays are high-energy electromagnetic radiation, and their specific energies are unique to the elements emitting them, making gamma-ray spectrometers essential tools in many fields.

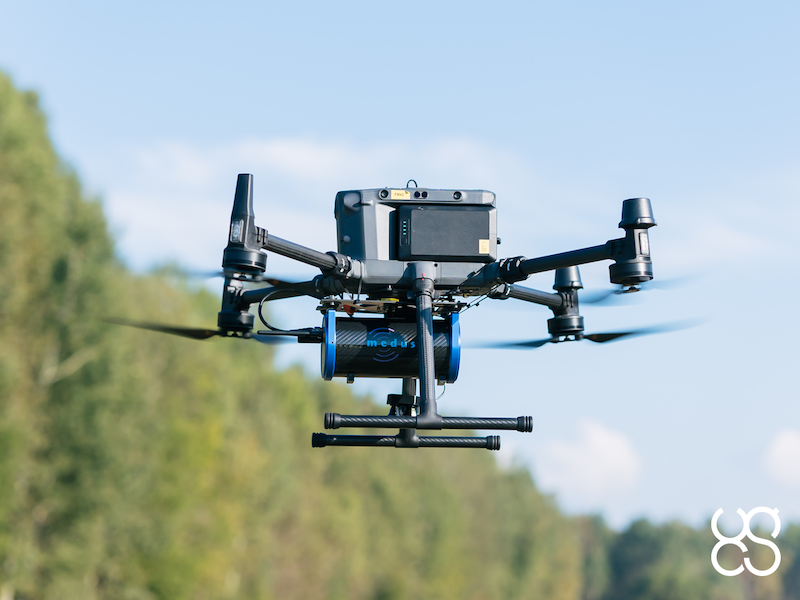

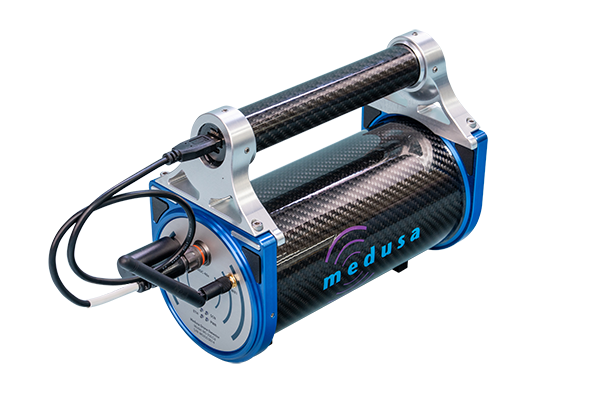

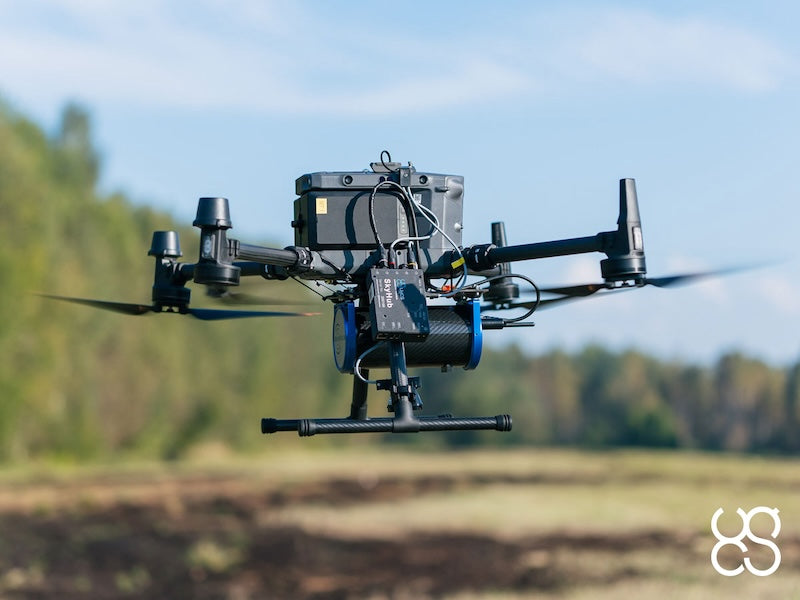

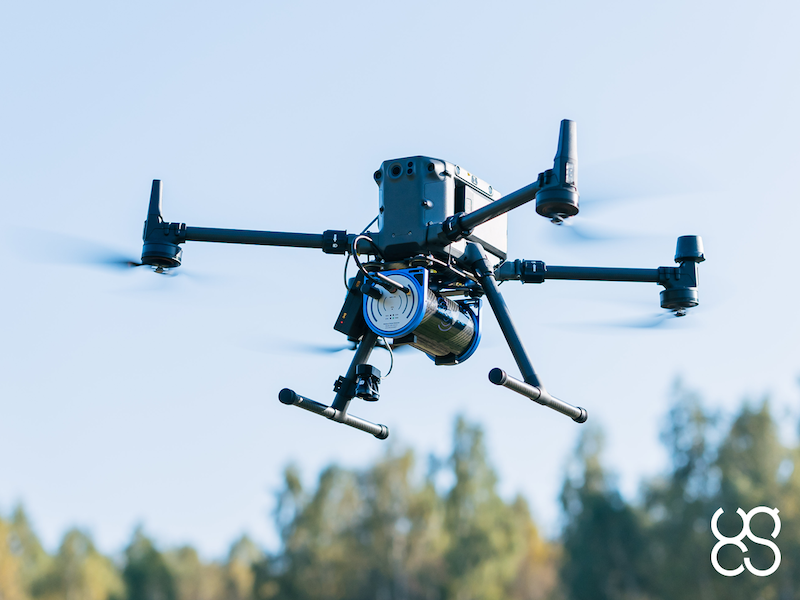

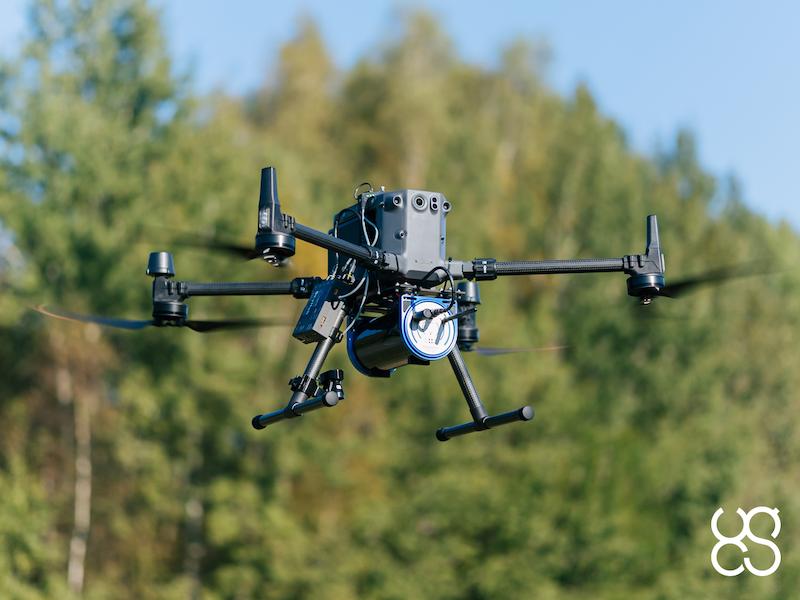

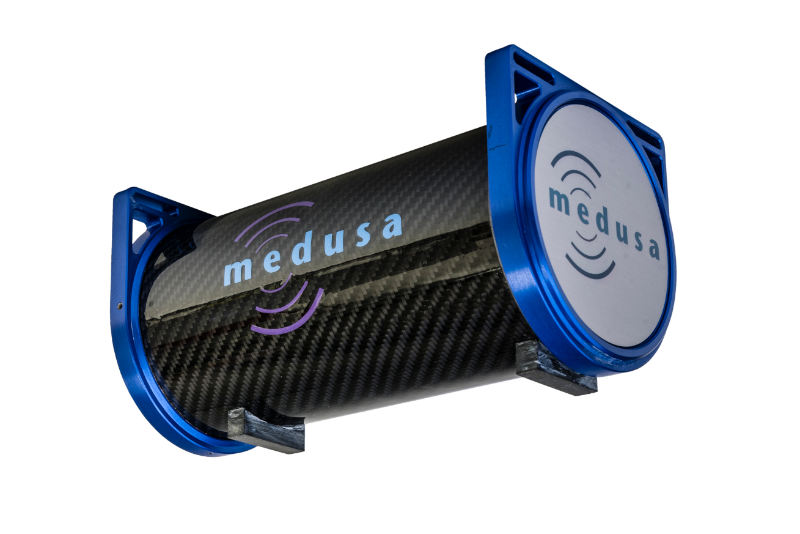

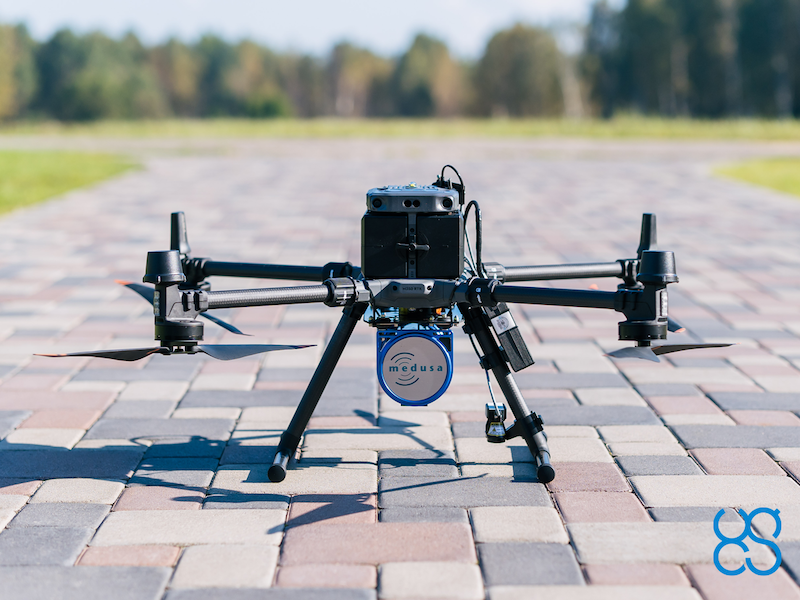

The Medusa Radiometrics MS-350 is a well-balanced sensor suitable for a variety of applications, yet compact and lightweight enough to be mounted on most popular drones such as the DJI M400, M350/300 RTK or Inspired Flight IF800, as well as other drones with comparable payload capacities.
Recommended applications:
- Soils and sediments mapping
- Contamination mapping
- Minerals exploration
- Mine sites remediation
Includes a transportation box and mountings for the DJI M400, M350/300 RTK drone. Mounts for other types of drones are available upon request.
HS Code: 90301000 (instruments and apparatus for measuring or detecting ionizing radiations)
Please note that additional components and software must be ordered to use gamma-ray spectrometer with drones. It is recommended to order a complete set. Please ask for the quote.
| Scintillation crystal | 350 ml Csl | |
| Mapping speeds | Up to 15 km/h | |
| Recording frequency | Up to 5hz | |
| Online Radionuclide analysis | 40K, 238U, 232Th and 137Cs | |
| Data | ||
| Format | JSON, NMEA, CSV | |
| Streaming | RS-232, Ethernet and Wi-Fi | |
| Internal storage | 16 GB (up to 500 hours of the recording) | |
| Connectivity | ||
| Wi-Fi | 2.4 and 5 GHz | |
| Ethernet | 100 Mbps | |
| Serial | RS-232 | |
| DOCUMENTATION & DATA SETS | ||
| Data Sheet | >> MS-350 datasheet | |
| User Manual(s) | >> Documentations Site | |
| Data Samples | >> MS-350 public data sets | |
| ENVIRONMENTAL | ||
| Operating temperature | -20 to +65 °C | |
| Ingress protection | IP65 | |
| MECHANICAL | ||
| Sensor dimensions & weight | 100 (⌀) x 215(L) mm 2.7 kg |
|
| Packaging dimensions & weight | 42 cm X 50 cm X 23 cm 6 kg |
|
| BATTERY | ||
| Input voltage | 5-35V | |
| Power consumption | 3W (avg), 6W (max) | |
| Airborne variant | Drone main battery is used to provide power | |
| Ground surveys | Up to 8 hours | |
| WHAT’S IN THE KIT | ||
|
||
