Overview

The ZH480-mini Corona Detection Bundle combines the compact ZH480-mini dual-spectrum imaging payload with a DJI Matrice 4 Series drone, additional Intelligent Flight Batteries, and a 100W charging hub. The ZH480-mini fuses a high-resolution UV sensor with a 4K RGB camera to detect early-stage corona discharge and capture visual context in a single pass, while the Matrice 4 Series platform, available as the thermal-equipped M4T or the survey-focused M4E, provides the flight time and transmission range to cover demanding inspection routes. Extra batteries and the charging hub keep crews flying longer with fewer interruptions.

One Matched System for Power Line Inspection

Corona discharge inspection demands a camera, an airframe, and enough power to cover a full day in the field, all working together without compatibility surprises. The ZH480-mini Corona Detection Bundle brings the UV+VIS imaging payload together with a DJI Matrice 4 Series drone, additional Intelligent Flight Batteries, and a 100W charging hub, so your team can fly a full inspection route the day the bundle arrives.

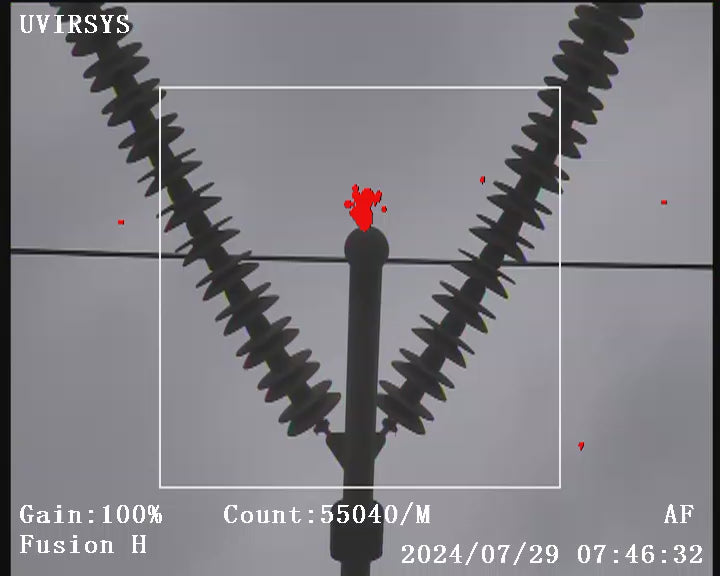

Dual-Spectrum Corona Detection: The ZH480-mini pairs a 1080P UV sensor with a 4K RGB camera to catch invisible corona discharge and document it visually in the same flight, at a sensitivity of 1.0 pc from 15 meters away.

Matched Matrice 4 Series Platform: Choose the M4T for thermal-equipped public safety and energy inspection missions, or the M4E for survey and photogrammetry work, both offering up to 49 minutes of flight time and 25 km (FCC) transmission range.

Extended Field Power: Additional 99 Wh Intelligent Flight Batteries and a 100W charging hub, capable of charging up to four batteries sequentially in Standard or Ready-to-Fly mode, keep inspection crews flying through a full day in the field.

Learn More +

Complete Airborne Corona Detection, Ready for the Matrice 4 Series. The ZH480-mini Bundle.

The ZH480-mini Corona Detection Bundle pairs the compact ZH480-mini UV+VIS imaging payload with a DJI Matrice 4 Series drone, additional Intelligent Flight Batteries, and a 100W charging hub, giving power line and substation inspection teams a matched, ready-to-fly system instead of a list of parts to source separately. Choose the Matrice 4T for thermal-equipped inspection missions or the Matrice 4E for survey-focused work, and fly with confidence that every component was selected to work together.

Key Specifications

ZH480-mini UV+VIS Payload — 1080P UV resolution, 4K RGB sensor, 1.0 pc UV sensitivity at 15m, 20° × 15° field of view, 300g weight
DJI Matrice 4 Series Platform — Compact enterprise drone, up to 49 minutes flight time, 25 km (FCC) transmission range, O4 Enterprise transmission
Additional Intelligent Flight Batteries — 99 Wh high-capacity batteries for extended inspection days with fewer swaps
100W Battery Charging Hub — Charges up to four Matrice 4 Series batteries sequentially, with Standard and Ready-to-Fly charging modes

Full Specifications

Corona Camera	ZH480-mini (UV 1080P / RGB 4K)
UV Sensitivity	1.0 pc @ 15m
Camera Field of View	20° × 15°
Camera Weight	300g
Drone Platform	DJI Matrice 4E or DJI Matrice 4T (Universal Edition)
Drone Flight Time	49 minutes
Transmission Range	25 km (FCC)
Battery Capacity	99 Wh per Intelligent Flight Battery
Charging Hub	100W, charges up to 4 batteries sequentially

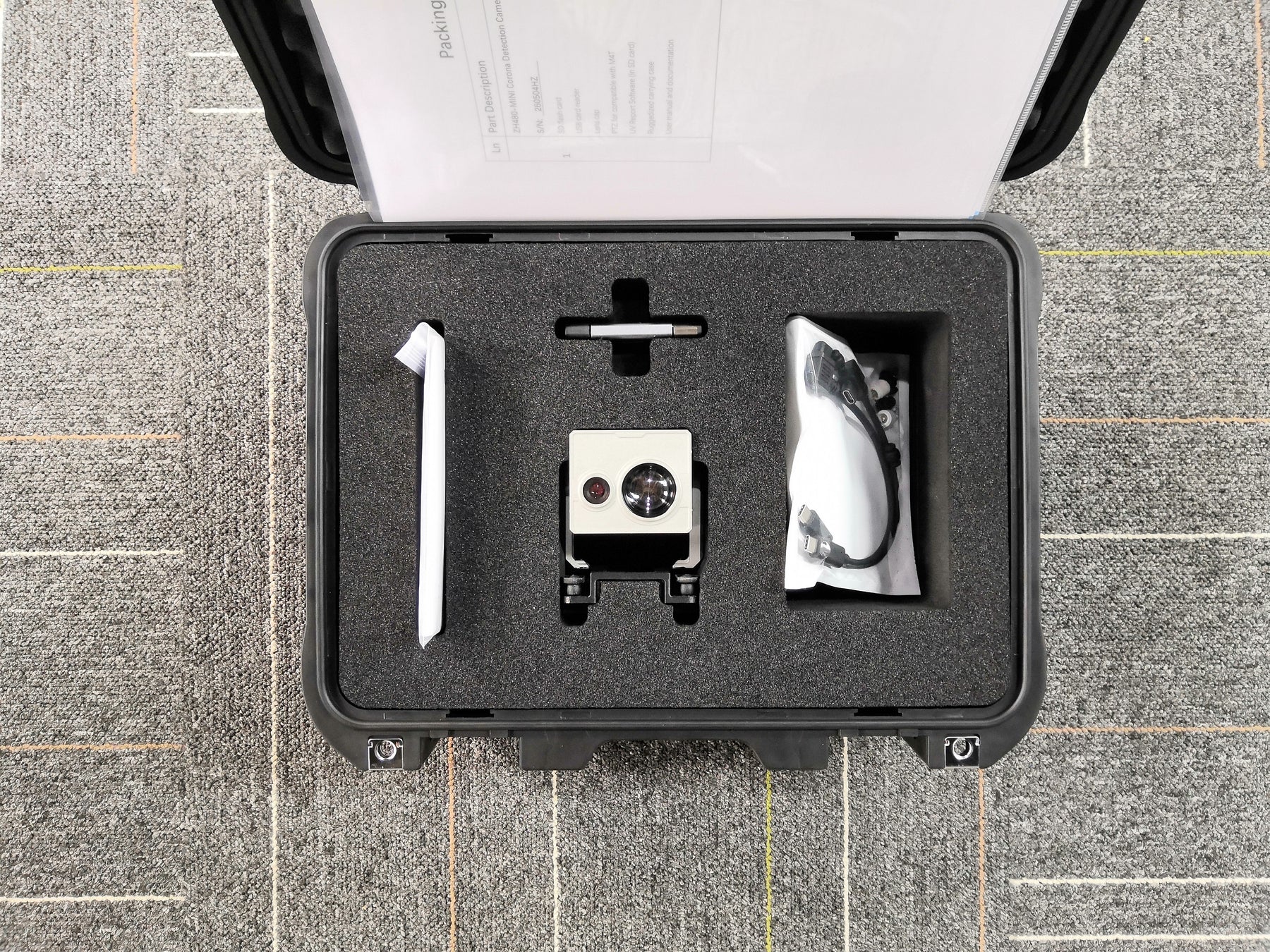

In the Box

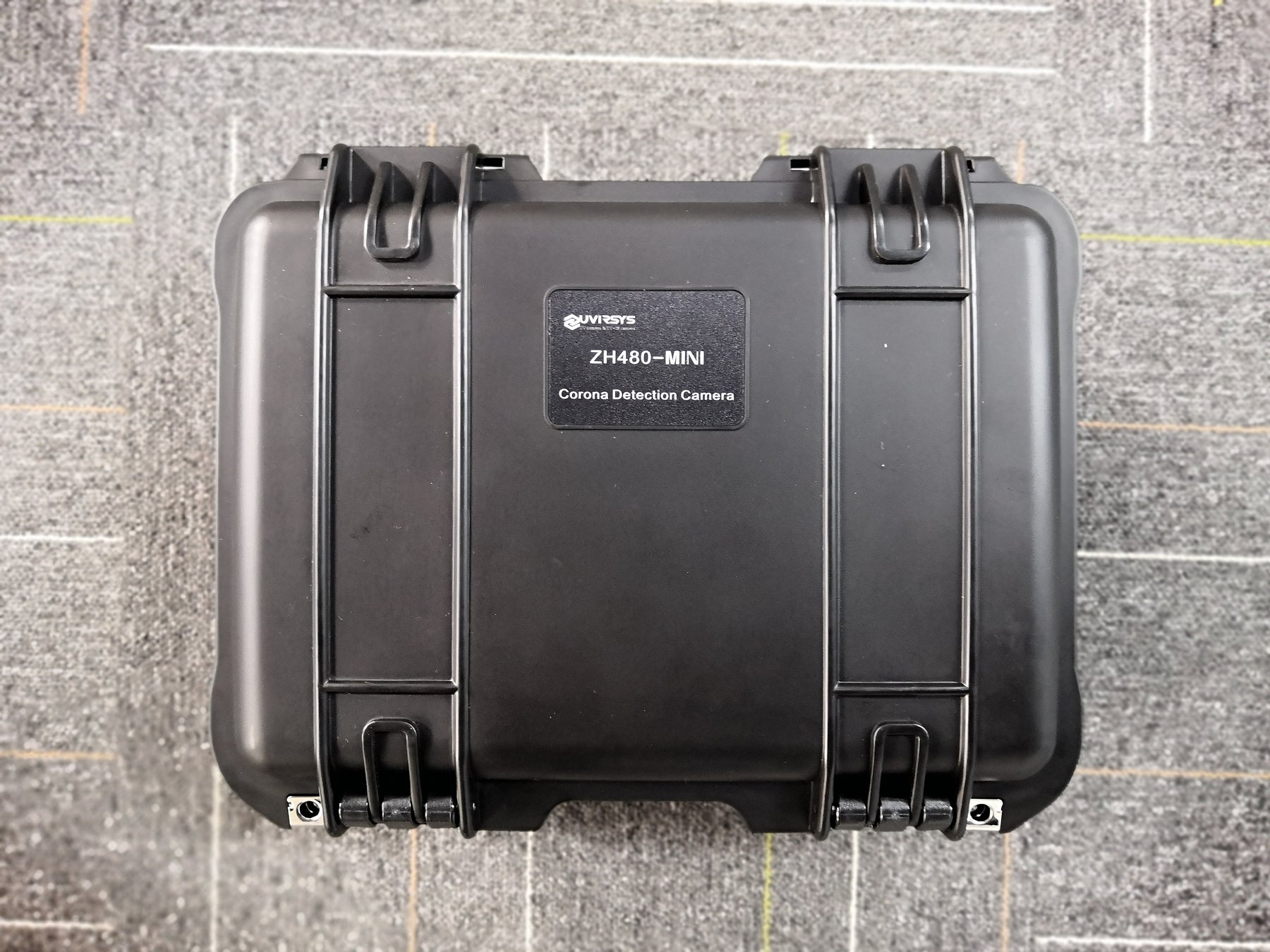

ZH480-mini Corona Detection Imaging System × 1
DJI Matrice 4 Series drone × 1 (selected version: M4E or M4T)
Additional DJI Matrice 4 Series Intelligent Flight Batteries
DJI Matrice 4 Series Battery Charging Hub (100W) × 1
