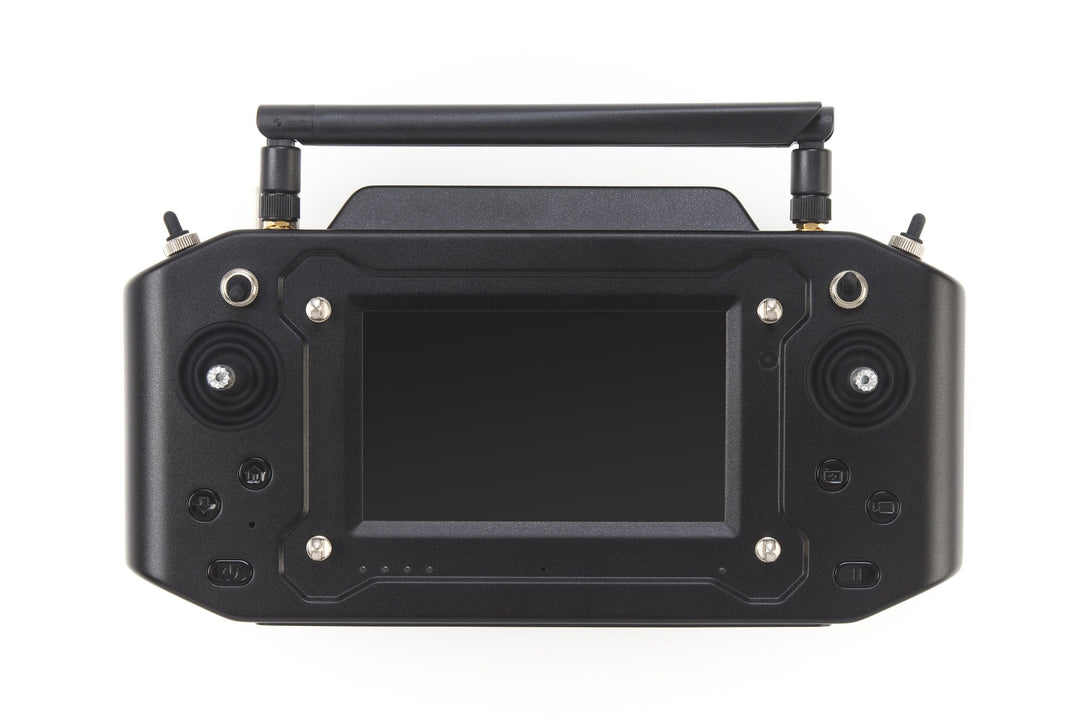

ACSL TENSO smart controller for the SOTEN drone

ACSL TENSO Smart Controller for SOTEN

This is a special order item — not currently in stock.
Special order items are reserved through our sales team. Submit the form below and a Maverick representative will reach out to confirm availability, lead time, and next steps to secure your unit. A deposit may be required to begin the order. Prefer to talk now? Call us at (612) 808-9838.
Lead time varies by manufacturer. A deposit may apply and will be credited toward your final invoice.

The ACSL TENSO Smart Controller is an industrial-grade command center for the ACSL SOTEN, fully integrated with the ACSL TAKEOFF ground control application. A rugged IP43 body and a 5-inch high-brightness display put flight data and imagery in the pilot's hands without an external mobile device.

Purpose-Built for SOTEN.
TENSO runs the ACSL TAKEOFF app natively with dedicated flight, camera and safety controls, so pilots do not rely on a separate phone or tablet.

Rugged. IP43-rated body and 1000-nit screen.

Connected. Wi-Fi and LTE with AES256 encrypted communication.

Dedicated Controls. Physical buttons for key flight and payload functions.

Learn More +

The ACSL TENSO Smart Controller is an industrial-grade command center for the ACSL SOTEN, fully integrated with the ACSL TAKEOFF ground control application. A rugged IP43 body and a 5-inch high-brightness display put flight data and imagery in the pilot's hands without an external mobile device.

Key Specifications

  • Display: 5 inch, 1920 x 1080, 1000 nits
  • Rating: IP43; NDAA-compliant; AES256 encrypted communication
  • Radio: 2.4 GHz; operating range 2.5 miles without obstruction or interference; Wi-Fi and LTE
  • Runtime: about 3 hours, extendable by powering through USB-C
  • Weight 2.3 lb; dimensions 10.6 x 6.5 x 2.7 in; GNSS, light sensor, microphone
  • Ports: USB-C, USB-A 2.0, HDMI, microSD, SIM card, Ethernet, 3.5 mm audio, tripod mount; Remote ID compliant
  • Dedicated buttons for photo, video, go-home, auto-landing, pause/resume, emergency stop and collision avoidance on/off

What's Included

  • ACSL TENSO smart controller

Good to Know

  • Aircraft, camera and batteries are sold separately. Looking for a larger, brighter 7-inch display? See the ACSL TAITEN controller.

Maverick is an authorized ACSL dealer. Specifications are from ACSL published documents (acsl-usa.com, product.acsl.co.jp) and may change without notice.

Questions or need a quote? Call Maverick at 612.808.9838 or email support@maverickdrone.com.
