CRA01

Regular price$ 399.00
/
Shipping calculated at checkout.
Supplier: Chasing

  • Low stock - 6 items left
  • Backordered, shipping soon

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

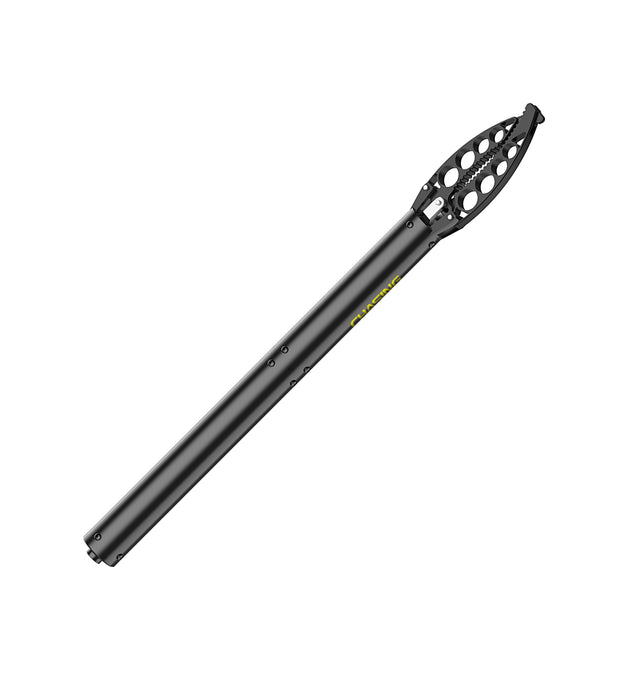

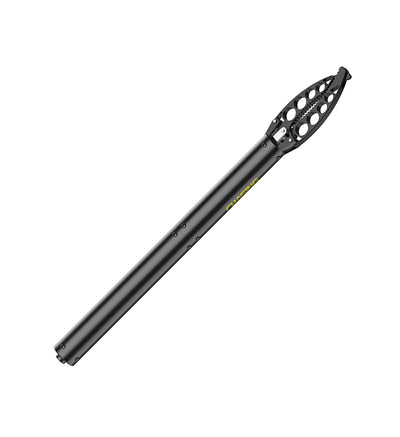

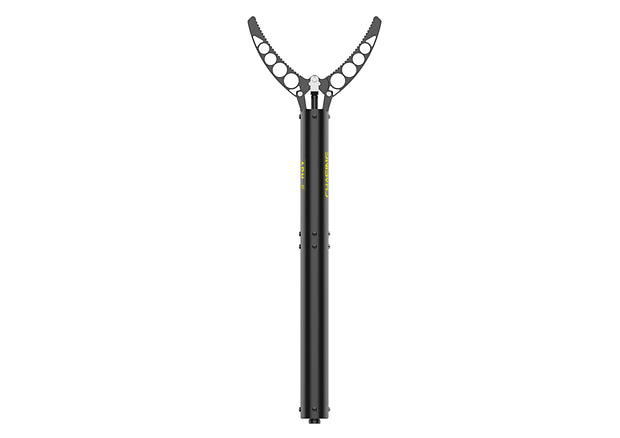

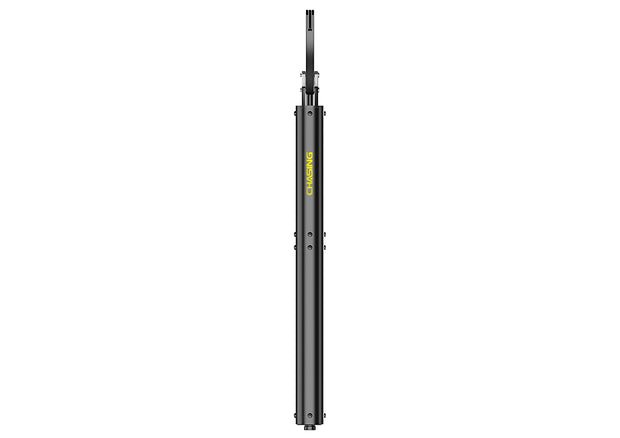

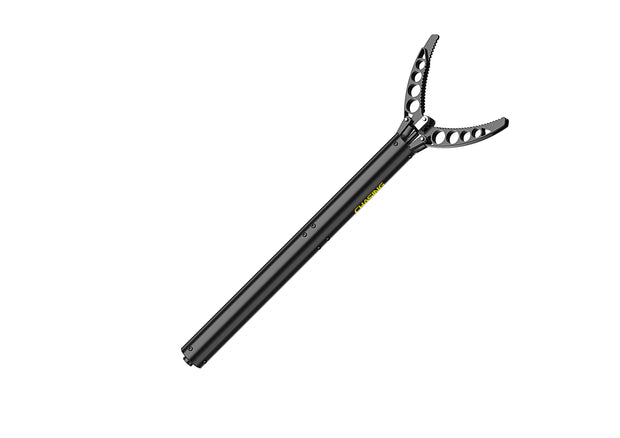

CHASING Grabber Claw

CHASING Grabber Claw is small and easy to install. The maximum drag force is 12 kg and the force is adjustable. It is suitable for multiple uses such as sampling detection.

6kg Clamping Force, 12kg Drag Force

With maximum 6kg clamping force and 12kg drag force, the grabber claw can easily complete underwater operations. Adjust different forces on the App to avoid damage to the clamped items.

Smooth Experience and Powerful Functions

With a 120mm opening and closing distance and a 2.8-second single opening and closing time, the grabber claw operates smoothly and can grab a variety of items.

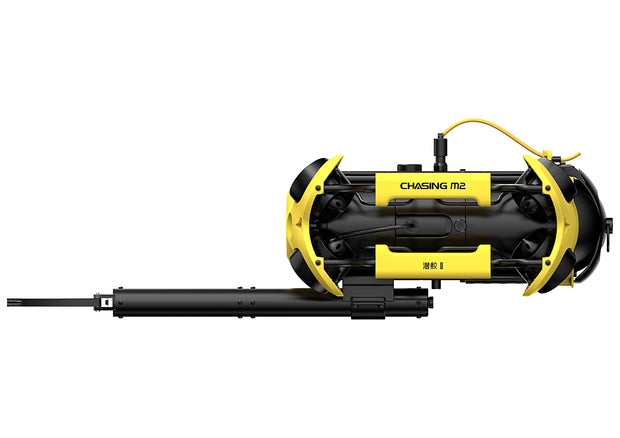

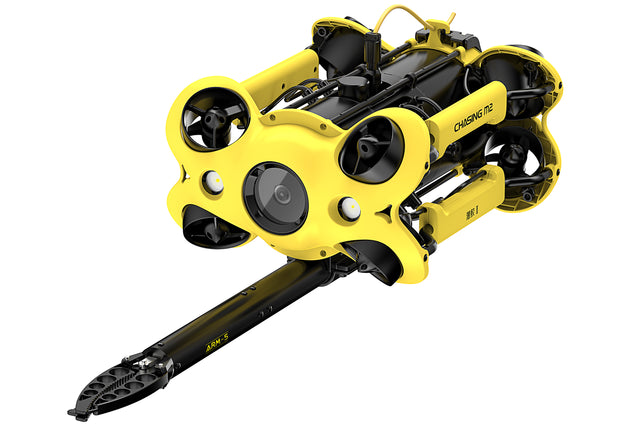

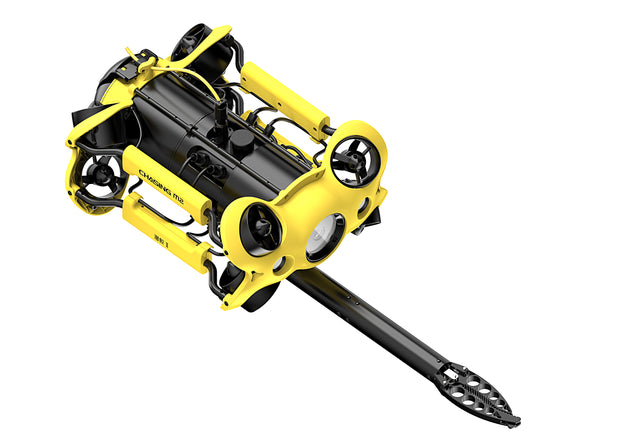

10° Elevation Angle on Holder, Improving the Vision Intergrity

The holder increases the angle between the grabber claw and the underwater drone by 10°, avoiding the obstruction of the view and enhancing the experience of the operation effectively.

Aluminum Alloy Material, Compact Size

Aluminum alloy material, using 4-core watertight connector of underwater drone, length 460mm, diameter 33.5mm, compact and portable.

Grabber Claw Specifications

  • Size: 460 x 33.5 mm
  • Weight: 370g
  • Weight in Water: 50g
  • Max Grasping Force: 6kg
  • Max Drag Force: 12kg
  • Opening and Closing Distance: 120mm
  • Max Depth: 100 meters
  • Single Opening / Closing Time: 2.8s
